Subwoofer Amplifier: Notes

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

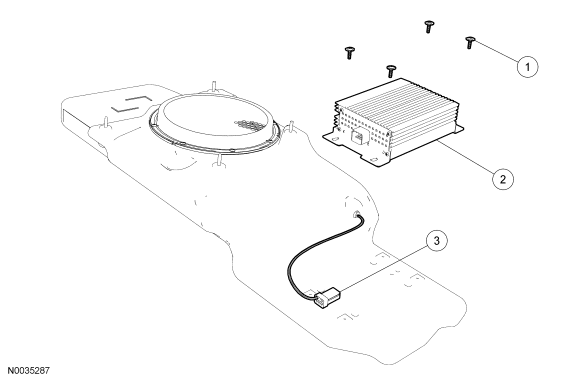

Fig 1: Identifying Subwoofer Amplifier Components
GF0019077Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Subwoofer amplifier screws (4 required)
2 18C808 Subwoofer amplifier
3 - Subwoofer amplifier electrical connector (part of 14A005)
