Control Assembly: Installation

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When the battery (10655) is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.

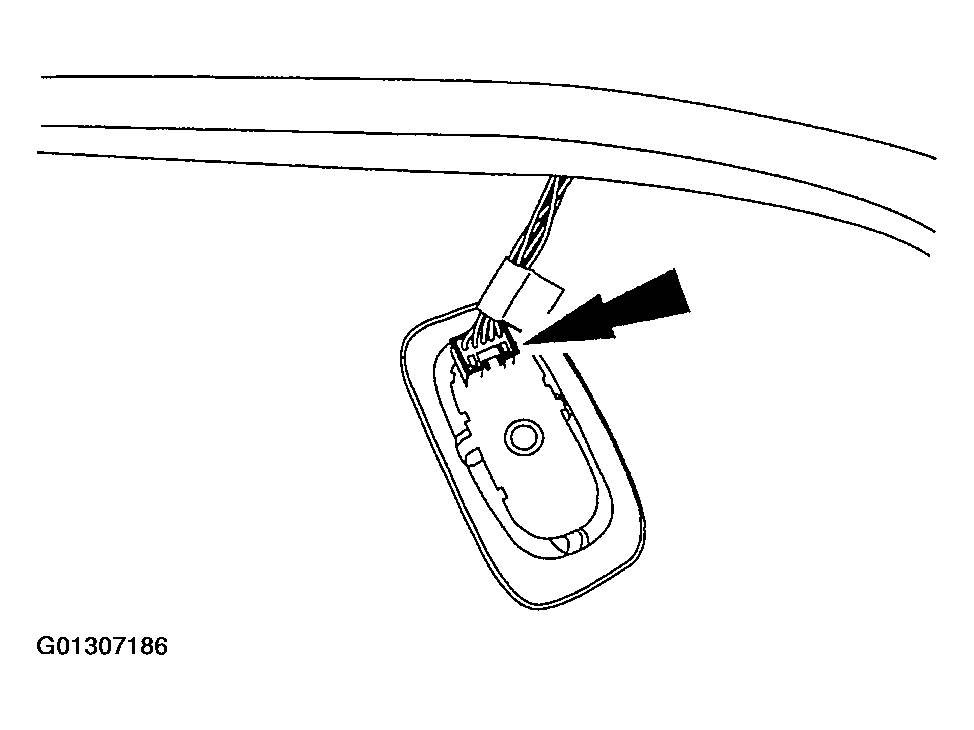

Fig 1: Connecting Electrical Connector

Courtesy of FORD MOTOR CO.

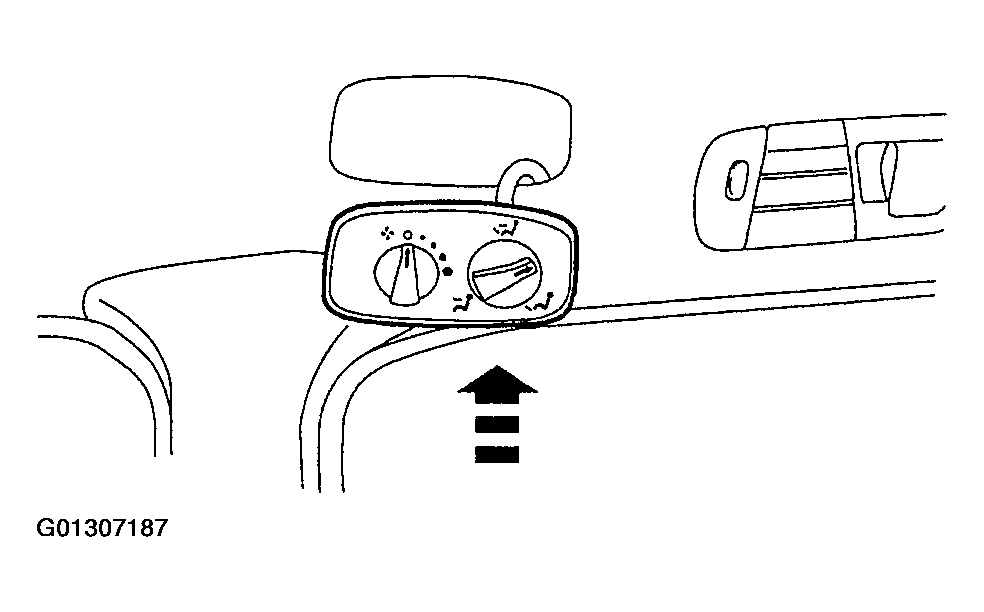

Fig 2: Installing Control Head To Headliner

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
