Control Assembly: Removal

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery.

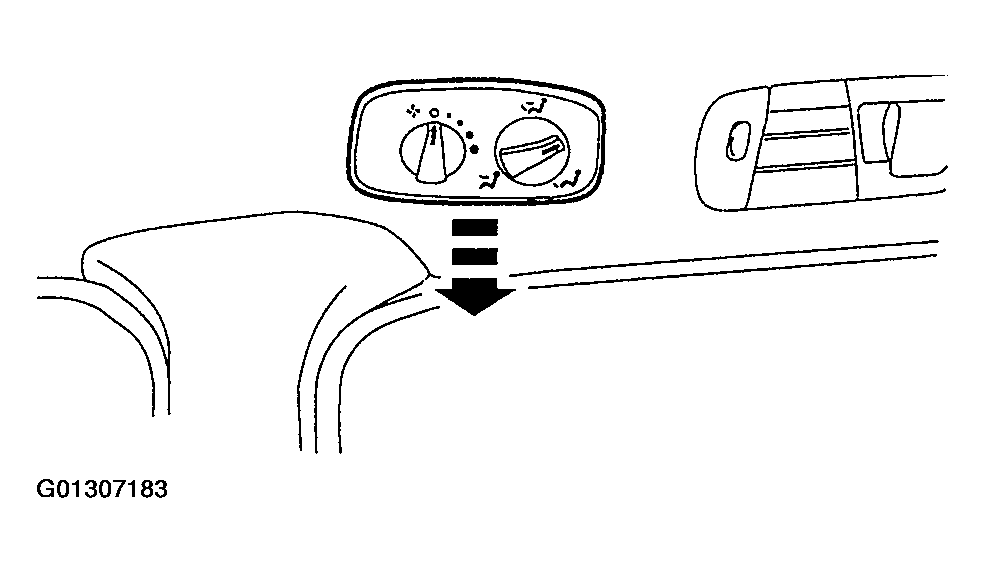

Firmly pull down on the control head to release the locks.

Fig 1: Disconnecting Control Head
Courtesy of FORD MOTOR CO.

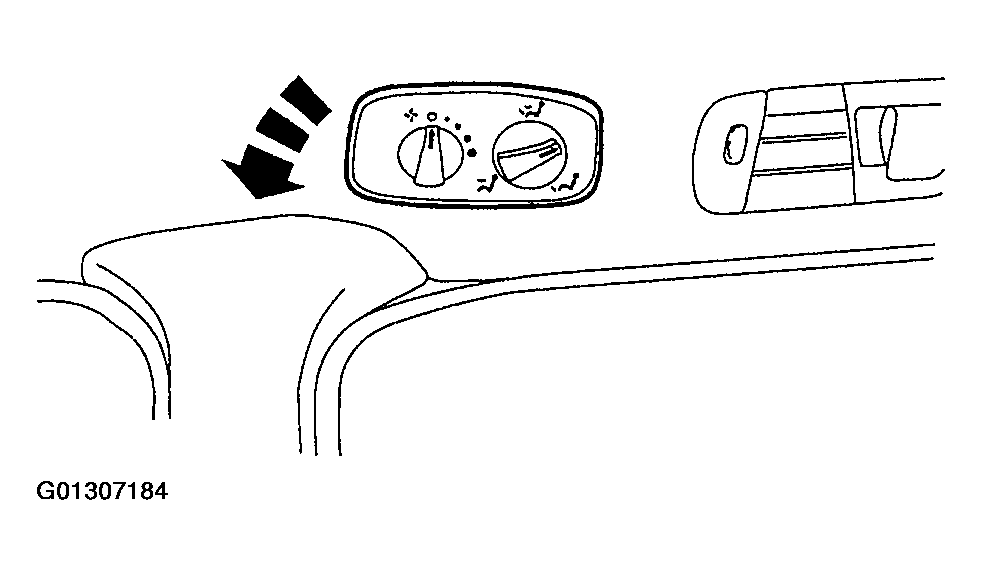

Roll the control head out of the headliner.

Fig 2: Rolling Control Head Out Of Headliner
Courtesy of FORD MOTOR CO.

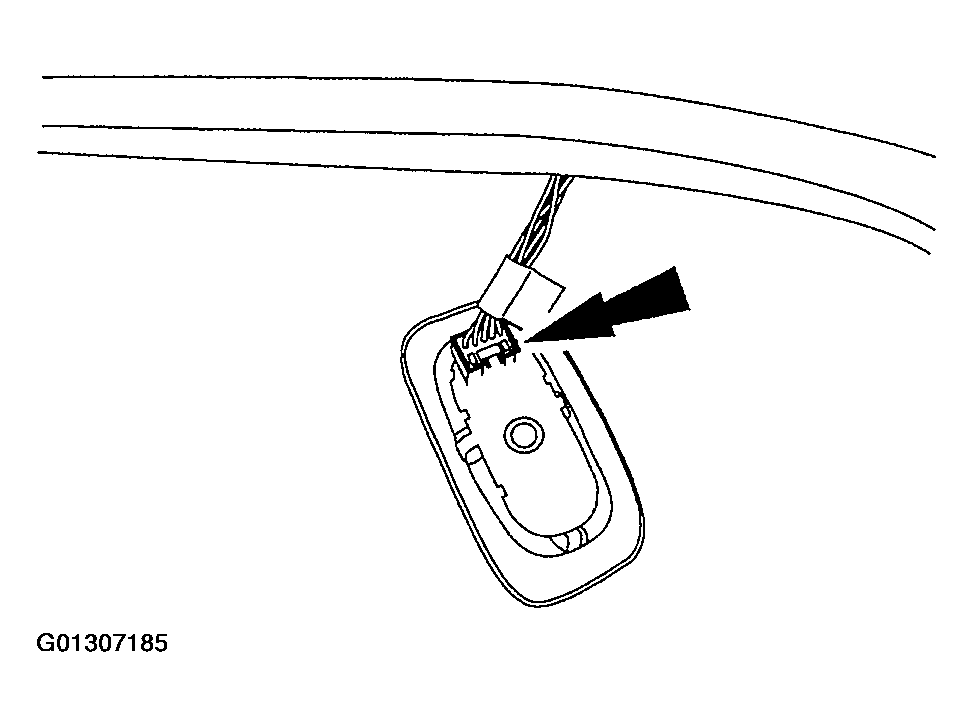

Disconnect the electrical connector.

Fig 3: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
