Pinpoint Test B: No Communication With The Module - Rear Electronic Module
WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

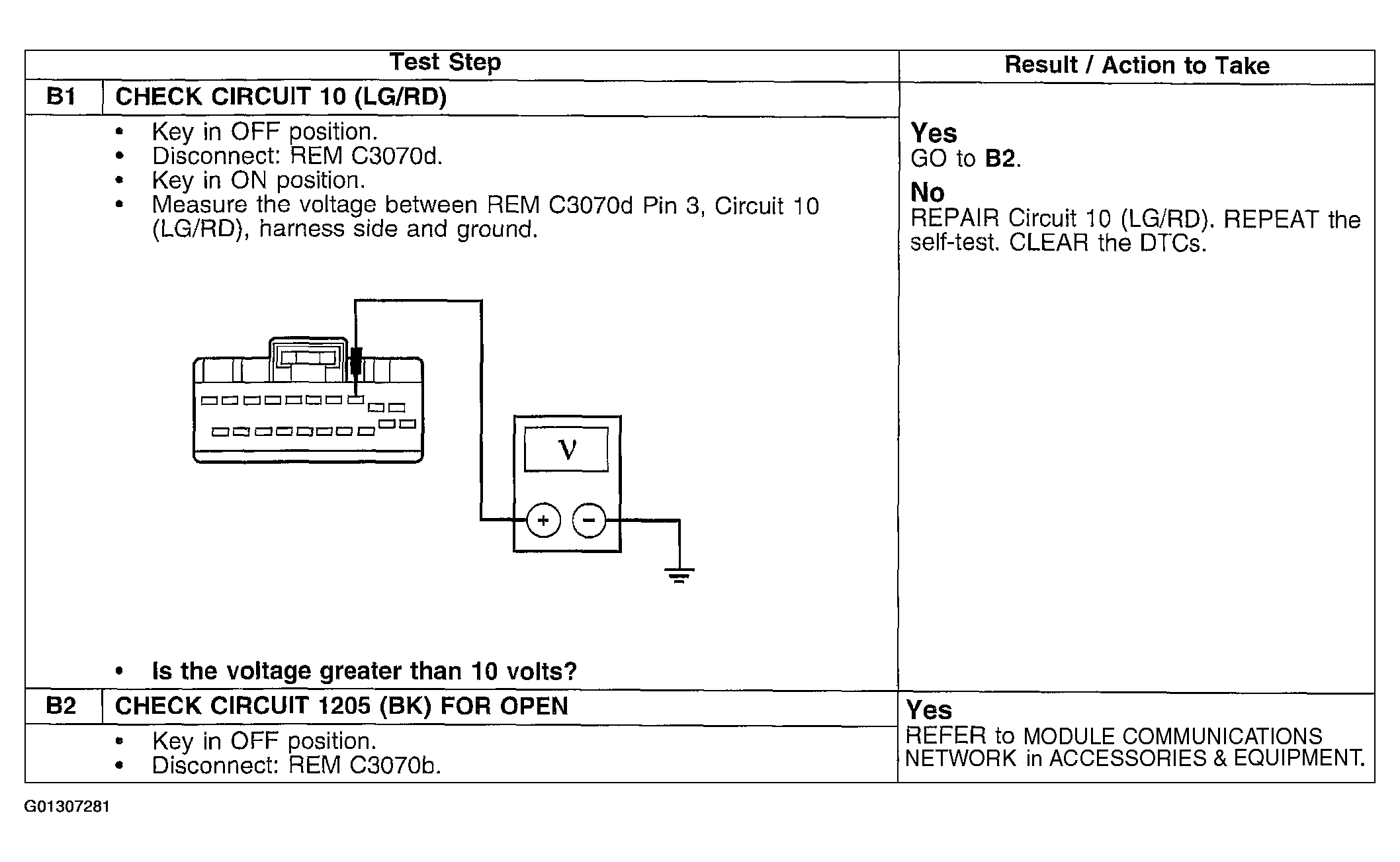

Fig 1: Pinpoint Test B: No Communication With Module - Rear Electronic Module (Steps B1)
Courtesy of FORD MOTOR CO.

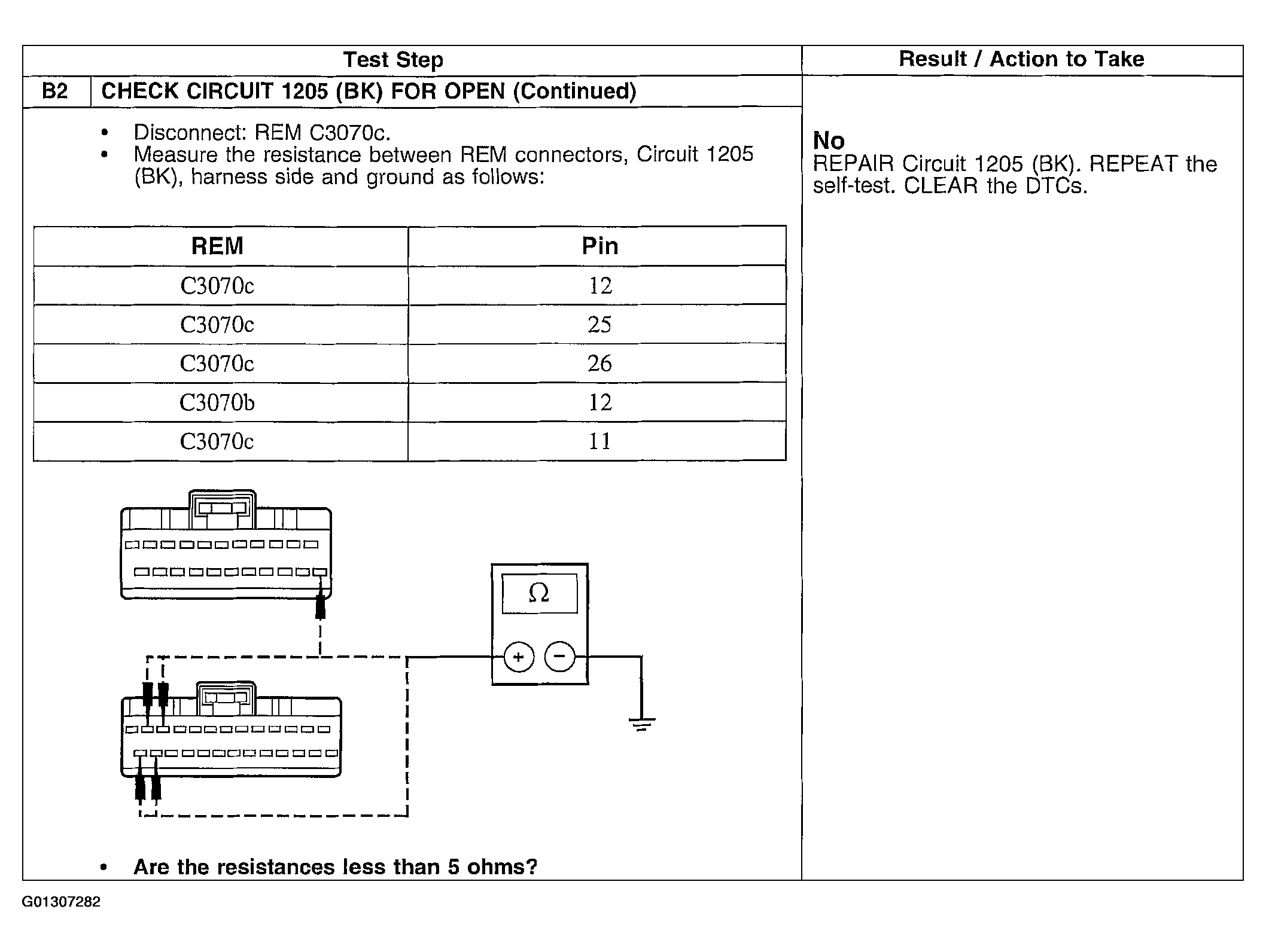

Fig 2: Pinpoint Test B: No Communication With Module - Rear Electronic Module (Steps B2)
