Power Steering
>>
Steering Gear (Typical)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Steering Gear (Typical)

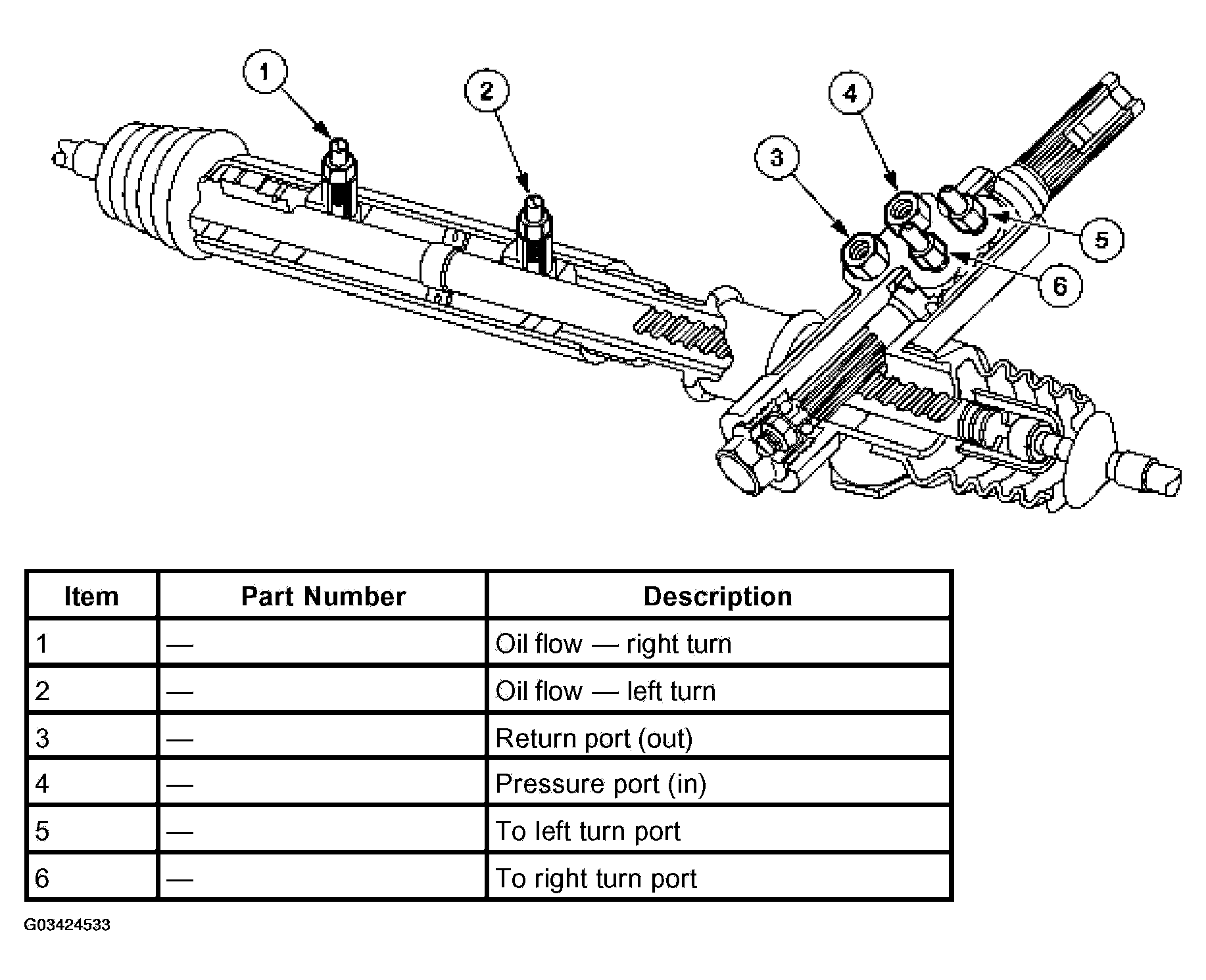

Fig 1: Identifying Steering Gear (Typical) Components
Courtesy of FORD MOTOR CO.
