LH Module

REMOVAL
1. Remove CJB fuse 6 (15 A).
2. Remove the left upper quarter trim panel
3. Remove the left lower quarter trim panel
4. Remove the upper and lower A/C ducts.

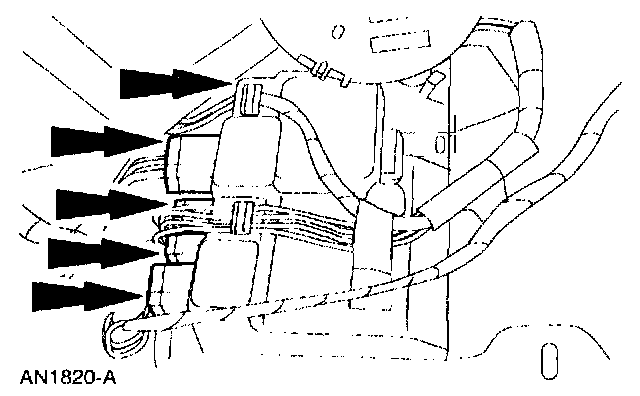

5. Disconnect the connectors.

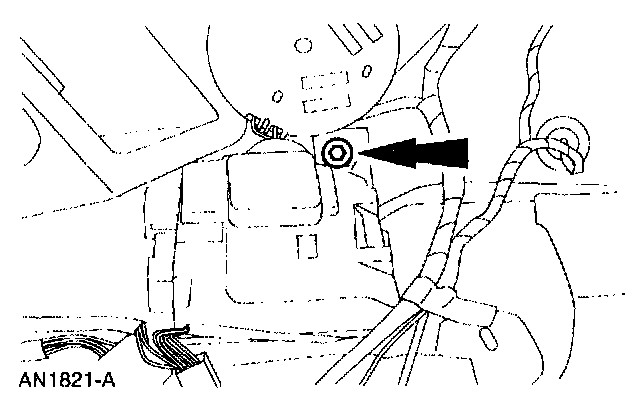

6. Remove the bolt.
7. Unsnap the control module hinge from the actuator assembly.

INSTALLATION
1. Snap the control module hinge onto the actuator assembly.

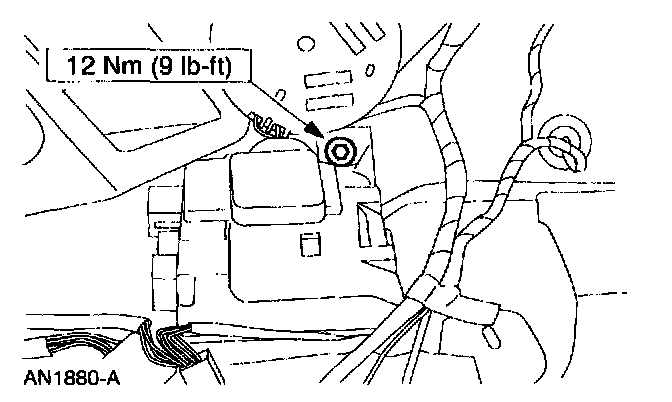

2. Install the bolt.







3. Connect the connectors.
4. Install the upper and lower A/C ducts
5. Install the left lower quarter trim panel
6. Install the left upper quarter trim panel
7. Install CJB fuse 6 (15 A).
8. Initialize both of the power sliding doors.
^ Press the overhead console switch to open the left power sliding door to the full open position. Press the same switch to close the left power sliding door to the full close position.
^ Press the overhead console switch to open the right power sliding door to the full open position. Press the same switch to close the right power sliding door to the full close position.

NOTE:
^ Make sure that the power sliding doors are fully closed and latched.
^ Make sure the power sliding doors are unlocked.
