RH Module

REMOVAL
1. Remove CJB fuse 6 (15 A).
2. Remove the right quarter trim panel.

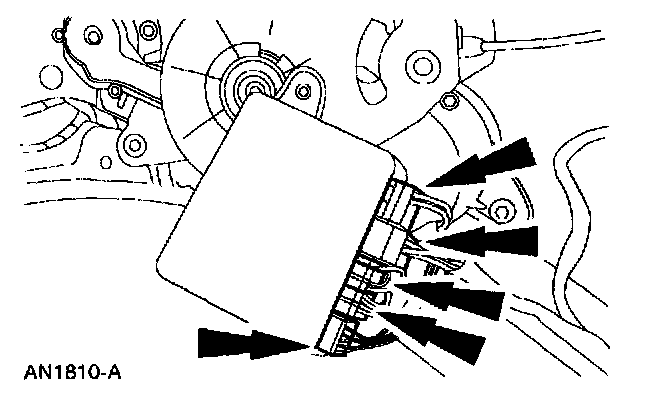

3. Disconnect the connectors.

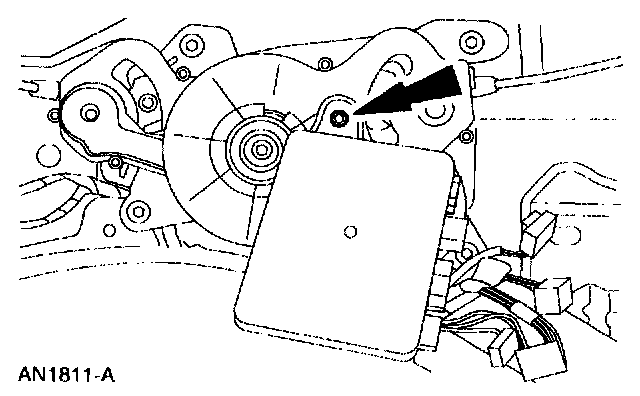

4. Remove the screw.

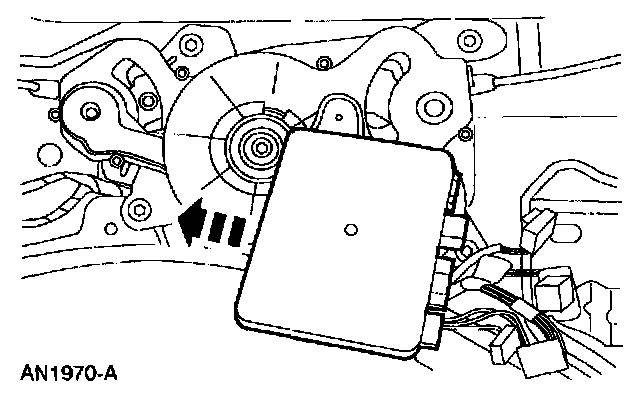

5. Slide the control module off the actuator assembly.

INSTALLATION

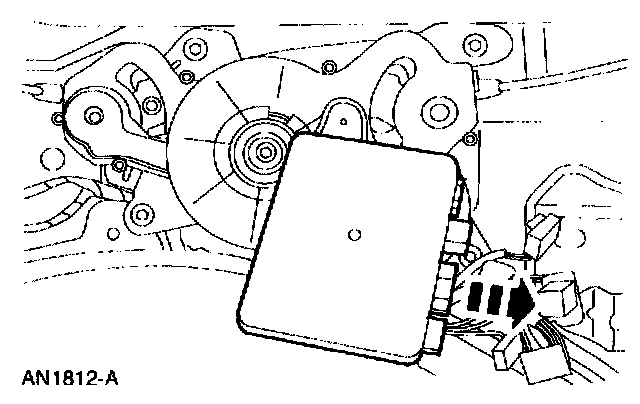

1. Slide the control module onto the actuator assembly.







2. Install the screw.







3. Connect the connectors.
4. Install the right quarter trim panel
5. Install CJB fuse 6 (15 A).
6. Initialize both power sliding doors.
^ Press the overhead console switch to open the left power sliding door to the full open position. Press the same switch to close the left power sliding door to the full close position.
^ Press the overhead console switch to open the right power sliding door to the full open position. Press the same switch to close the right power sliding door to the full close position.

NOTE:
^ Make sure that the power sliding doors are fully closed and latched.
^ Make sure that the power sliding doors are unlocked.
