System Specifications

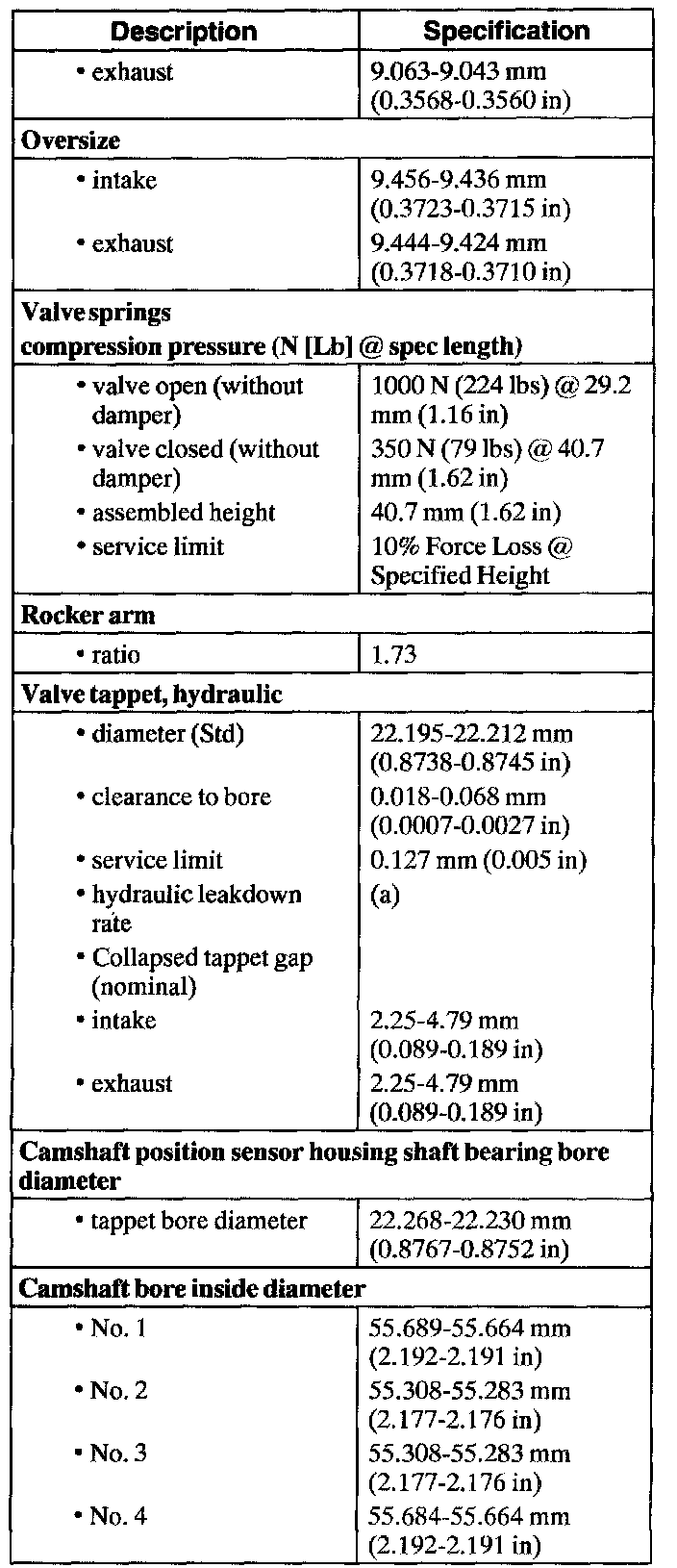

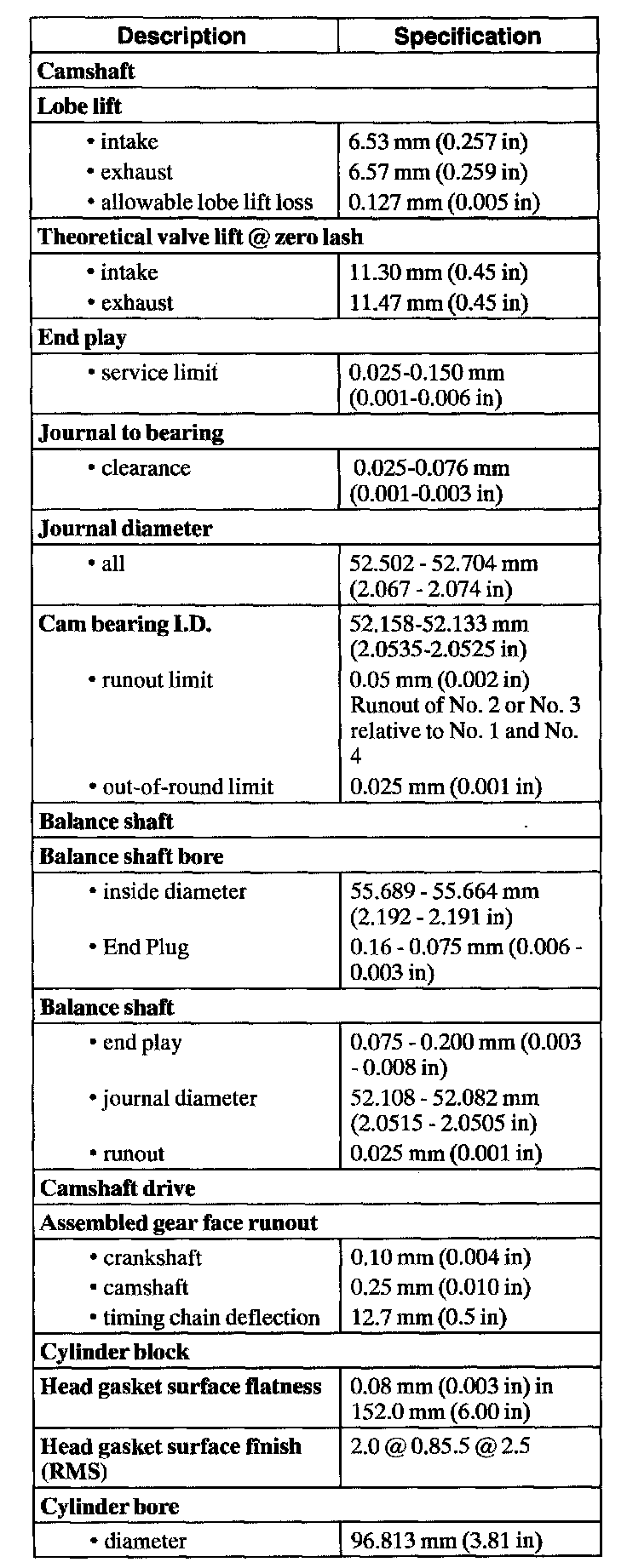

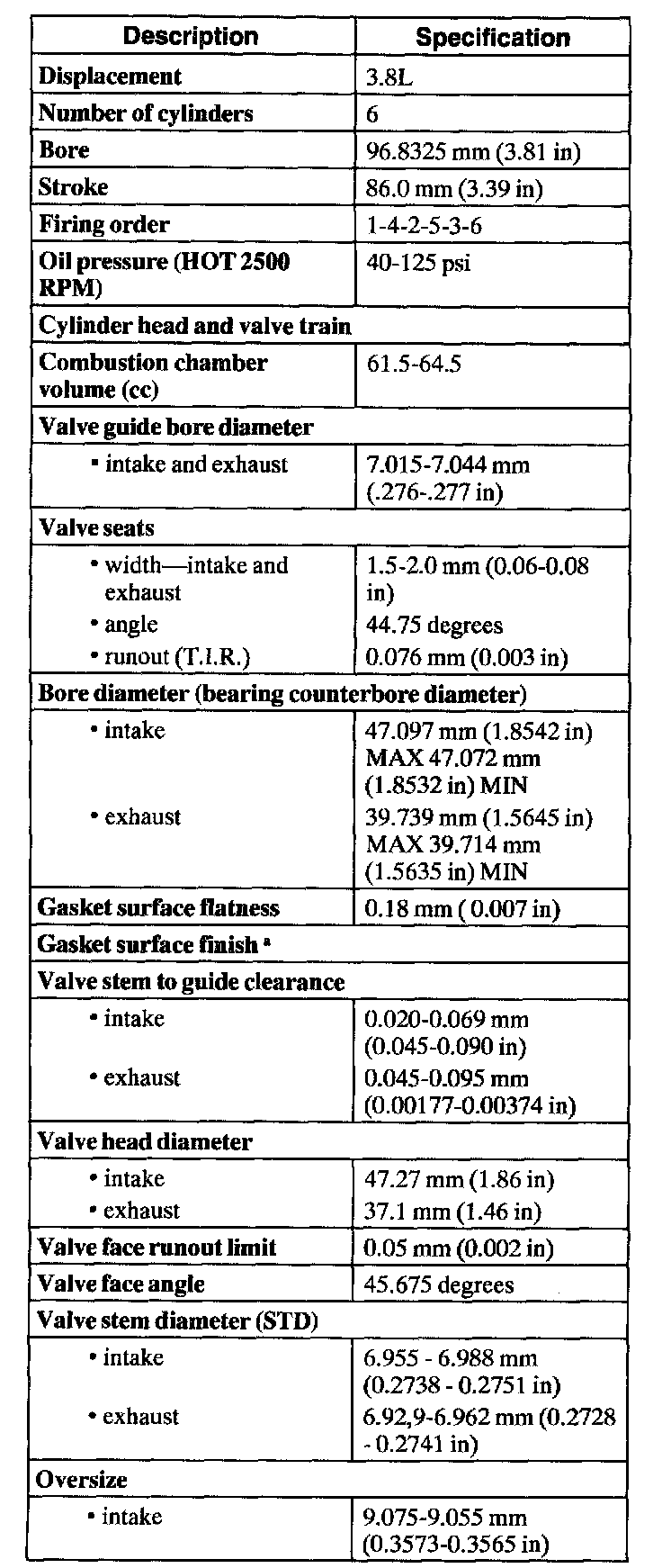

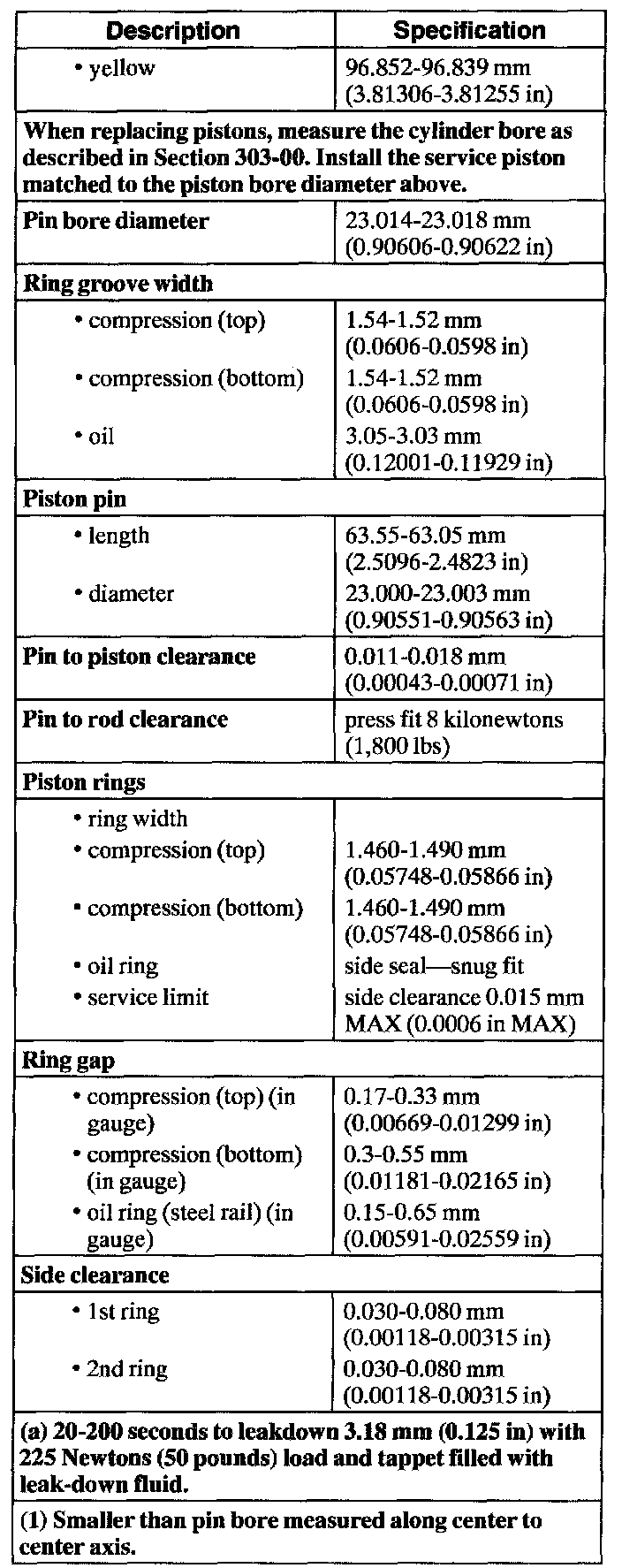

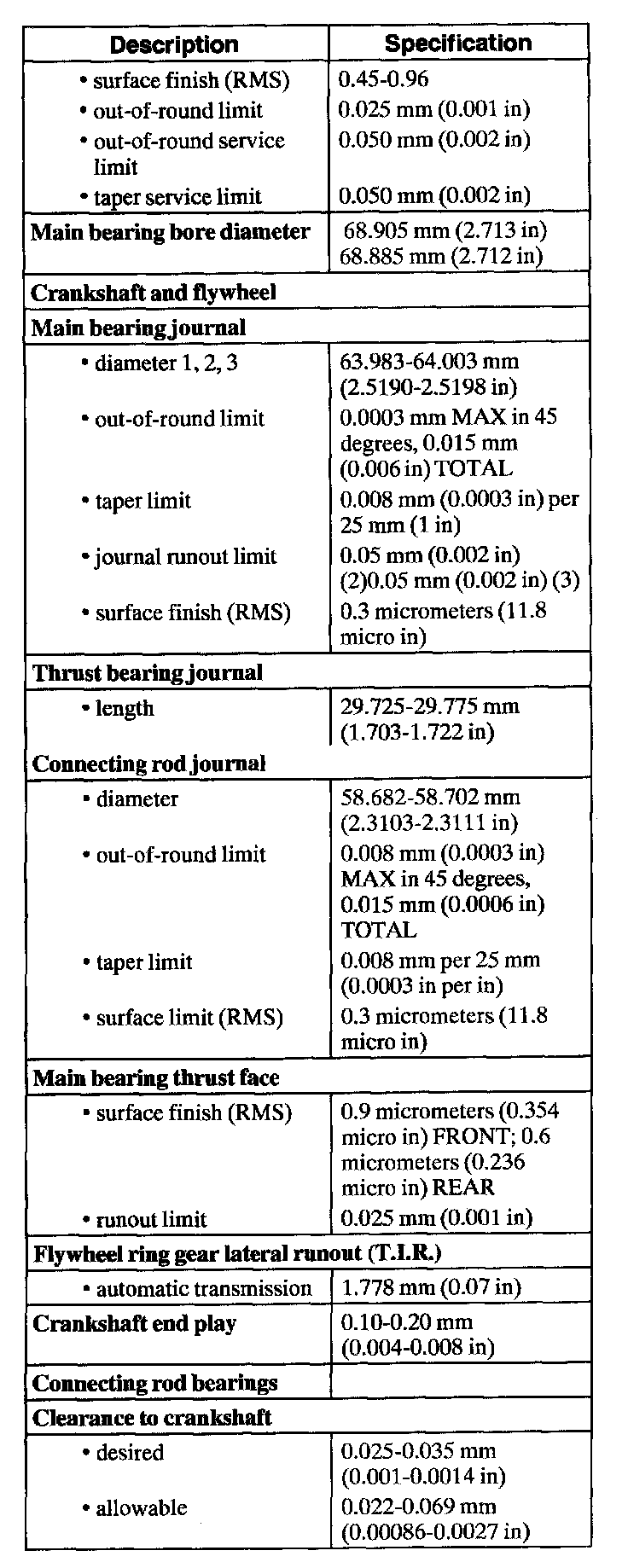

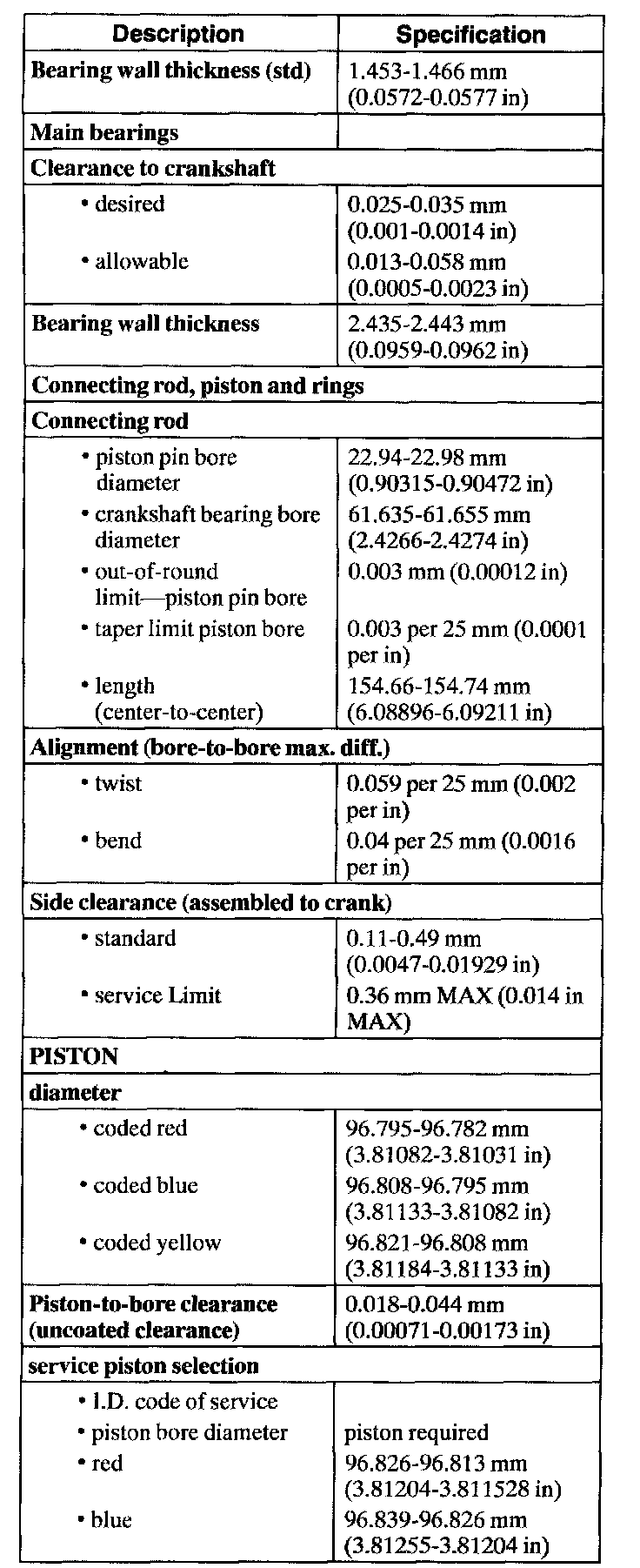

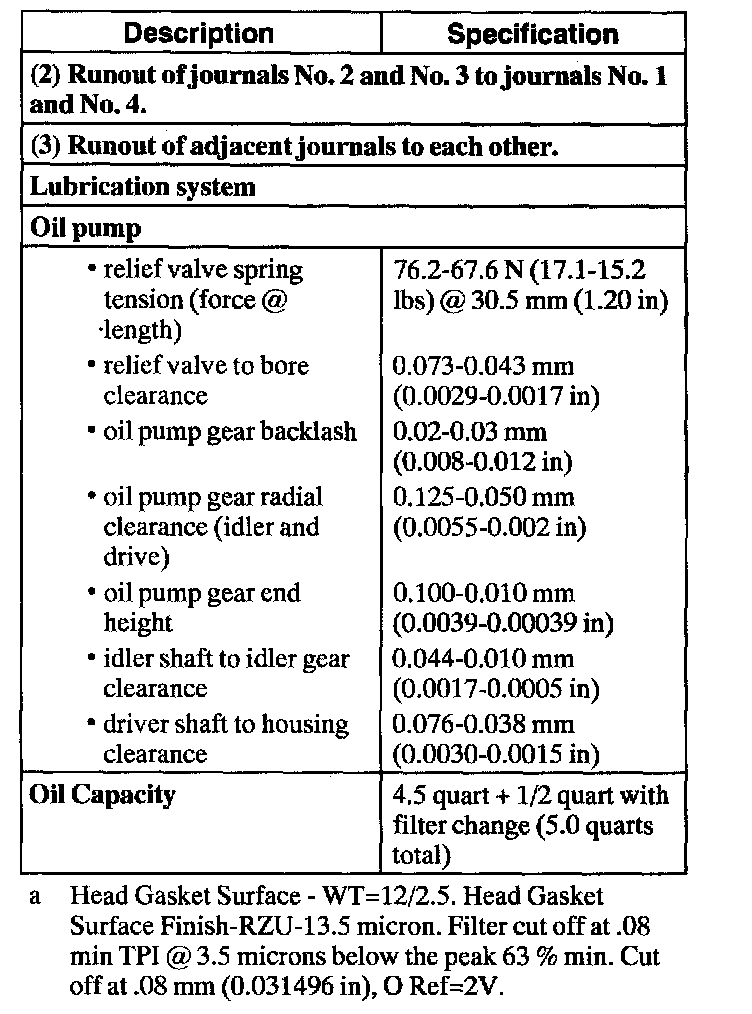

Specifications

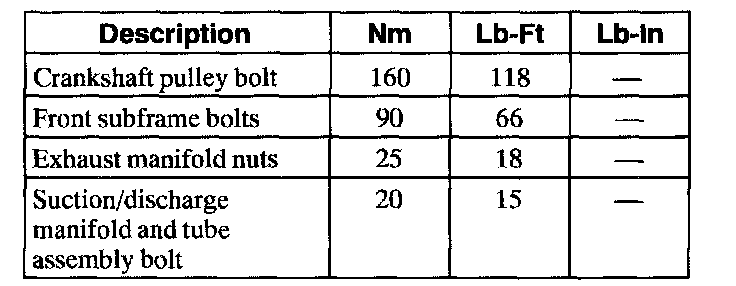

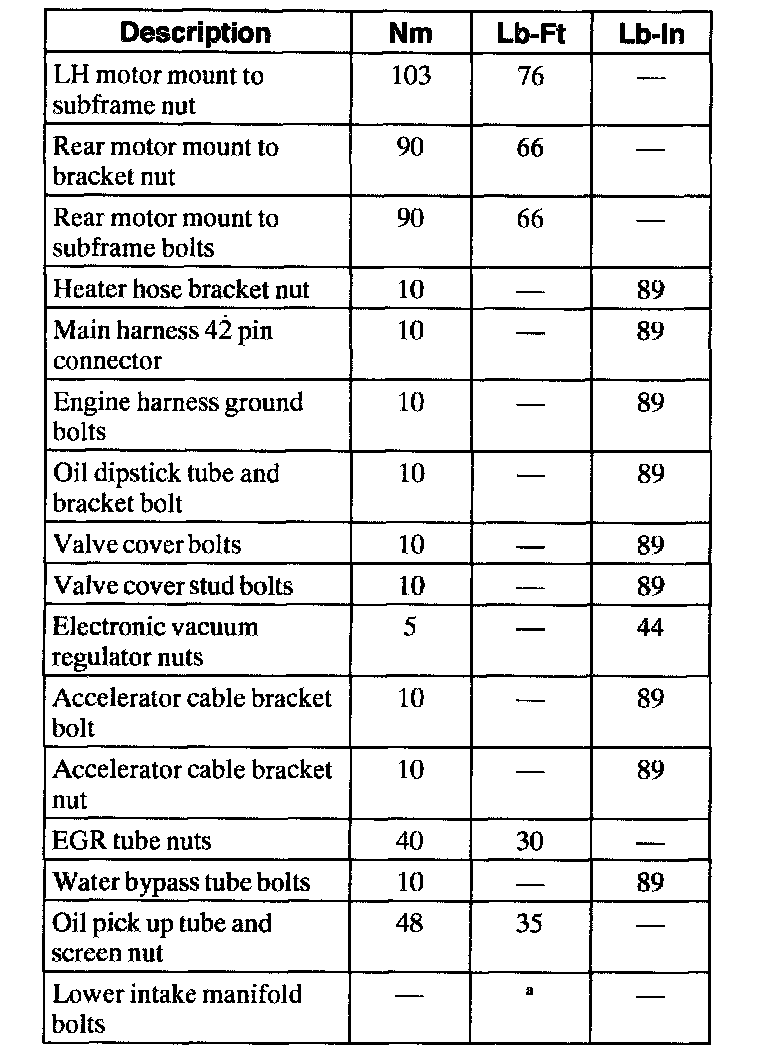

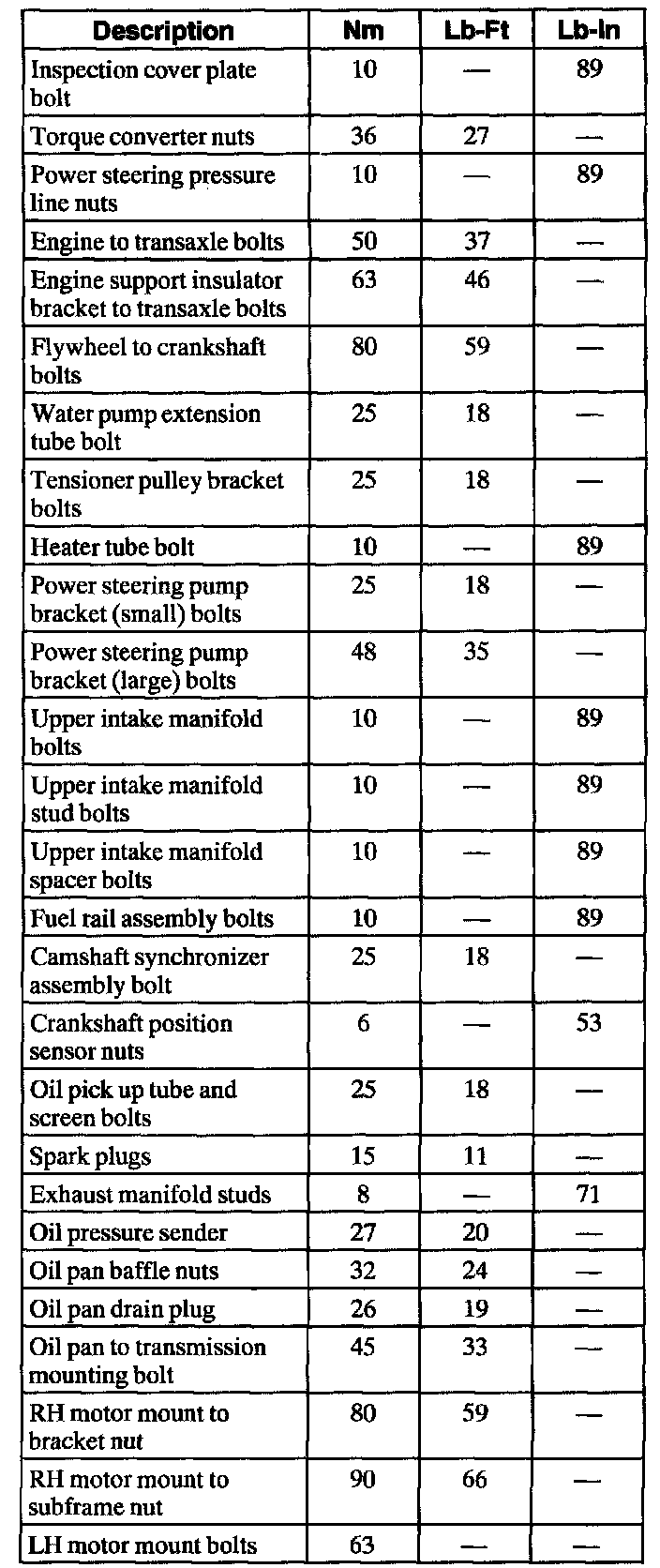

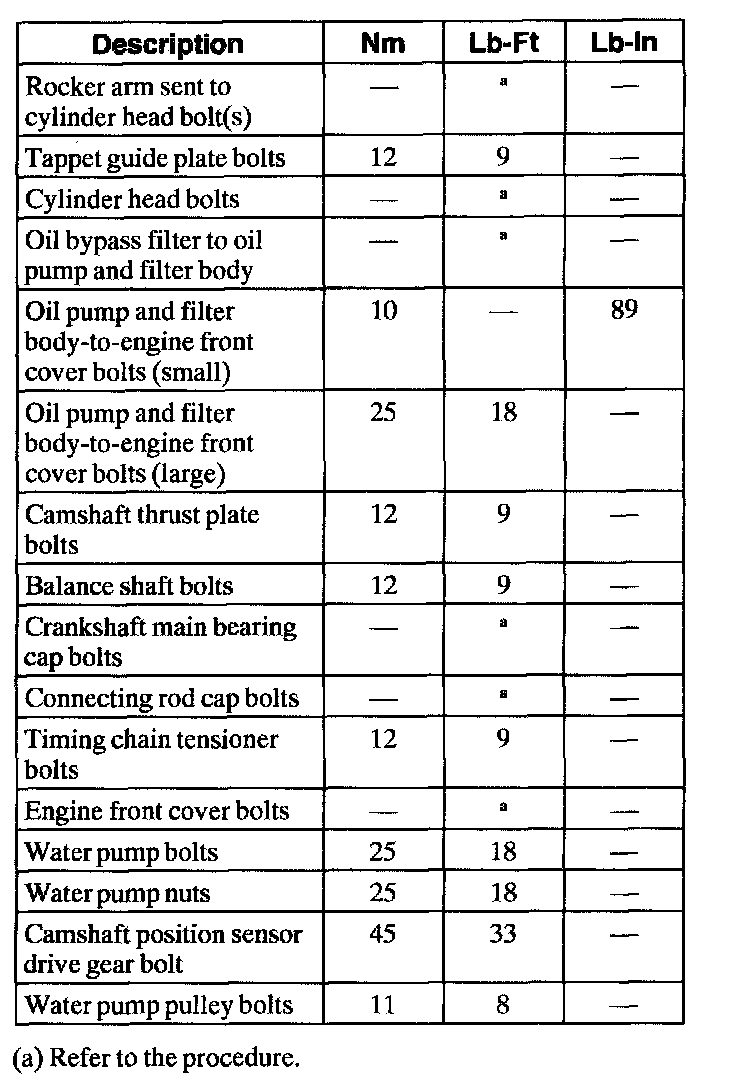

Torque Specifications

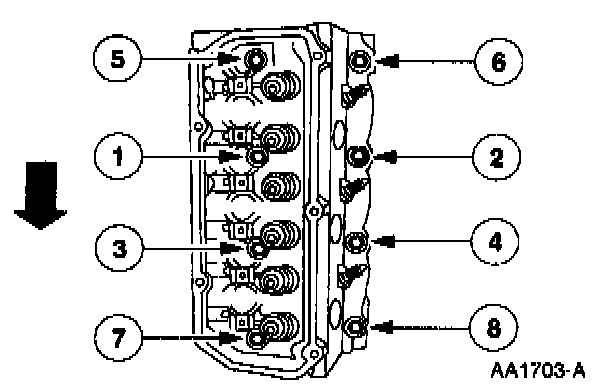

Tightening Sequence

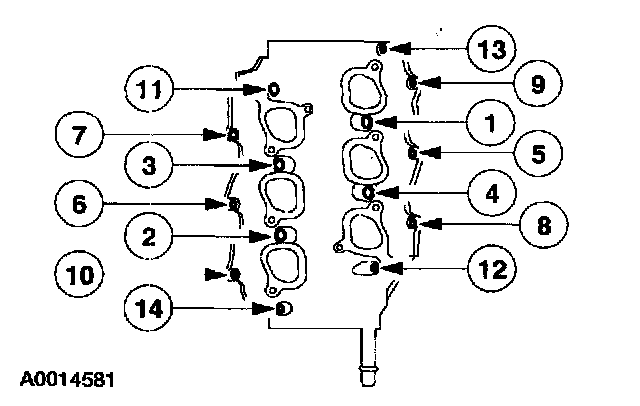

Cylinder Head
Refer to the procedure Service and Repair

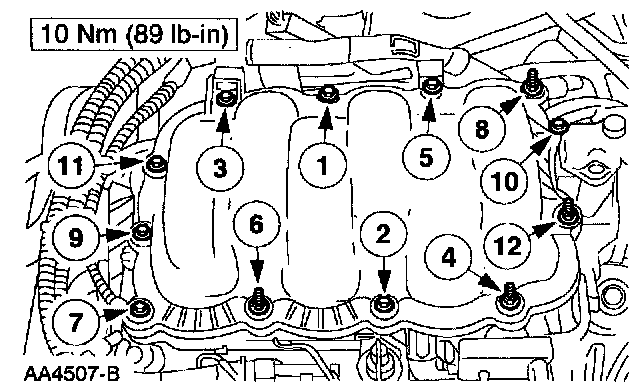

Upper Intake Manifold
Refer to the procedure Upper

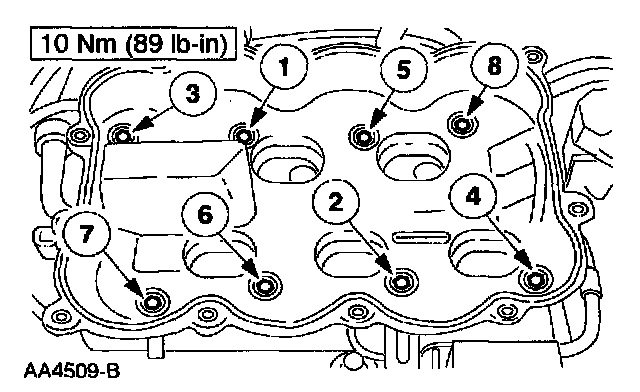

Lower Intake Manifold
Refer to the procedure Lower

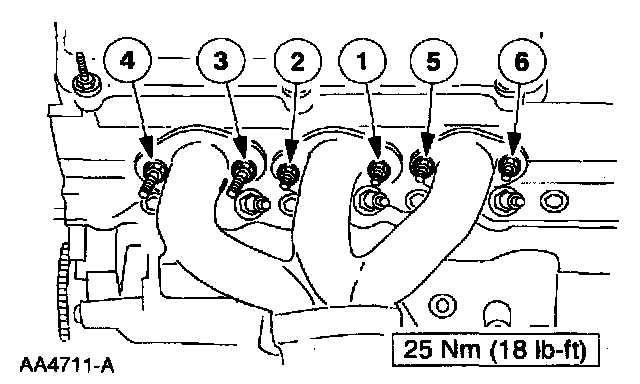

Exhaust Manifold
Refer to the procedure Assembly
