Intake Manifold: Installation

  1. If required, install the new intake manifold gasket.
  2. Follow the removal procedure in reverse order.
    • Install the intake manifold.
    • Install the bolts and nuts.
    • Tighten the bolts and nuts in the sequence shown.

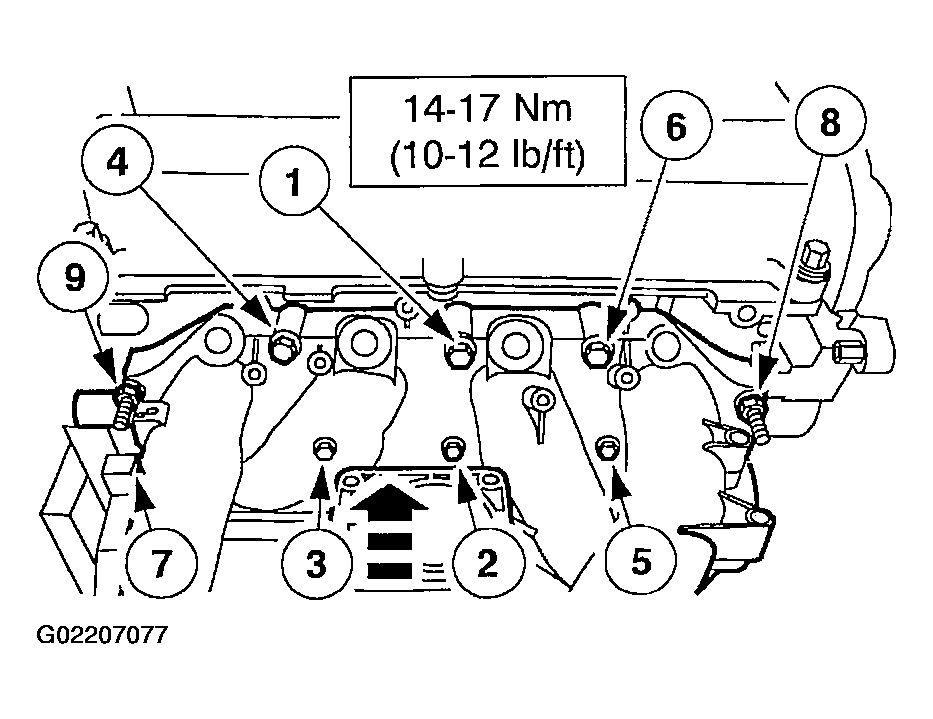

    Fig 1: Tightening Bolts And Nuts In Sequence
    G02207077Courtesy of FORD MOTOR CO.

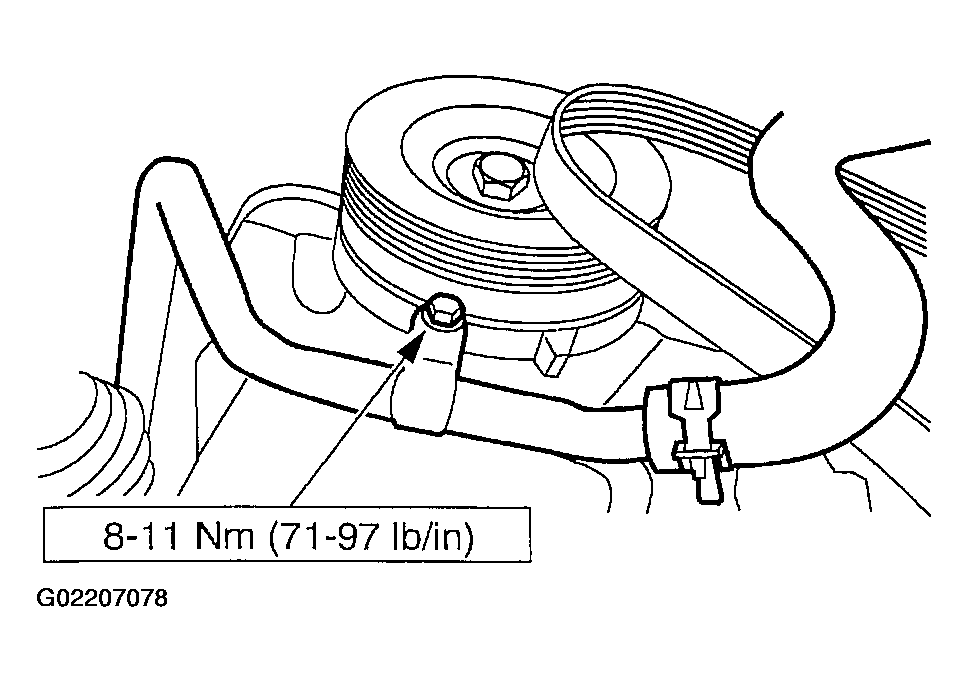

    Fig 2: Tightening Bolts
    G02207078Courtesy of FORD MOTOR CO.
