Timing Drive Components-Timing Sprockets: Installation

    CAUTION: The variable camshaft timing (VCT) sprocket has a rectangular tab on the backside of the sprocket which must align with the hole on the front face of the thrust bushing. Failure to align may result in poor engine performance.

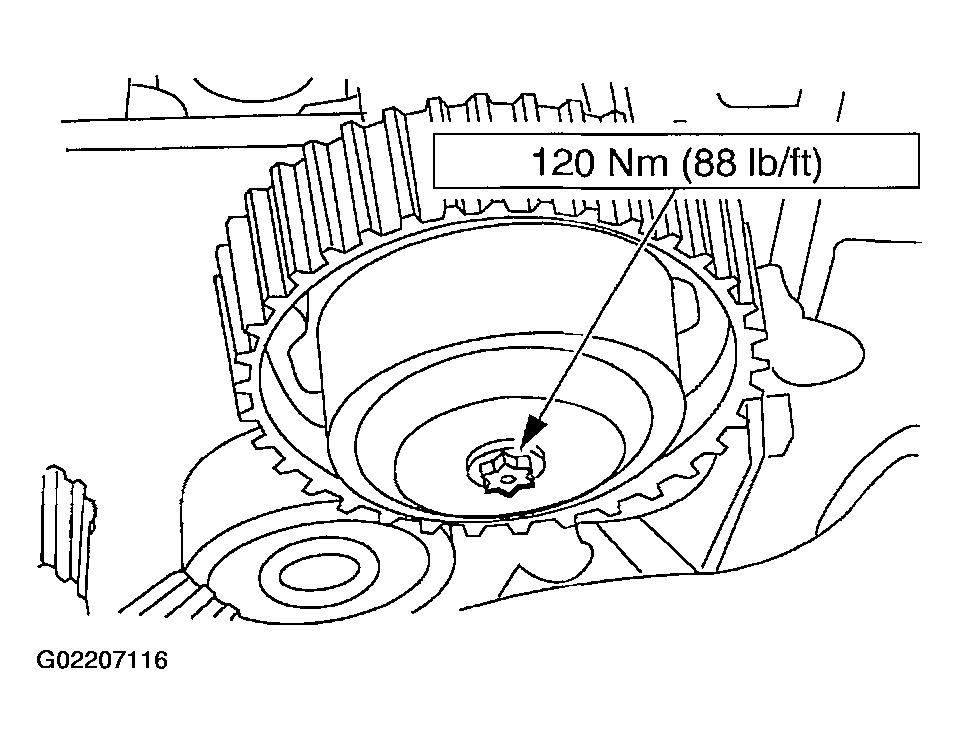

    Fig 1: Removing Exhaust Camshaft Sprocket
    G02207116Courtesy of FORD MOTOR CO.

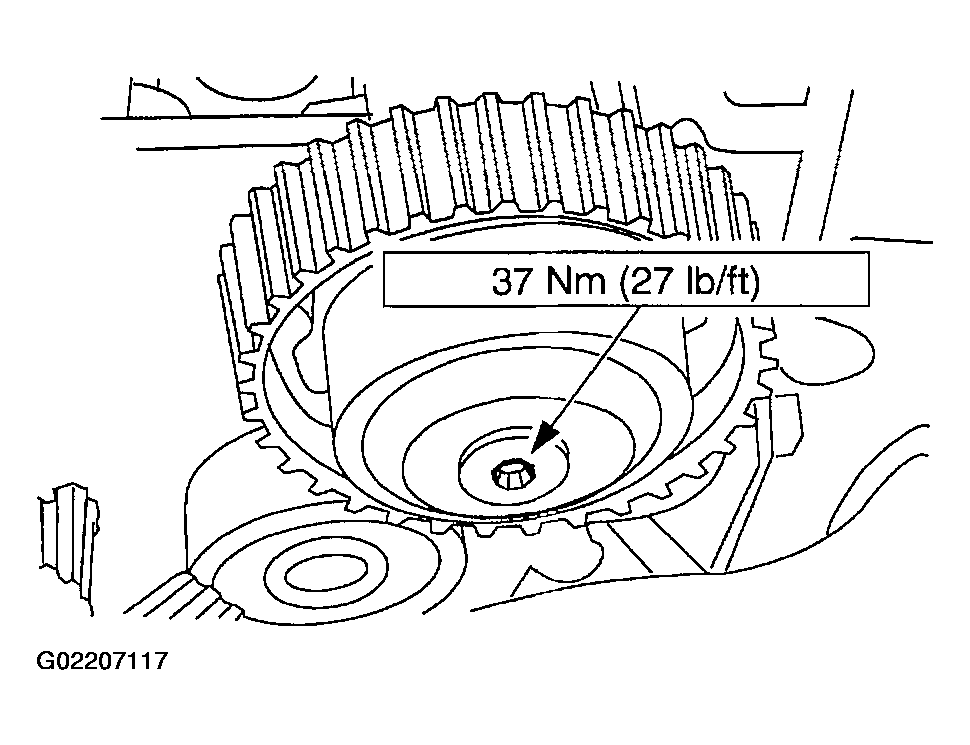

    Fig 2: Installing Exhaust Camshaft Sprocket
    G02207117Courtesy of FORD MOTOR CO.

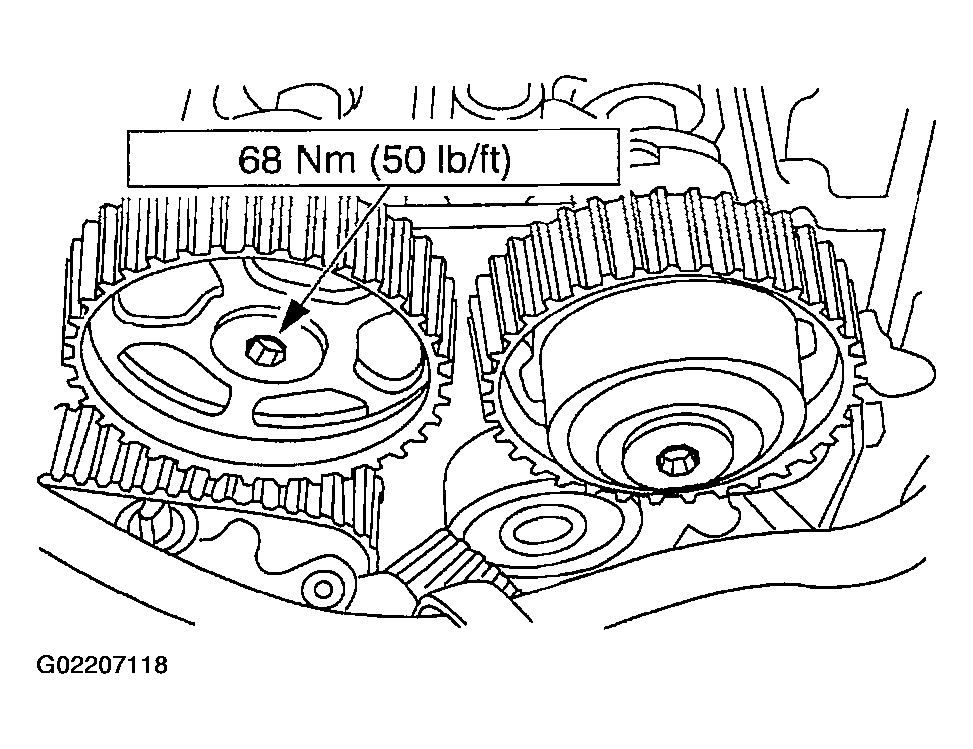

    Fig 3: Installing Intake Camshaft Timing Sprocket
    G02207118Courtesy of FORD MOTOR CO.
  1. To install, reverse the removal procedure.
