Camshaft - Lobe Lift

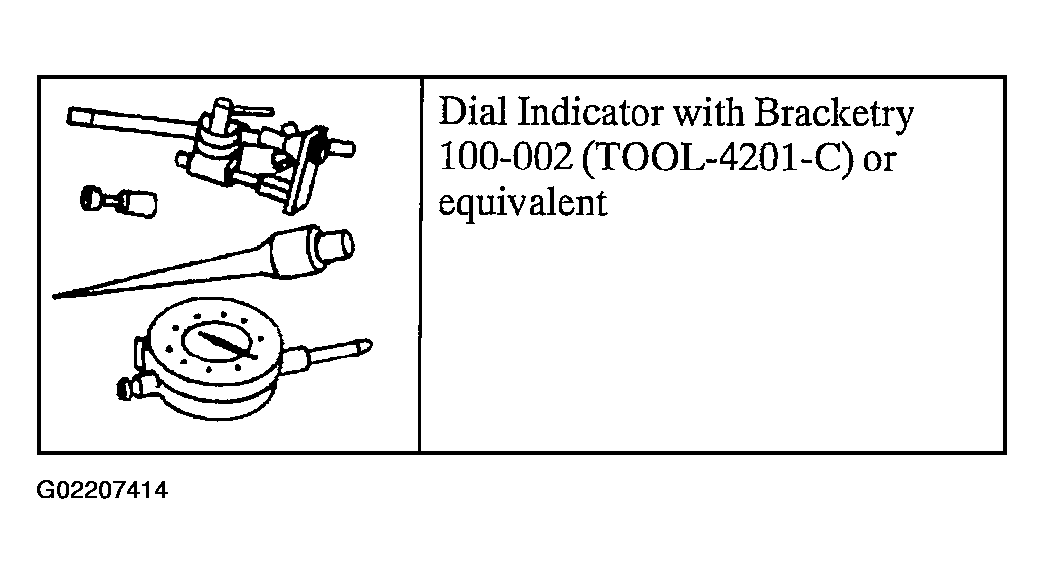

Fig 1: Identifying Special Tool
G02207414Courtesy of FORD MOTOR CO.
  1. Use a Dial Indicator with Bracketry to measure camshaft intake/exhaust lobe lift.
    • Rotate the camshaft and subtract the lowest indicator reading from the highest indicator reading to figure the camshaft lobe lift.
    • For additional information, refer to Specifications in the appropriate ENGINE article .

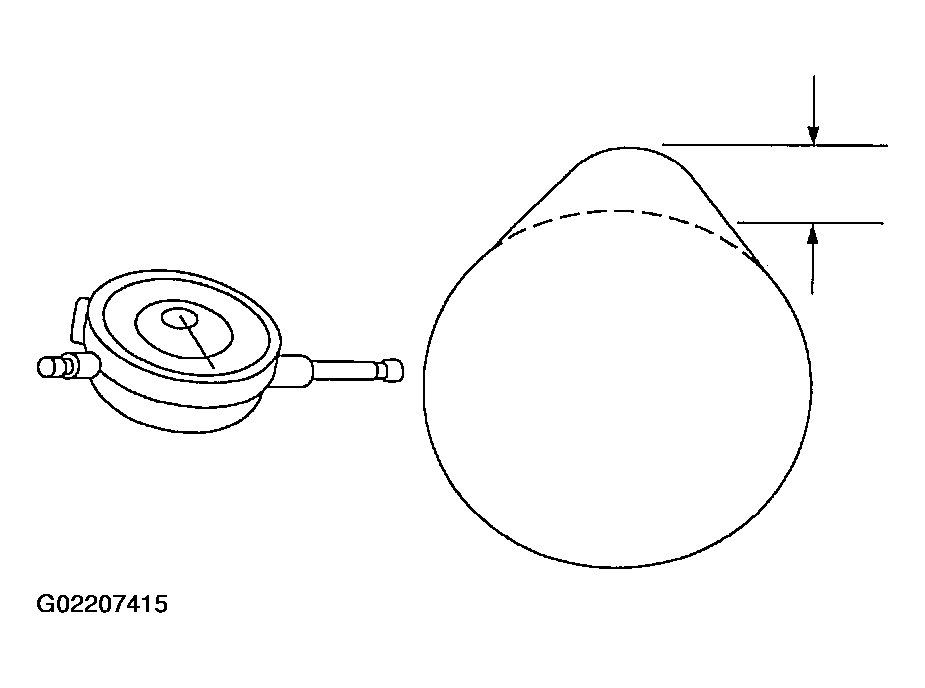

    Fig 2: Measuring Camshaft Intake/Exhaust Lobe Lift
    G02207415Courtesy of FORD MOTOR CO.
