Front Wheel Speed Sensor Ring: Installation
WARNING: This page is about a different car, the 2005 Ford RV Cutaway, 2005 Ford Econoline, 2005 Ford E450 Super Duty, and 2005 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

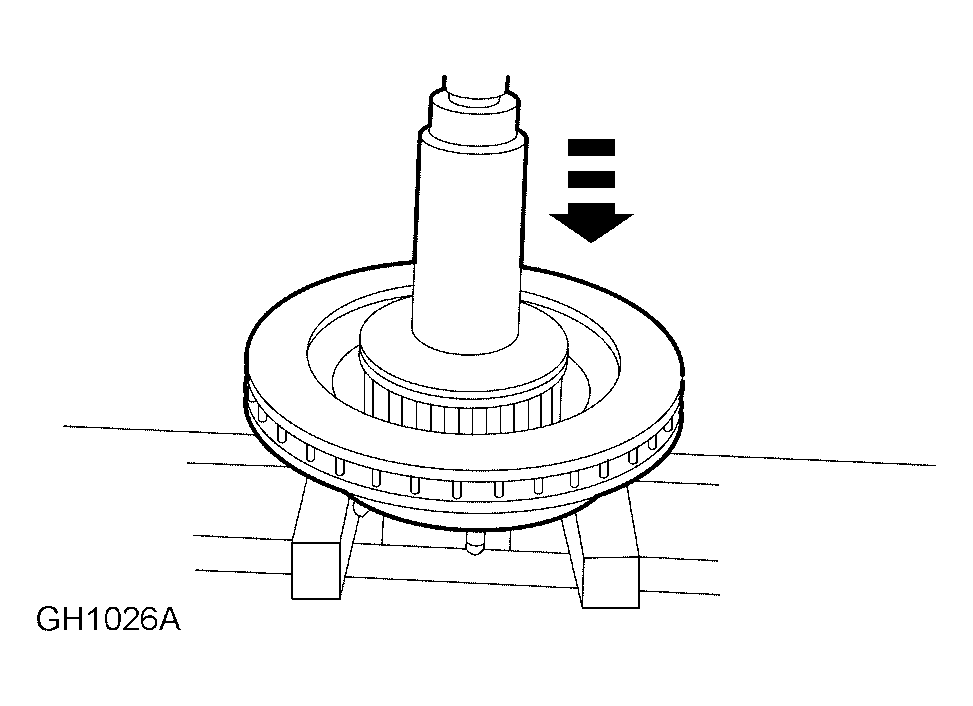

- Use an appropriate size cylinder and press to install the front wheel speed sensor ring.
- Install the front disc brake rotor. For additional information, refer to FRONT DISC BRAKE .
CAUTION:
The front wheel speed sensor ring must be pressed on straight.
