Lower Control Arm: Removal
- Raise and support vehicle. Remove wheel assembly. Remove stabilizer bar nuts, washers, bushings, bolts and spacer. See Figure

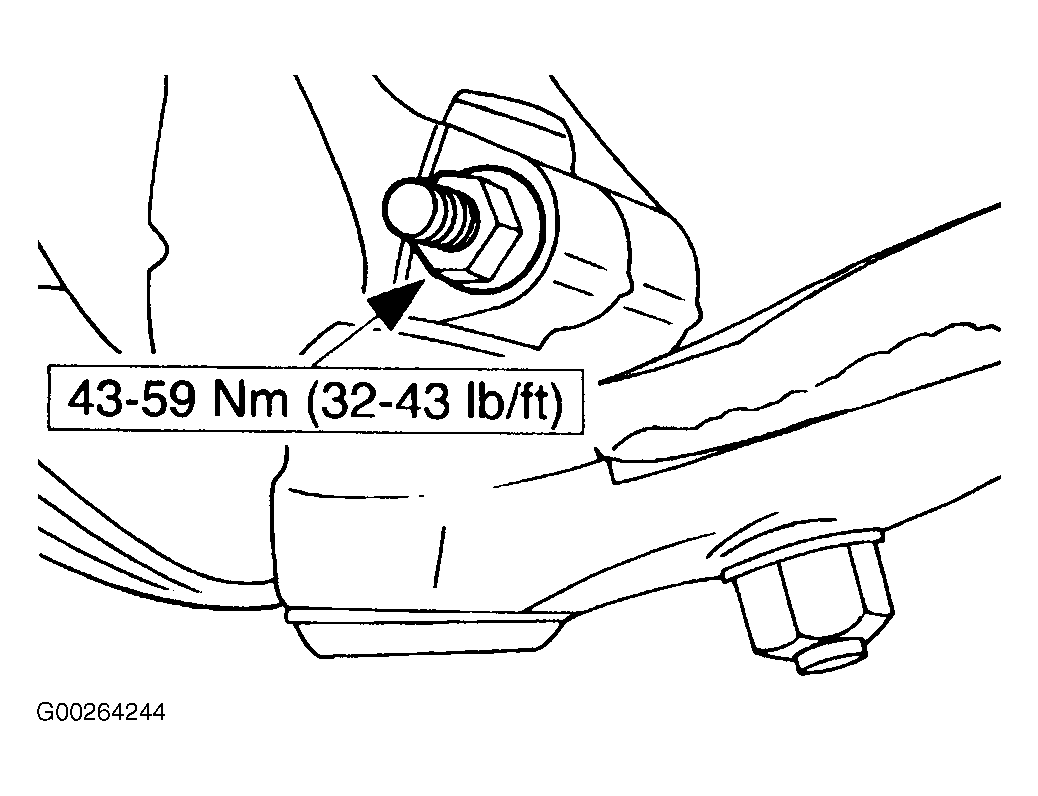

. Remove nut and pinch bolt securing lower ball joint to knuckle. See Figure
. Separate steering knuckle from lower ball joint.

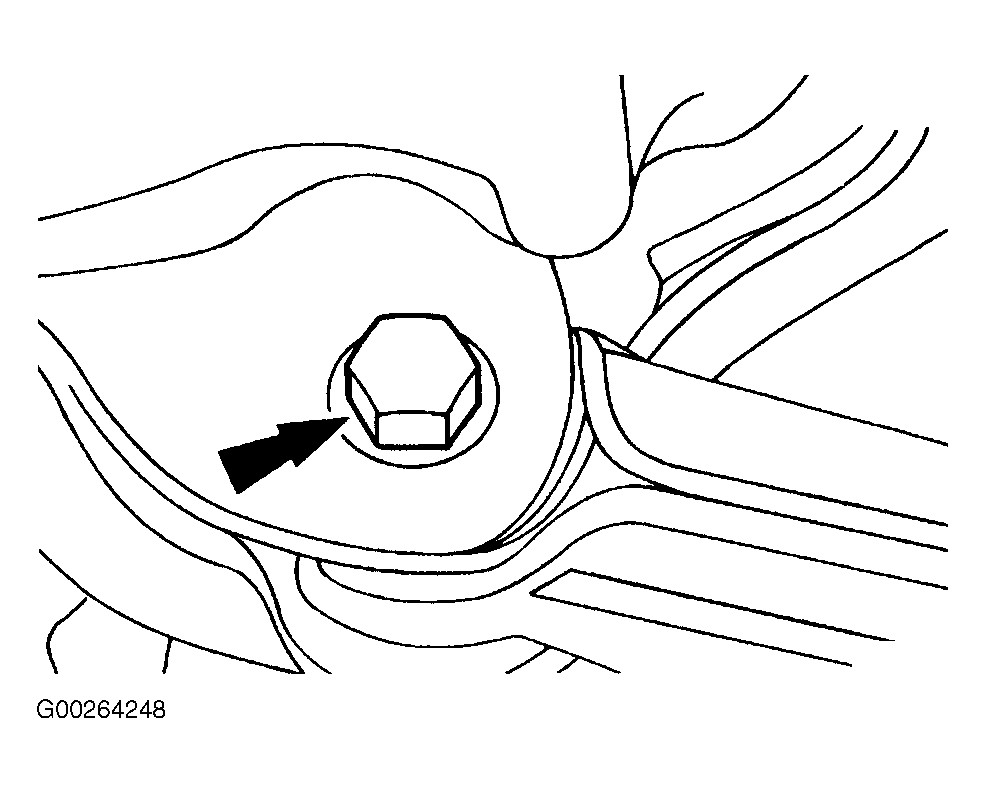

- Remove lower control arm pivot bolt. See Fig 1

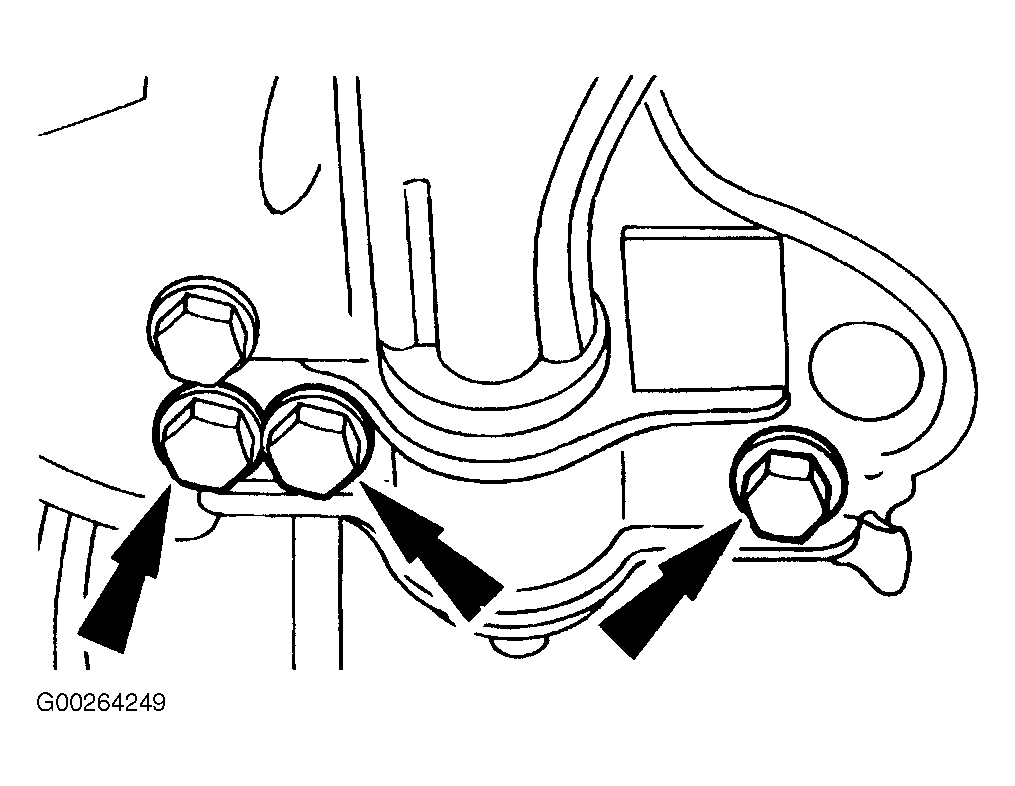

. Remove bolts securing lower control arm rear bushing onto chassis. See Fig 2
. Remove lower control arm.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
