3-4 Clutch: Notes

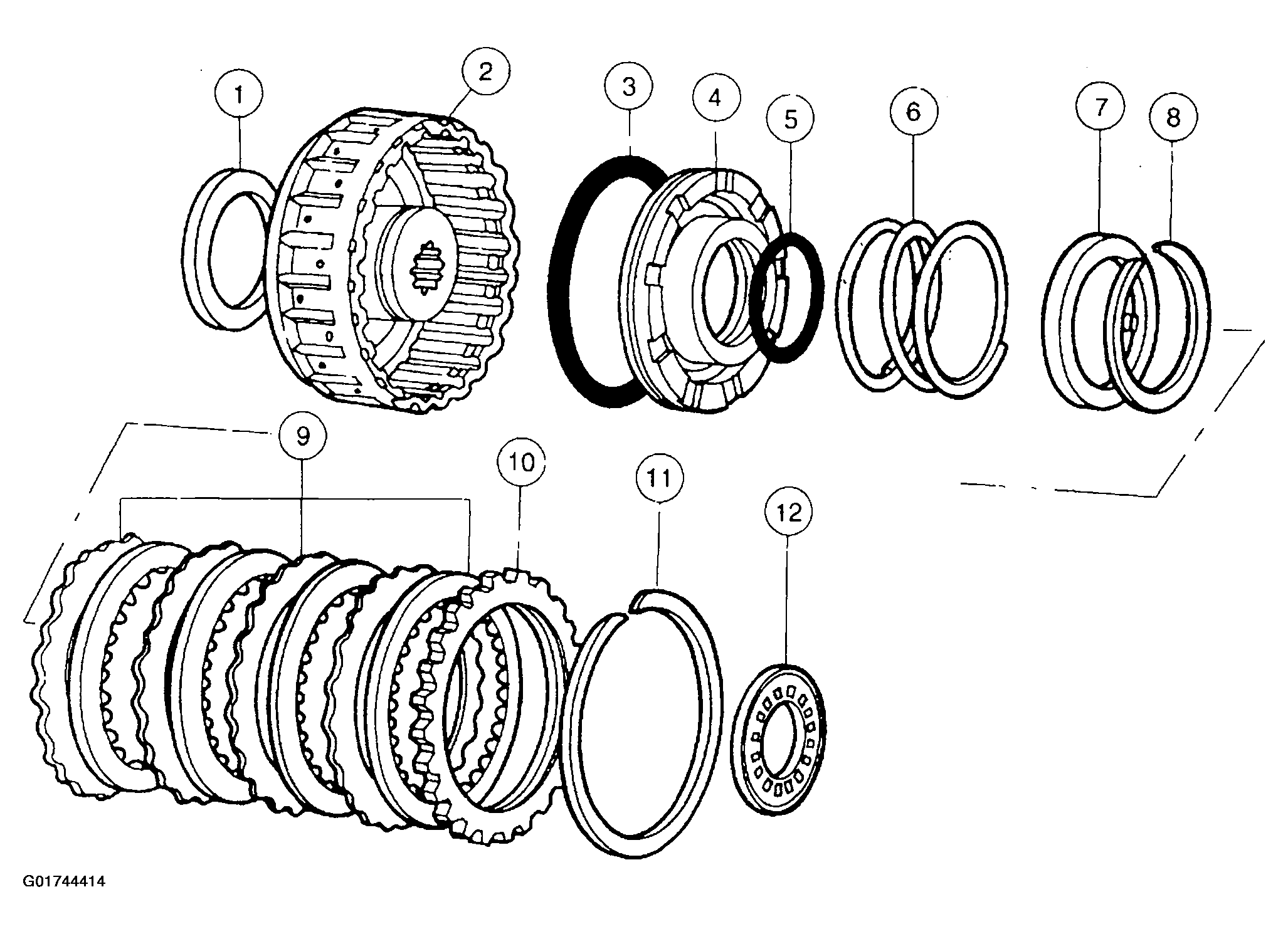

Fig 1: Identifying 3-4 Clutch Assembly Components
G01744414Courtesy of FORD MOTOR CO.

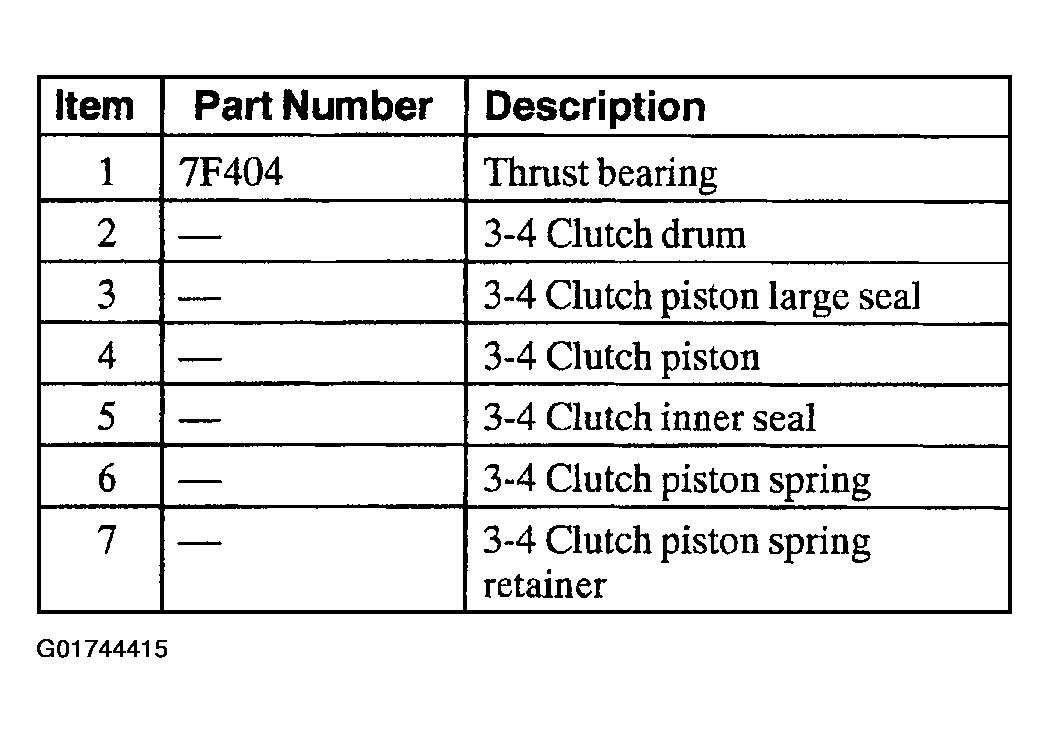

Fig 2: 3-4 Clutch Assembly Components Legend (Items 1-7)
G01744415Courtesy of FORD MOTOR CO.

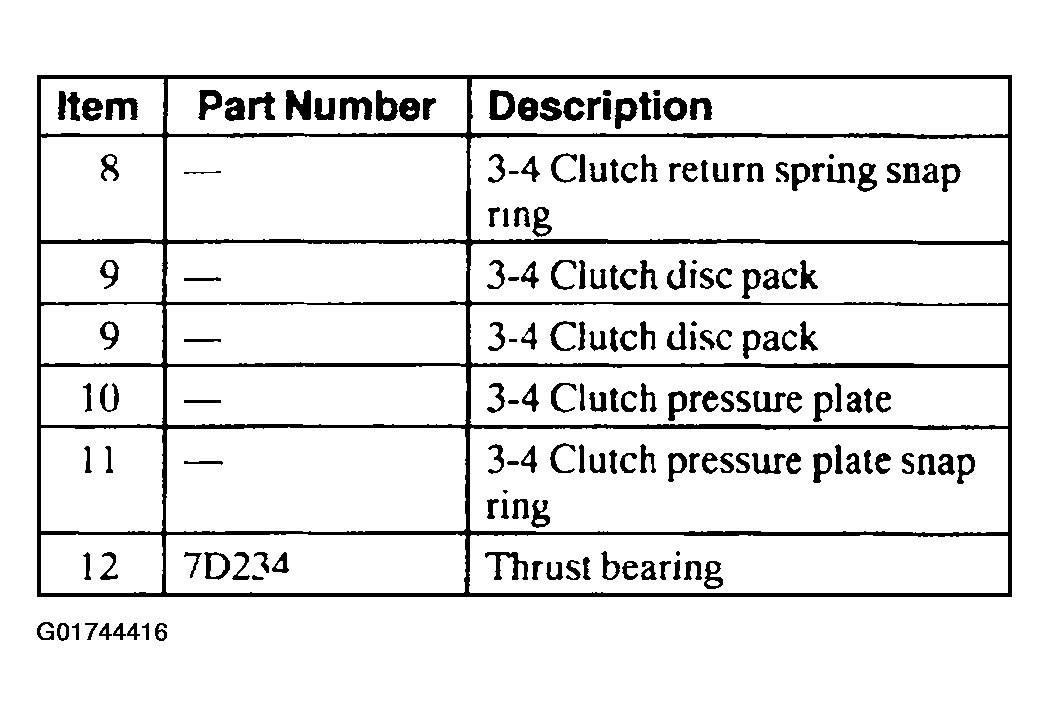

Fig 3: 3-4 Clutch Assembly Components Legend (Items 8-12)
G01744416Courtesy of FORD MOTOR CO.
