Disassembly And Assembly Of Subassemblies: Differential: Disassembly

CAUTION: Use protective plates in the vise to prevent damage to the differential.

NOTE: Prior to disassembly, measure the backlash of the side gear and pinion gear. Check for damaged or worn gears and a cracked or damaged gear case. If not as specified, replace the differential assembly.

1. Use Dial Indicator/Magnetic Base to measure the backlash of the side gears and pinions. If backlash is not within specification, replace the differential as an assembly.
   1. Install the LH and RH halfshafts.
   2. Support the halfshafts on V-blocks.
   3. Measure the backlash of the side gears and pinions.

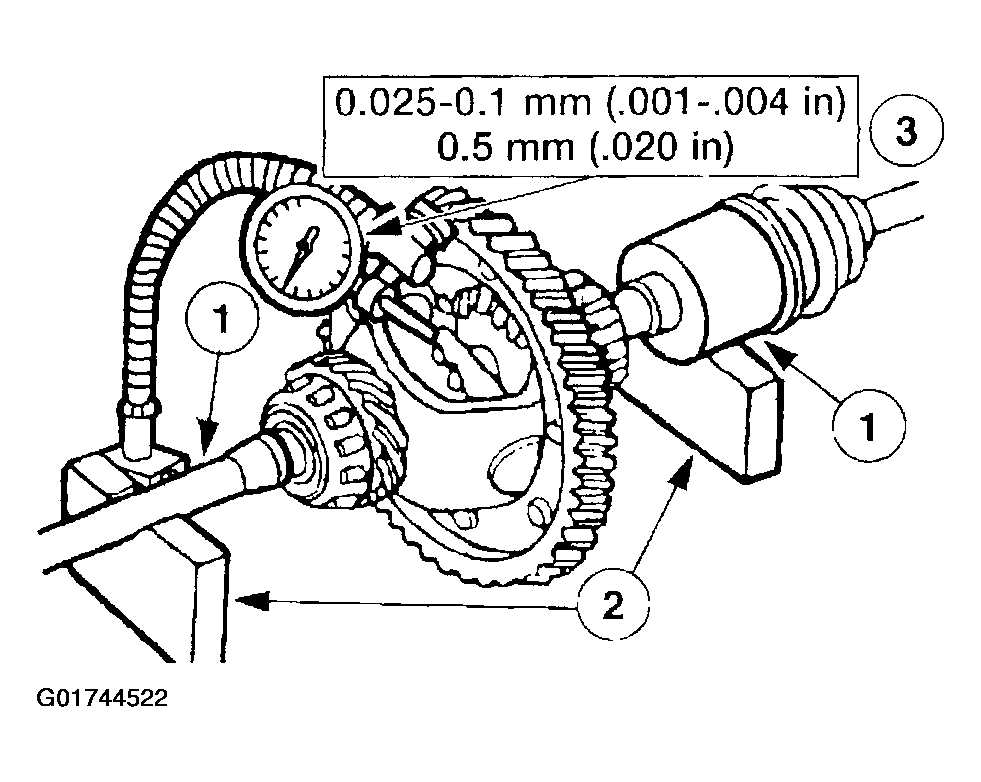

Fig 1: Measuring Backlash Of Side Gears & Pinions
Courtesy of FORD MOTOR CO.
2. Remove the differential pinion shaft lock pin.
   • Use a 2.0 mm (5/64 in) pin punch and hammer.

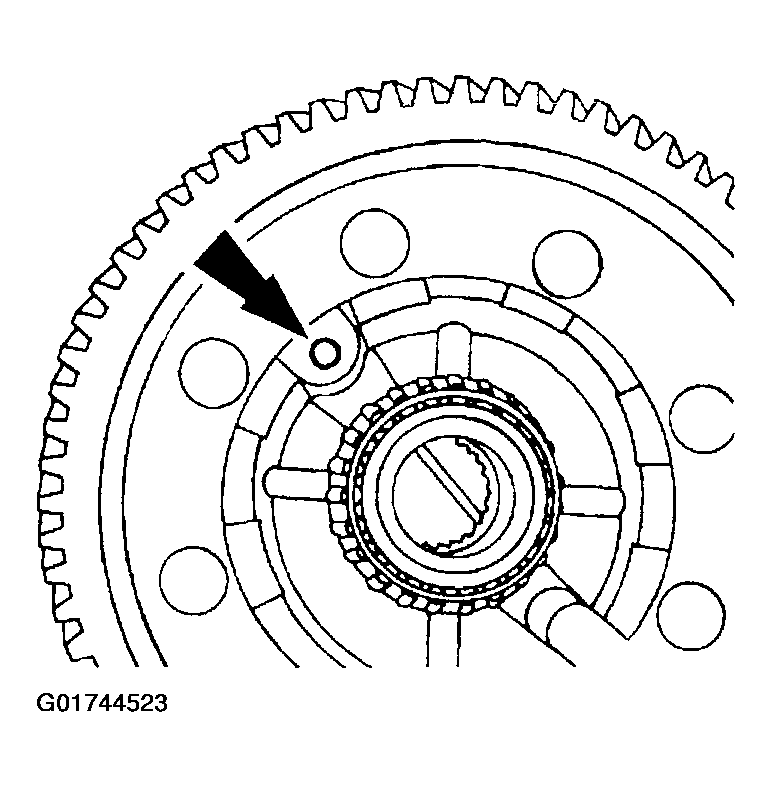

Fig 2: Removing Differential Pinion Shaft Lock Pin
Courtesy of FORD MOTOR CO.
3. Remove the differential pinion shaft.

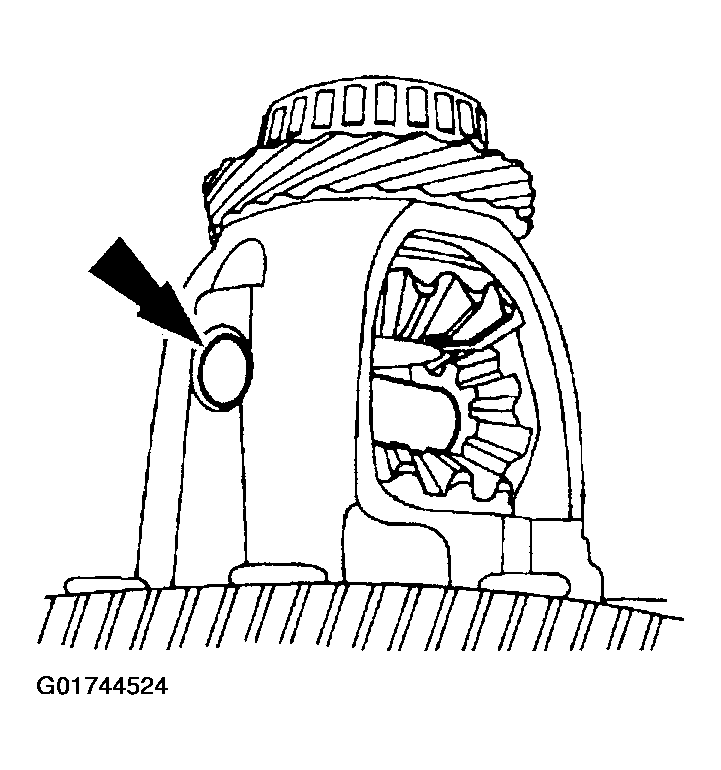

Fig 3: Removing Differential Pinion Shaft
Courtesy of FORD MOTOR CO.
4. Remove the differential pinion gears, differential side gears, differential pinion thrust washers, and the differential side gear thrust washers.

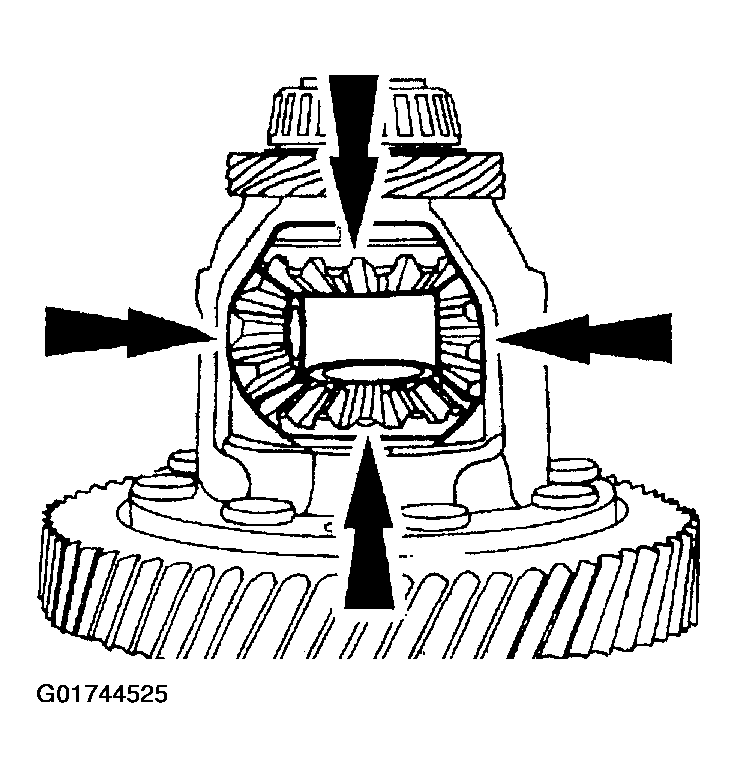

Fig 4: Removing Differential Pinion Gears, Differential Side Gears, Differential Pinion Thrust Washers & Differential Side Gear Thrust Washers
Courtesy of FORD MOTOR CO.

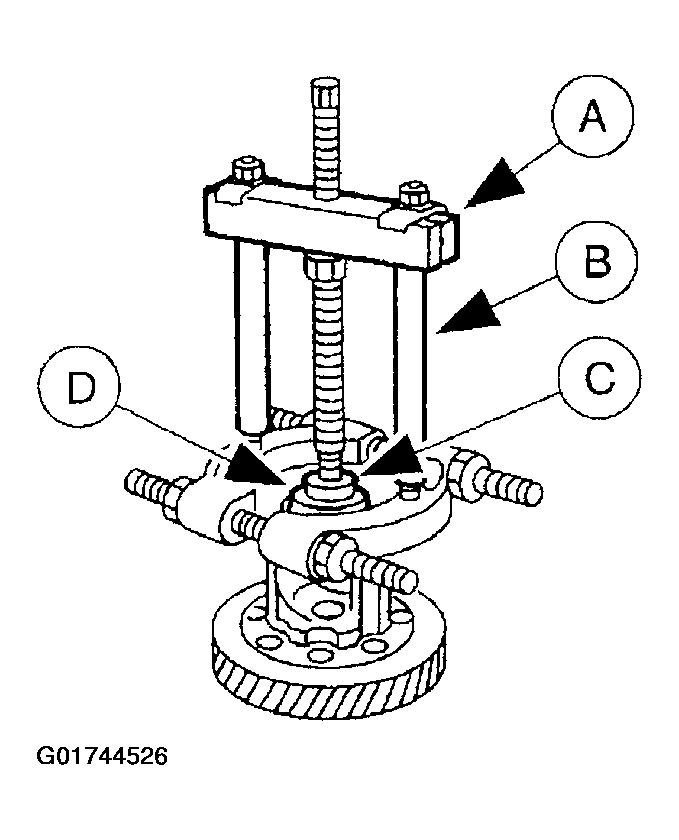

5. Use (A) Bearing Puller Attachment, (B) Push-Puller Legs, and (C) Step Plate to remove the (D) differential bearing (speedometer drive gear end).
Fig 5: Removing Differential Bearing
Courtesy of FORD MOTOR CO.
6. Remove the speedometer drive gear.

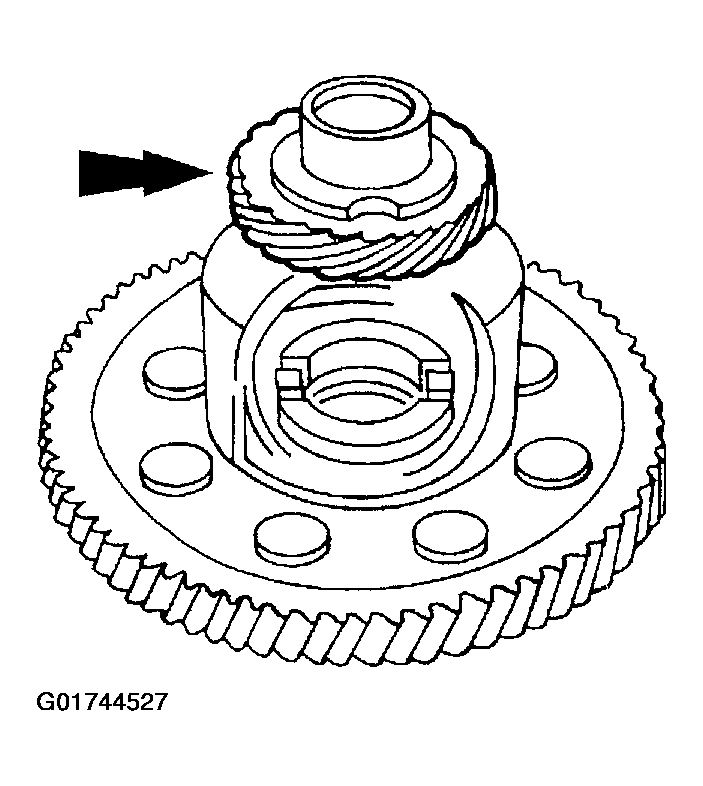

Fig 6: Removing Speedometer Drive Gear
Courtesy of FORD MOTOR CO.

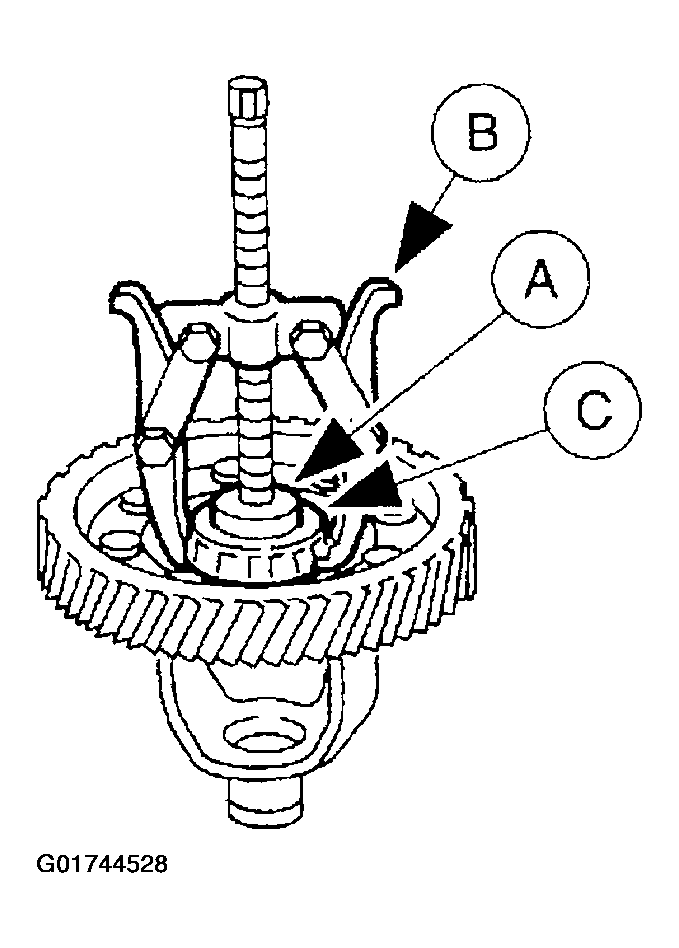

7. Use (A) Step Plate and (B) Puller-Differential Side Bearing to remove the (C) differential bearing (ring gear end).

Fig 7: Removing Differential Bearing

Courtesy of FORD MOTOR CO.
