Fluid Pump Assembly: Disassembly

  1. Remove the pump cover bolts in the sequence shown.

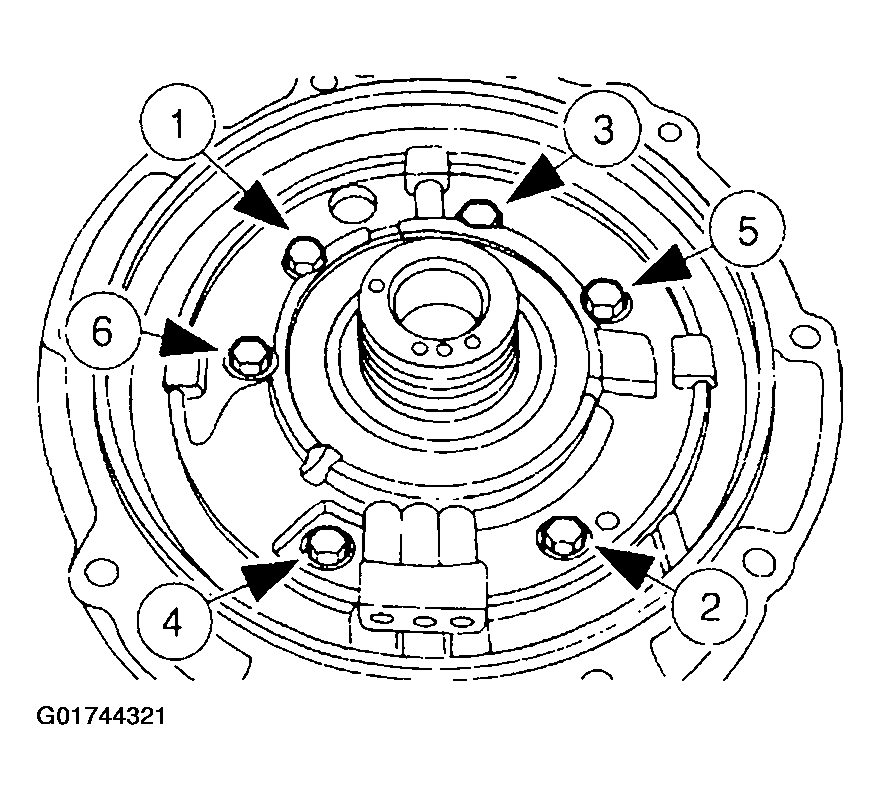

    2. Fig 1: Pump Cover Bolts Removal Sequence
    G01744321Courtesy of FORD MOTOR CO.
  2. Remove the thrust washer.

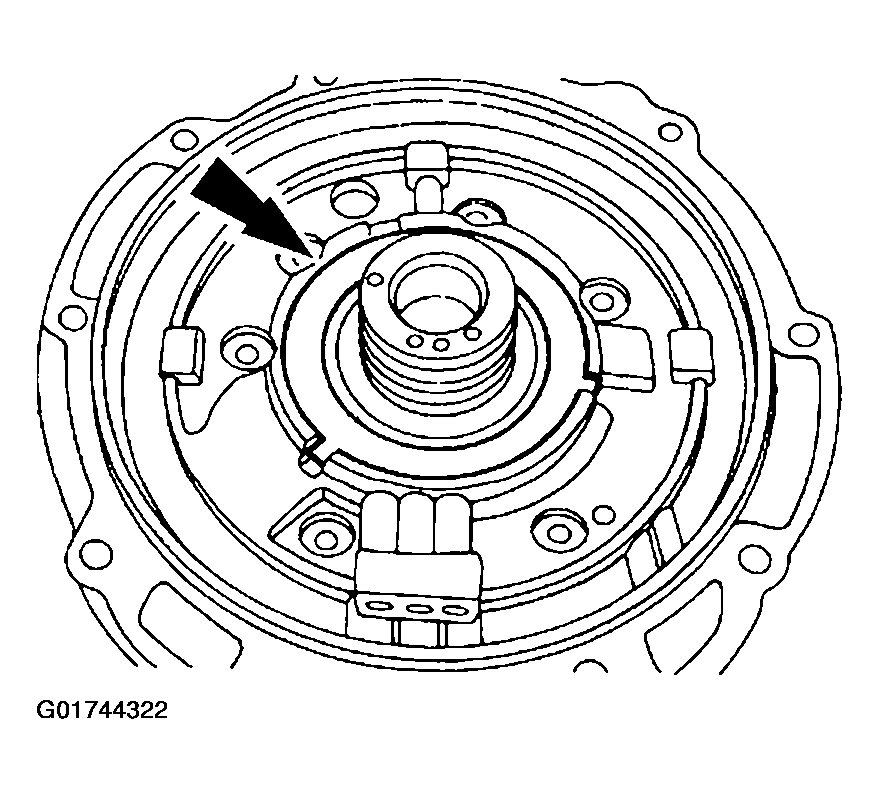

    3. Fig 2: Removing Thrust Washer
    G01744322Courtesy of FORD MOTOR CO.
  3. Remove the pump cover.

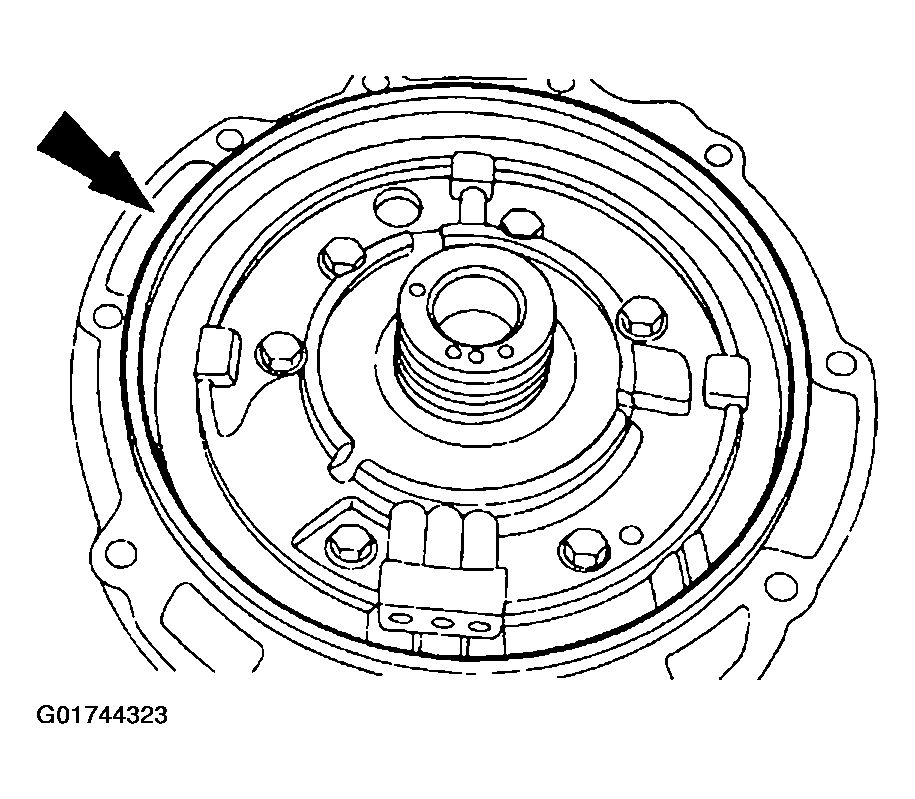

    4. Fig 3: Removing Pump Cover
    G01744323Courtesy of FORD MOTOR CO.
    NOTE: Make an alignment mark between the inner and outer rotor. Do not use a punch to make the alignment mark.
  4. Remove the flange and the inner and outer rotors.
    1. Remove the flange.
    2. Remove the inner rotor.
    3. Remove the outer rotor.

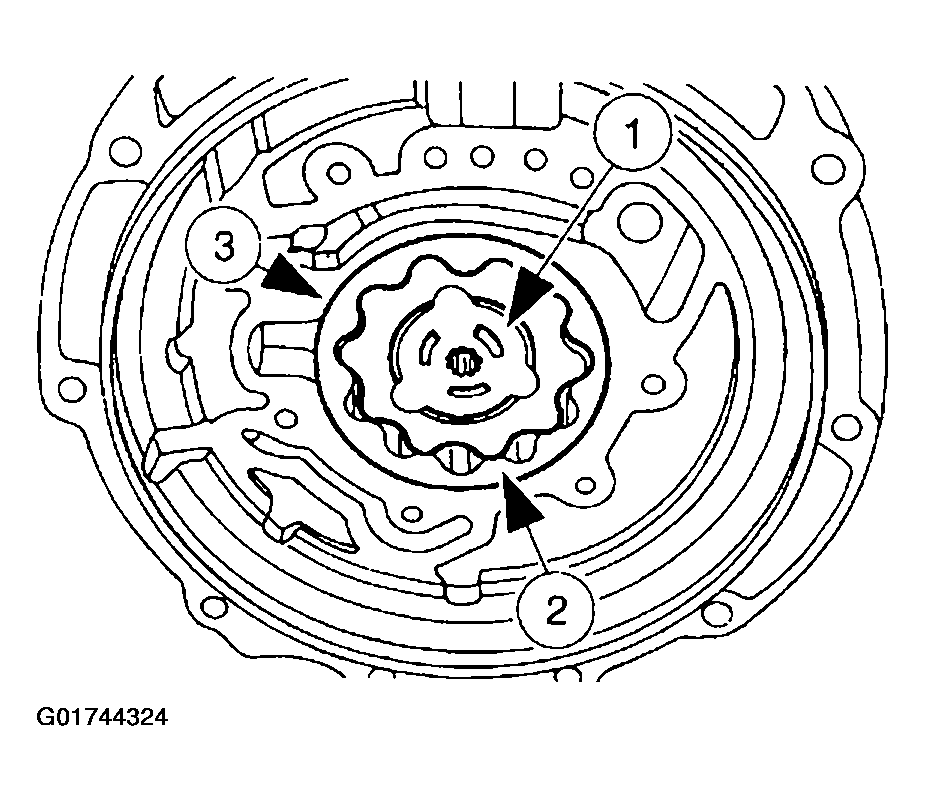

    5. Fig 4: Removing Flange & Inner & Outer Rotors
    G01744324Courtesy of FORD MOTOR CO.
  5. Remove the spool valve plug.

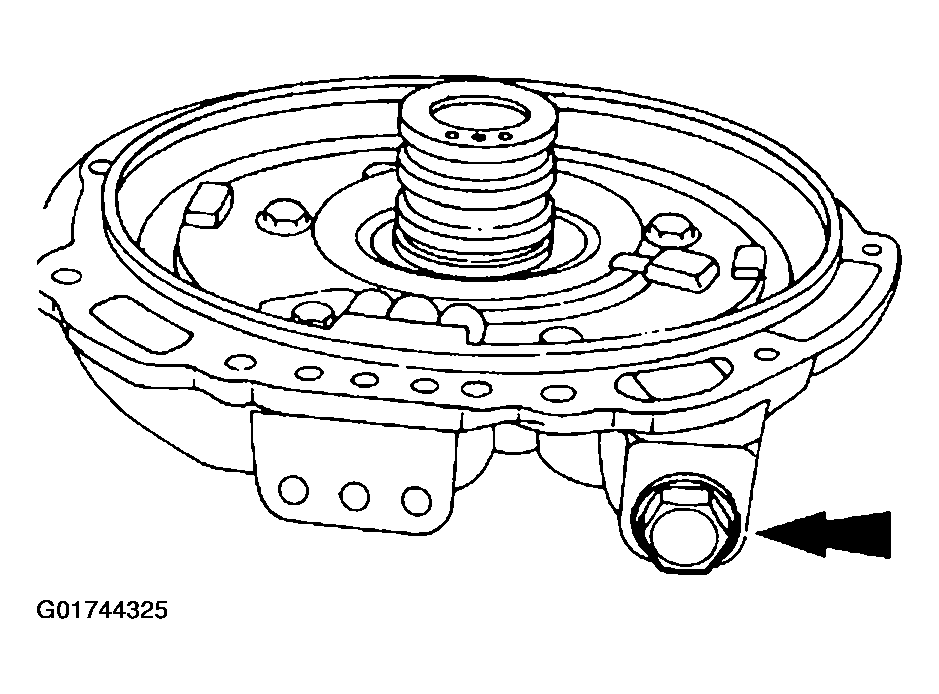

    6. Fig 5: Removing Spool Valve Plug
    G01744325Courtesy of FORD MOTOR CO.
  6. Remove the spool valve washer.

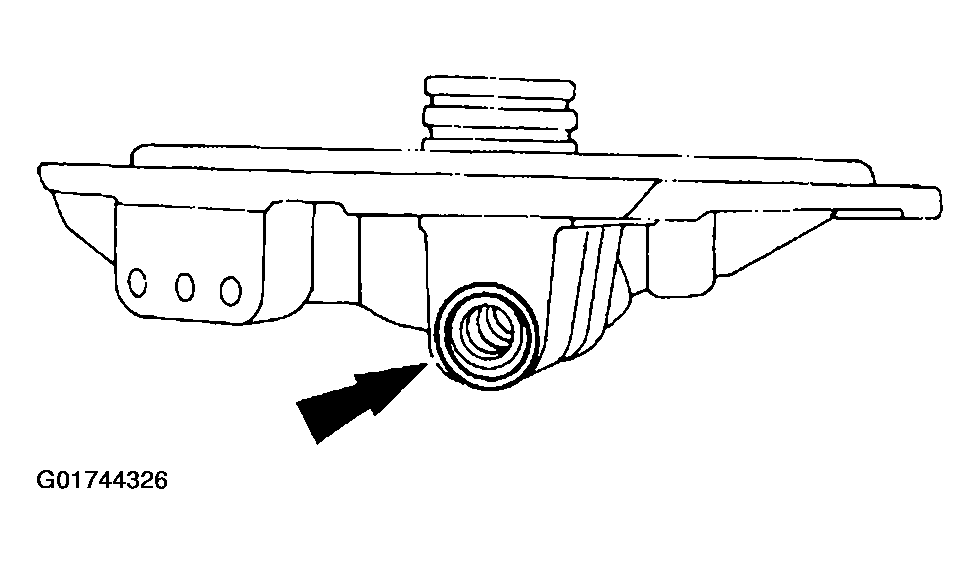

    7. Fig 6: Removing Spool Valve Washer
    G01744326Courtesy of FORD MOTOR CO.
  7. Remove the spool valve spring.

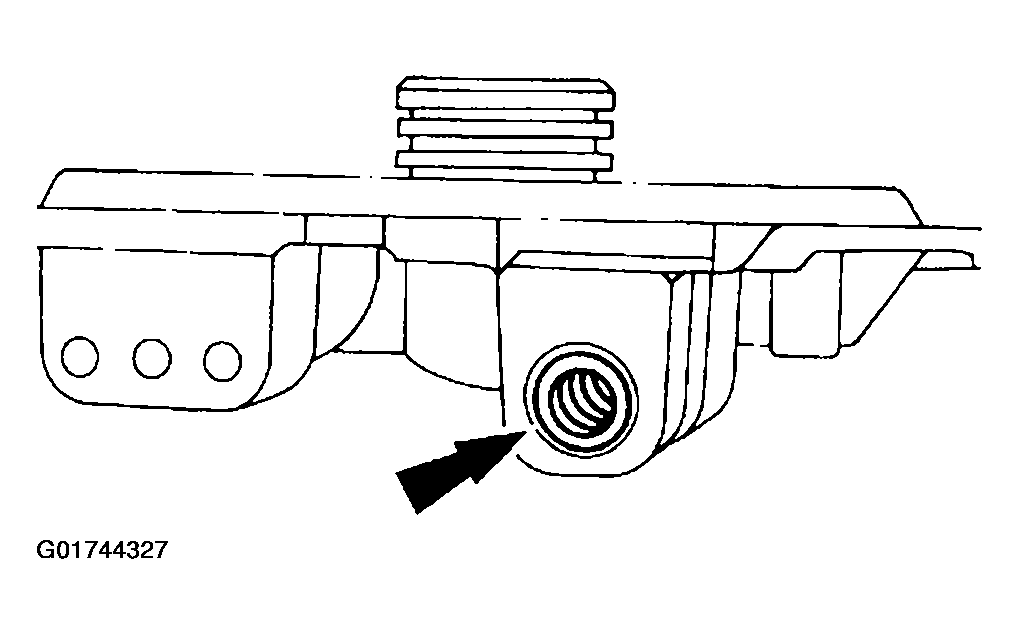

    8. Fig 7: Removing Spool Valve Spring
    G01744327Courtesy of FORD MOTOR CO.
  8. Remove the spool valve.

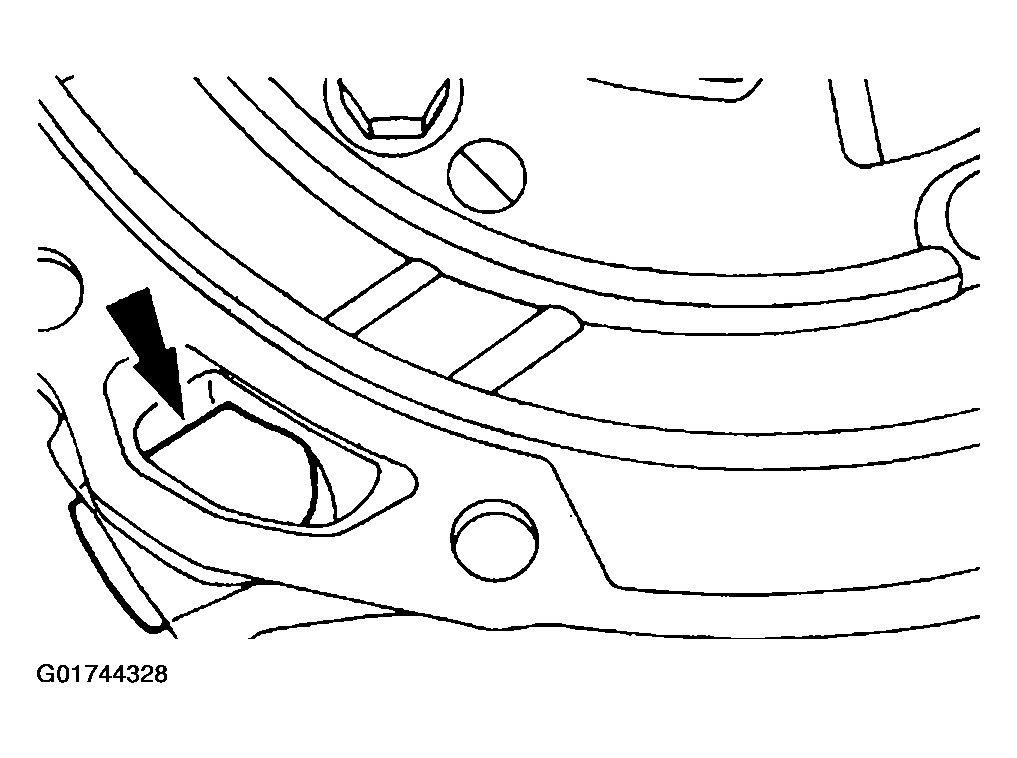

    9. Fig 8: Removing Spool Valve
    G01744328Courtesy of FORD MOTOR CO.

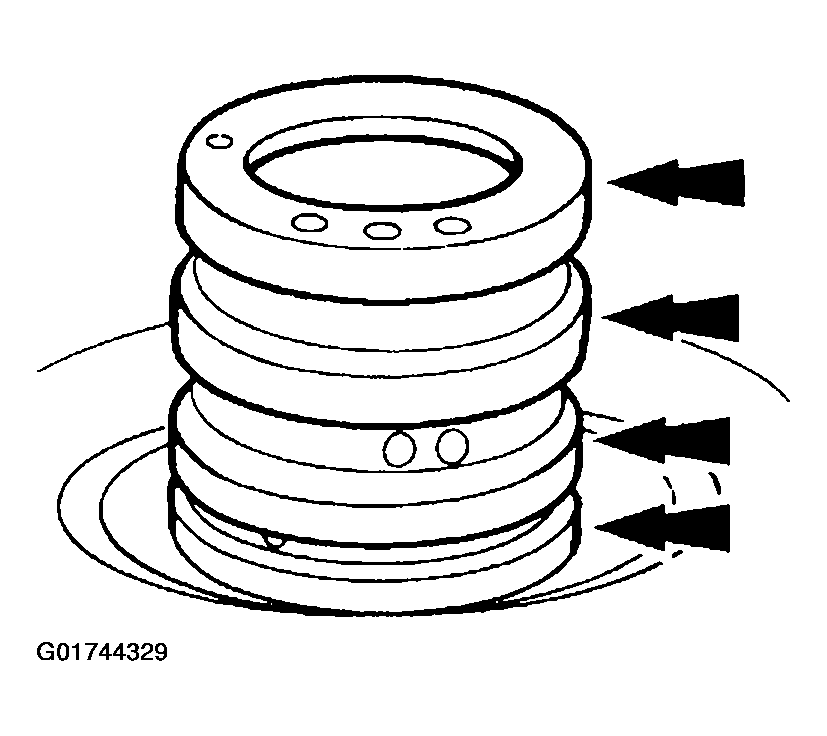

  9. Remove the oil distributor sleeve seals from the pump cover and discard the seals.
    10. Fig 9: Removing Oil Distributor Sleeve Seals From Pump Cover
    G01744329Courtesy of FORD MOTOR CO.
