Main Control Valve Body-Premain: Disassembly

NOTE: Each valve should slide in and out of its bore under its own weight. When a valve will not slide out under its own weight, depending on the valve, push it out with a wire or place the valve body open-side down and lightly tap it with a soft hammer. Never scratch or damage a valve bore. Do not drop the valves or use a valve that has been damaged. Before assembling the valve body, be certain that all valves are clean and lubricated with Motorcraft MERCON® Multi-Purpose Automatic Transmission Fluid XT-2-QDX or equivalent meeting Ford specification MERCON.

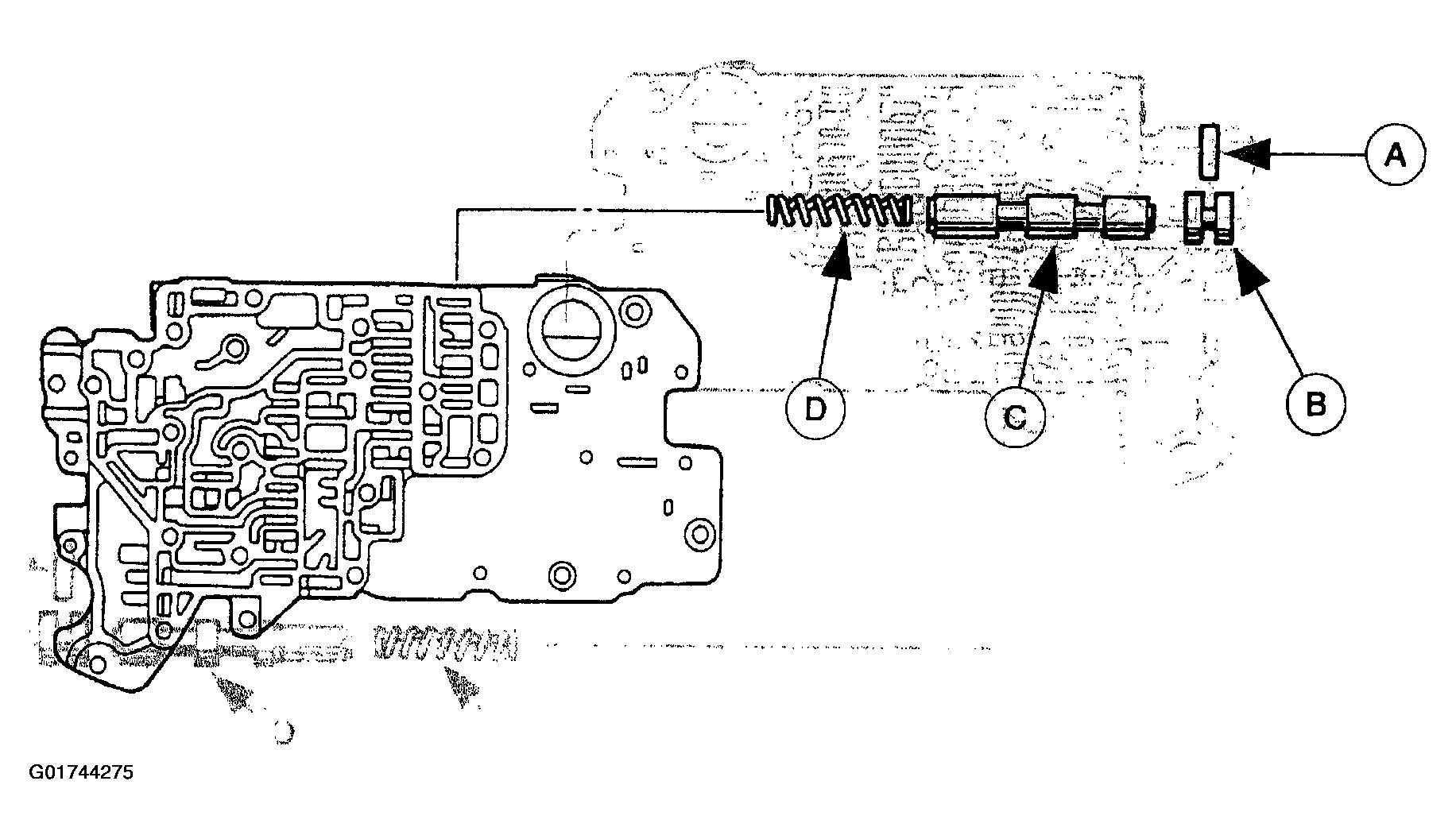

Fig 1: Removing Stop Pin, Stop Plug, 2-3 Shift Valve & Bypass Valve Spring

Courtesy of FORD MOTOR CO.

Remove the (A) stop pin, (B) stop plug, (C) 2-3 shift valve, and the (D) bypass valve spring.

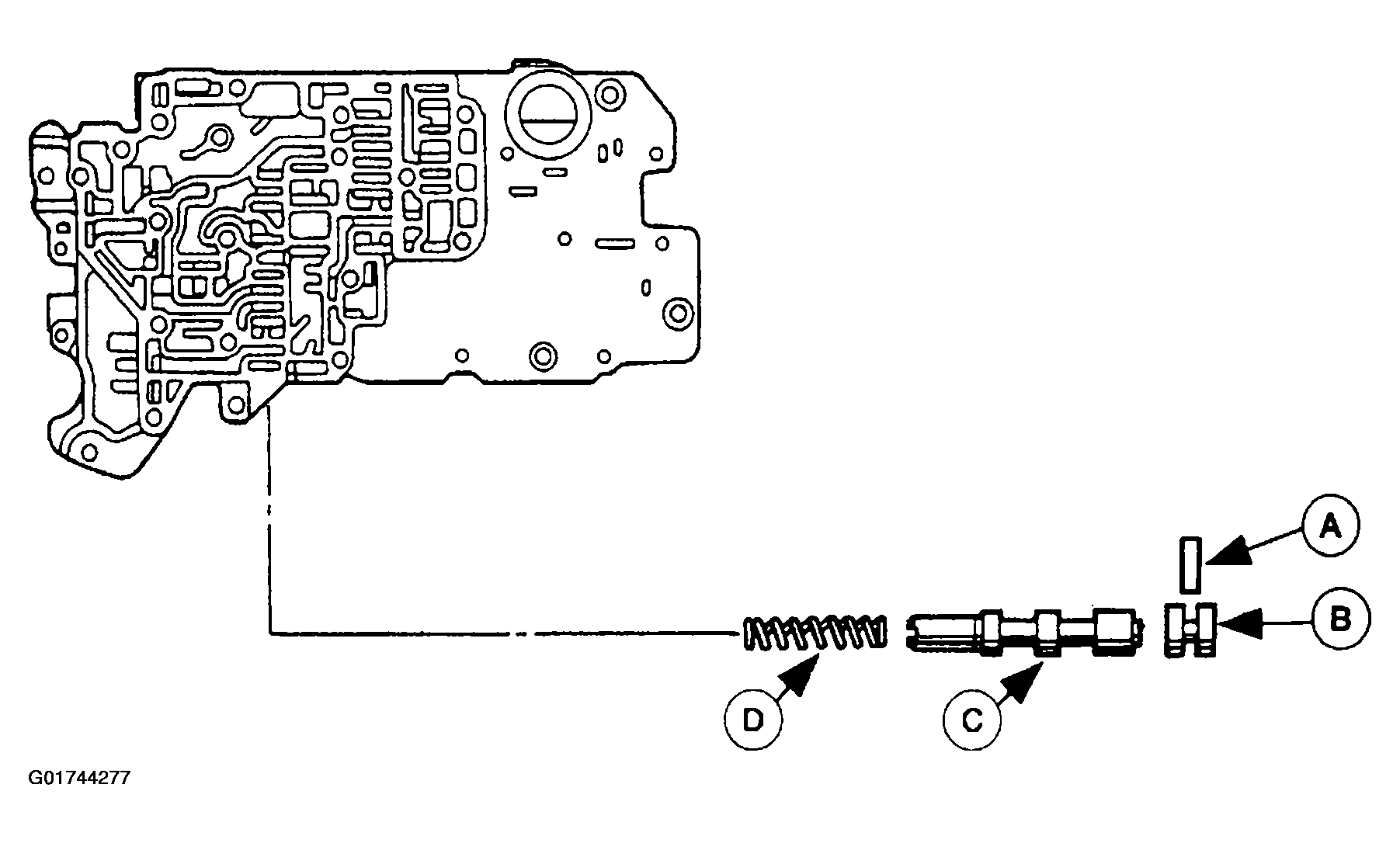

Fig 2: Removing Stop Pin, Stop Plug, Bypass Valve & 2-3 Shift Valve Spring

Courtesy of FORD MOTOR CO.

Remove the (A) stop pin, (B) stop plug, (C) bypass valve, and the (D) 2-3 shift valve spring.

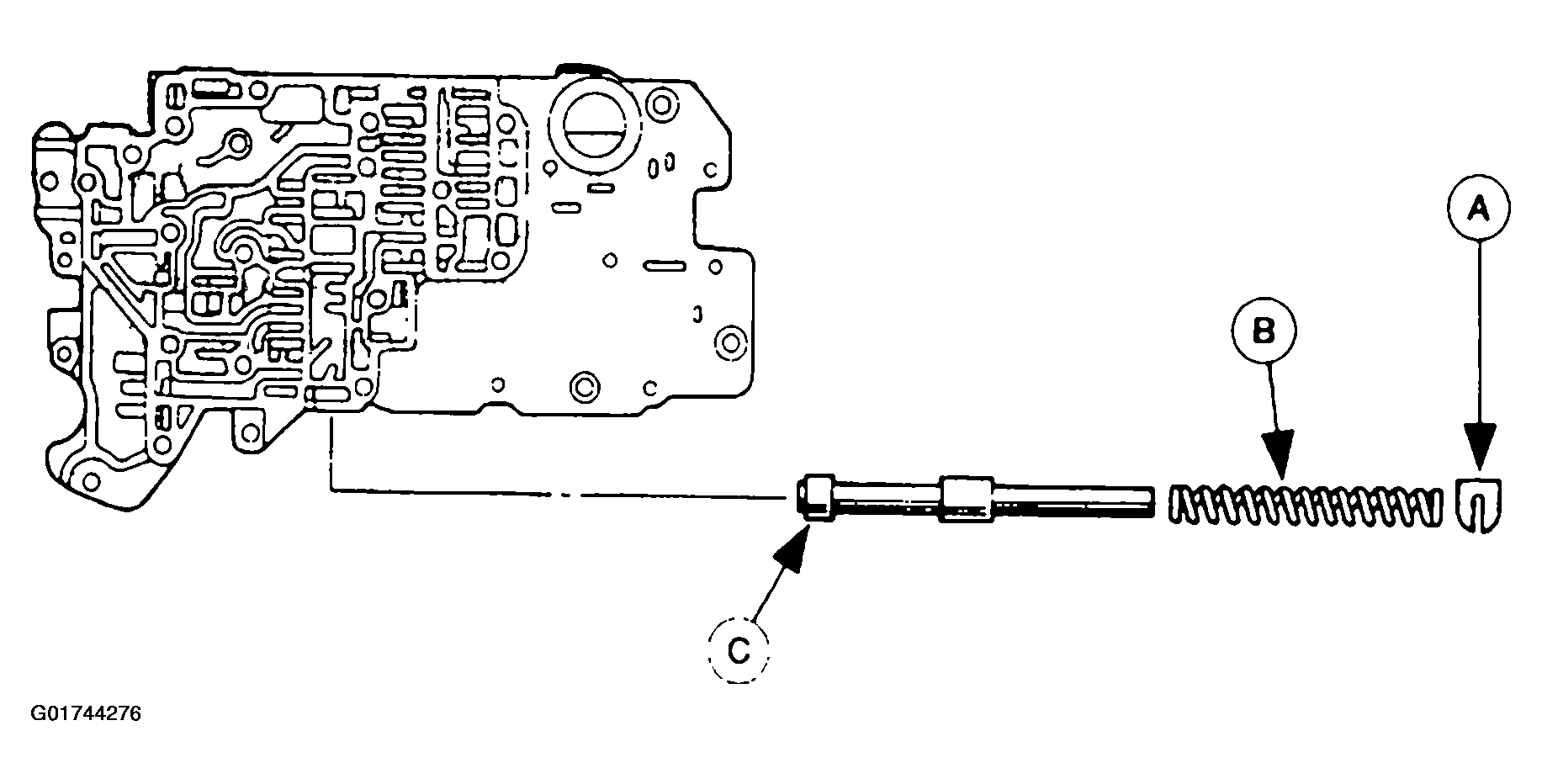

Fig 3: Removing Spring Retainer, Converter Relief Valve Spring, & Converter Relief Valve

Courtesy of FORD MOTOR CO.

Remove the (A) spring retainer, (B) converter relief valve spring, and the (C) converter relief valve.

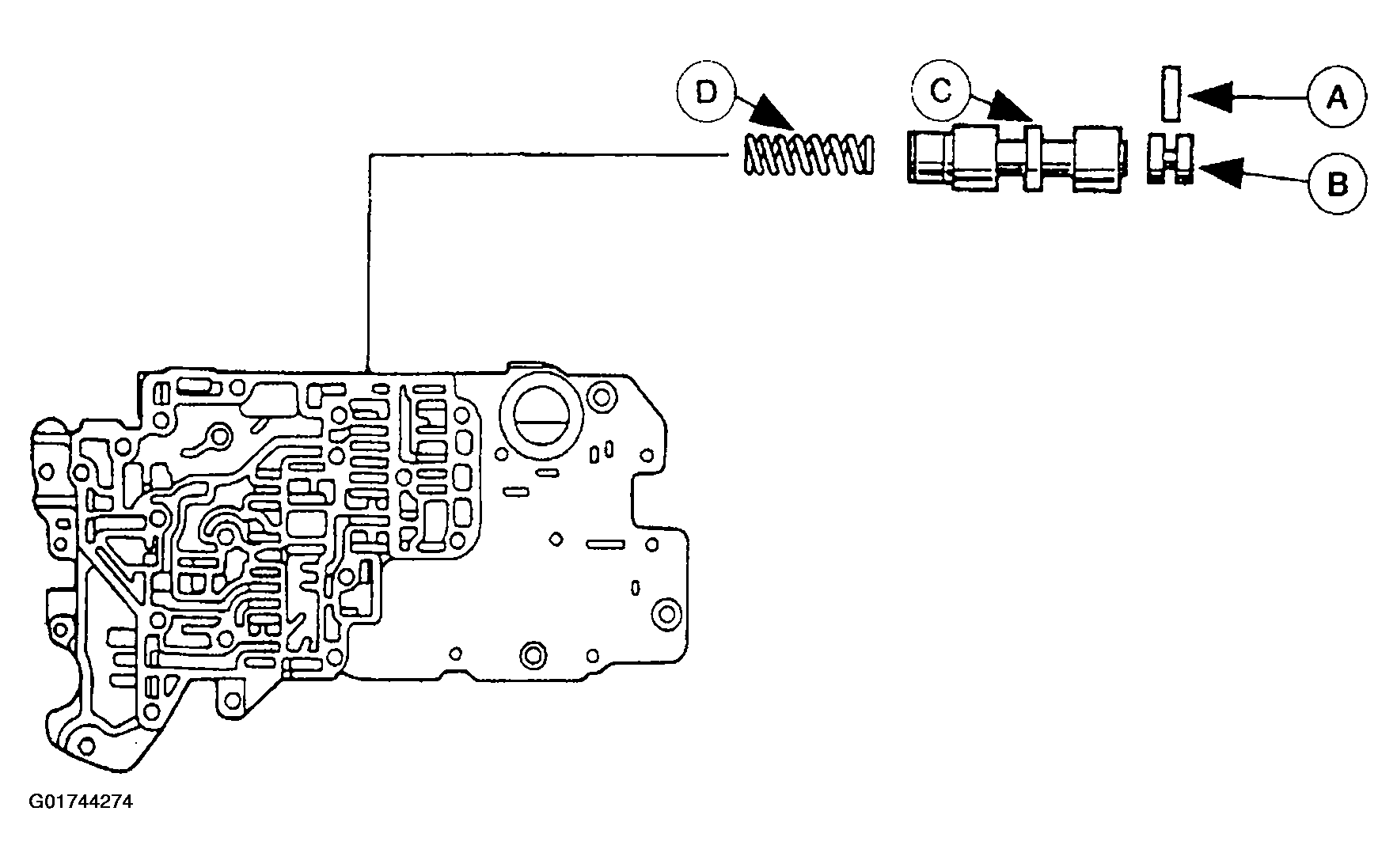

Fig 4: Removing Stop Pin, Stop Plug, TCC Control Valve & TCC CONTROL Valve Spring

Courtesy of FORD MOTOR CO.

Remove the (A) stop pin, (B) stop plug, (C) TCC control valve, and the (D) TCC control valve spring.
