Main Control Valve Body-Premain: Notes

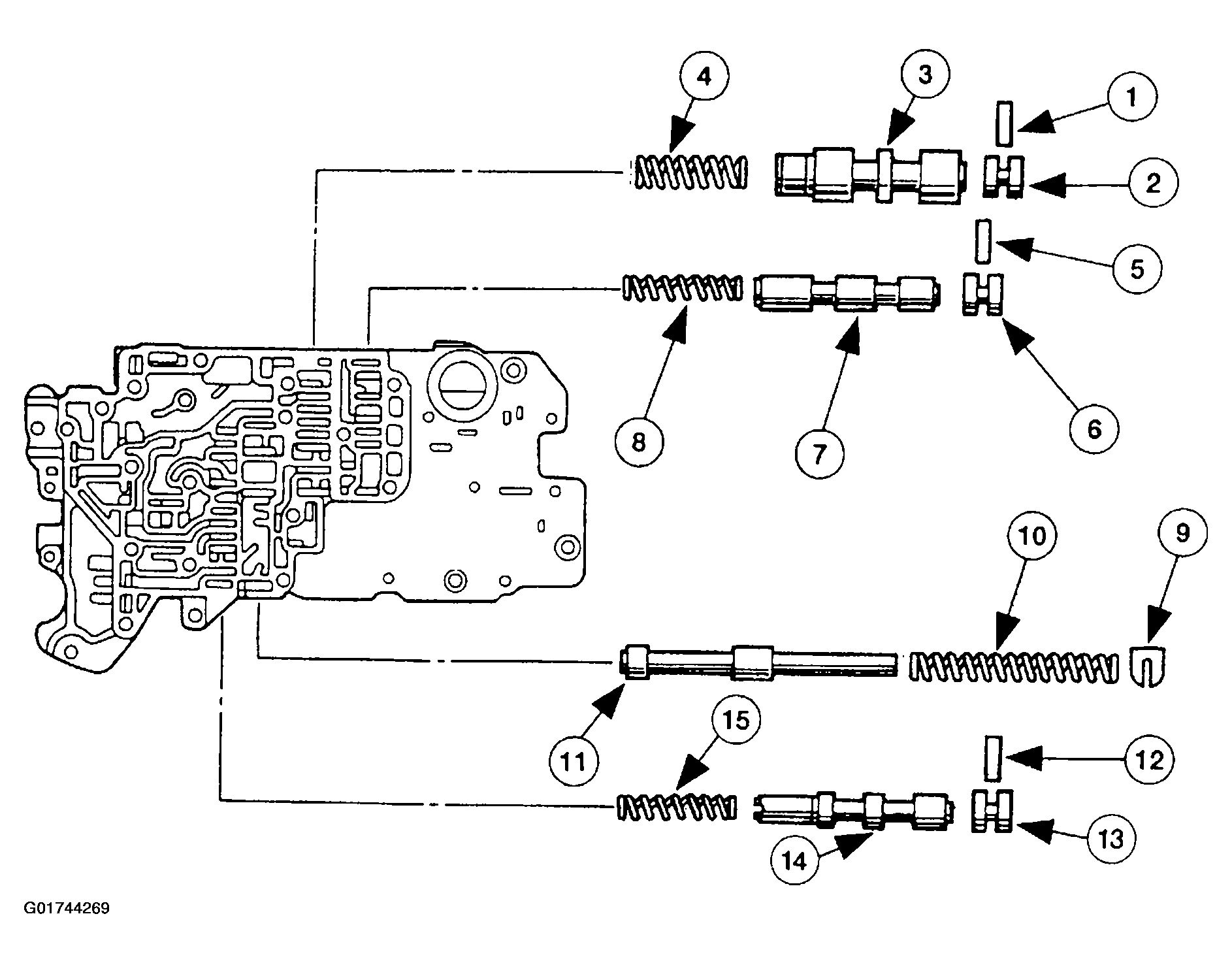

Fig 1: Identifying Premain Main Control Valve Body Components
G01744269Courtesy of FORD MOTOR CO.

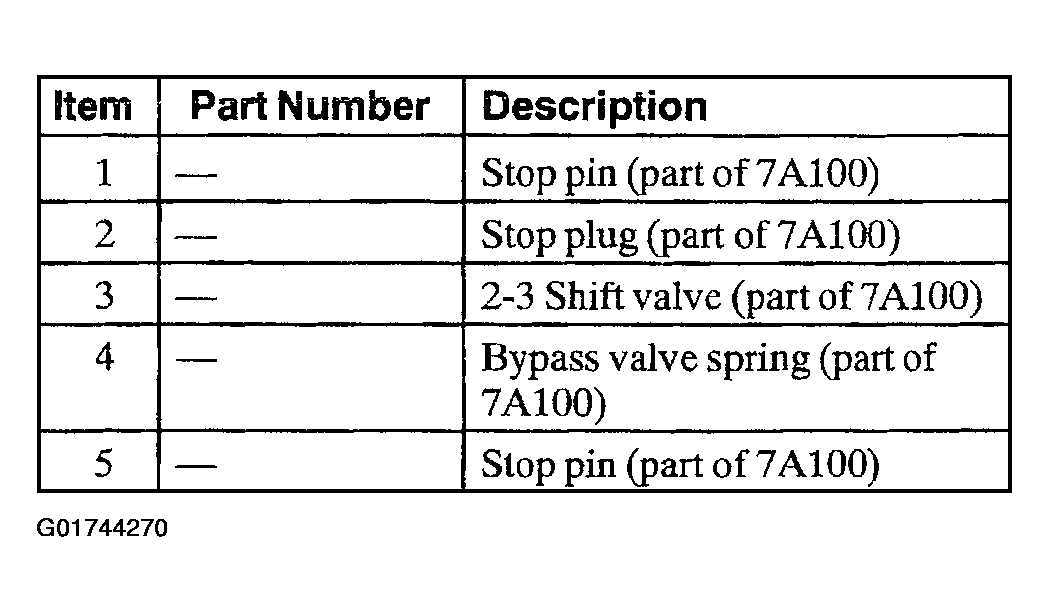

Fig 2: Premain Main Control Valve Body Components Legend (Items 1-5)
G01744270Courtesy of FORD MOTOR CO.

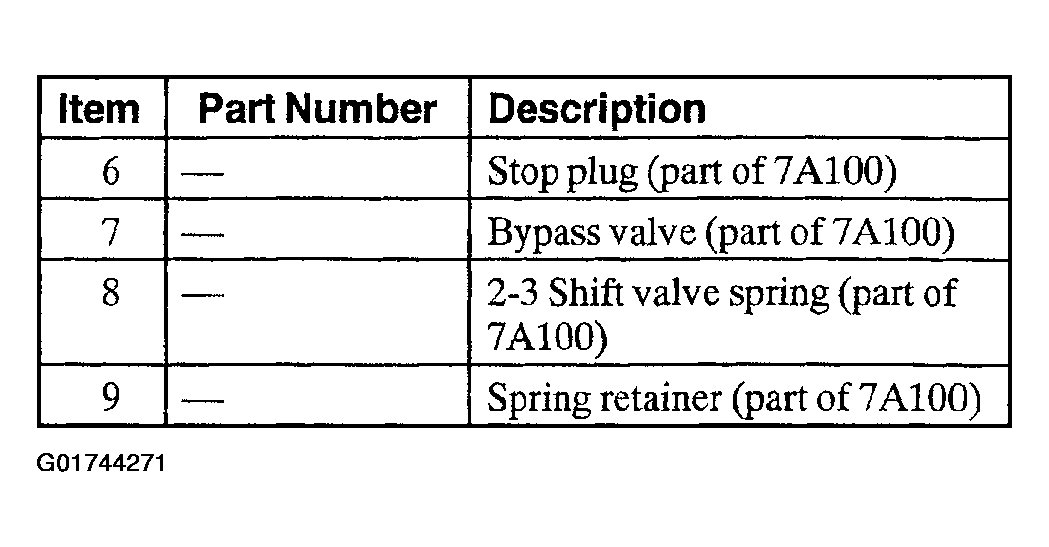

Fig 3: Premain Main Control Valve Body Components Legend (Items 6-9)
G01744271Courtesy of FORD MOTOR CO.
Fig 4: Premain Main Control Valve Body Components Legend (Items 10-12)
G01744272Courtesy of FORD MOTOR CO.

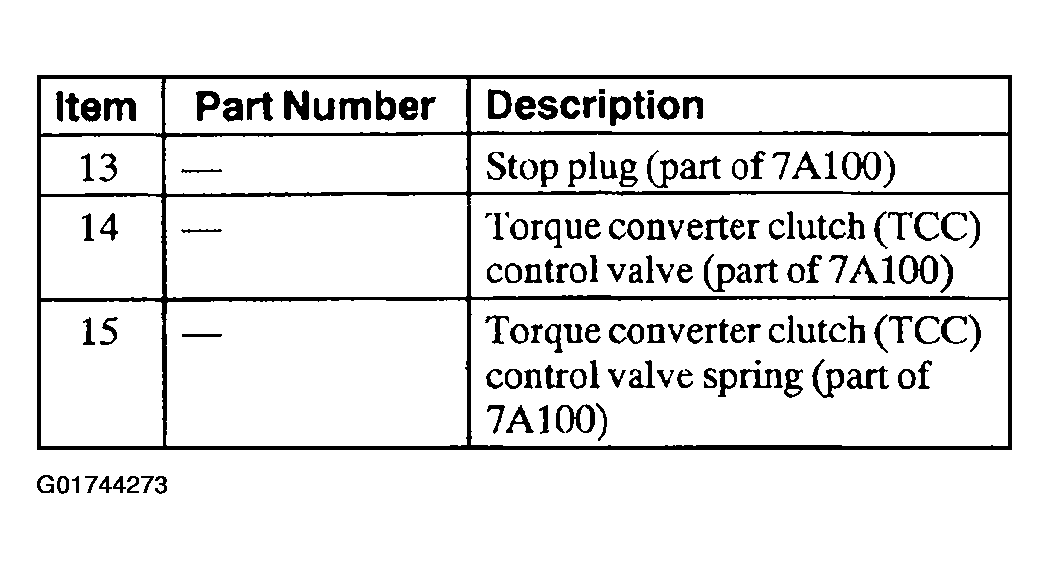

Fig 5: Premain Main Control Valve Body Components Legend (Items 13-15)
G01744273Courtesy of FORD MOTOR CO.
