Torque Converter Stator Support: Disassembly

  1. Remove the converter impeller hub seal.

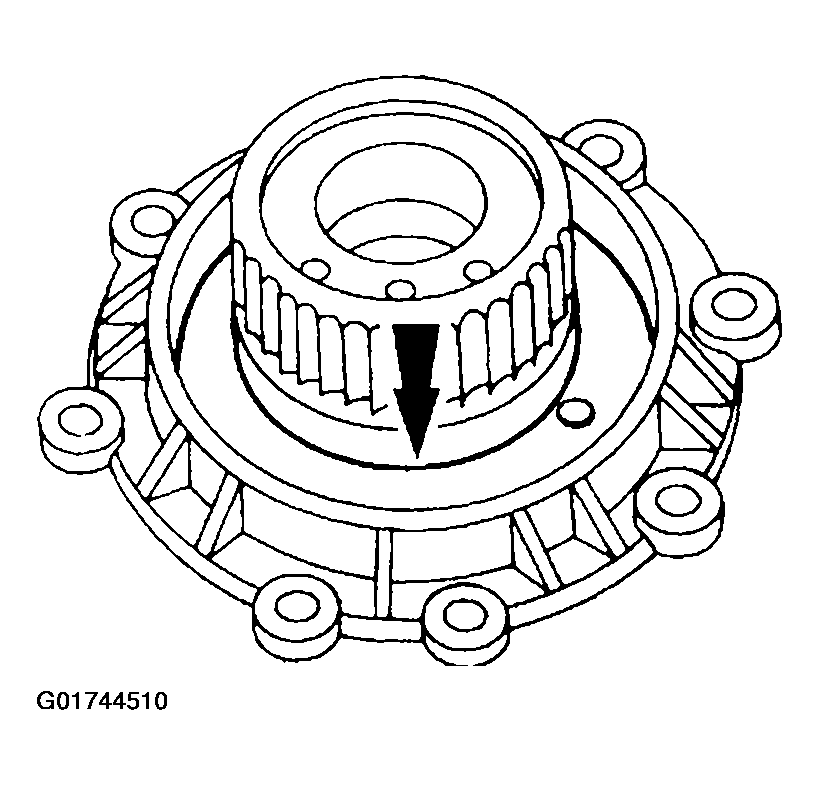

    2. Fig 1: Removing Converter Impeller Hub Seal
    G01744510Courtesy of FORD MOTOR CO.
  2. Remove the bearing outer race.
    1. Use a pin punch and hammer to carefully drive the bearing outer race from the torque converter stator support.

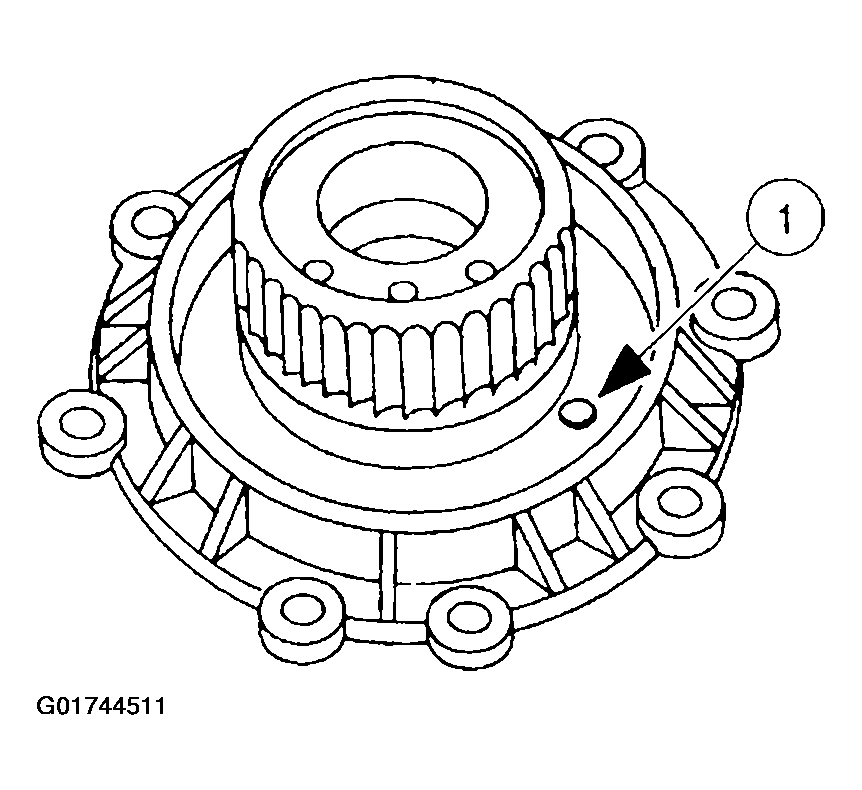

    3. Fig 2: Removing Bearing Outer Race
    G01744511Courtesy of FORD MOTOR CO.
  3. Remove the stator support O-ring.

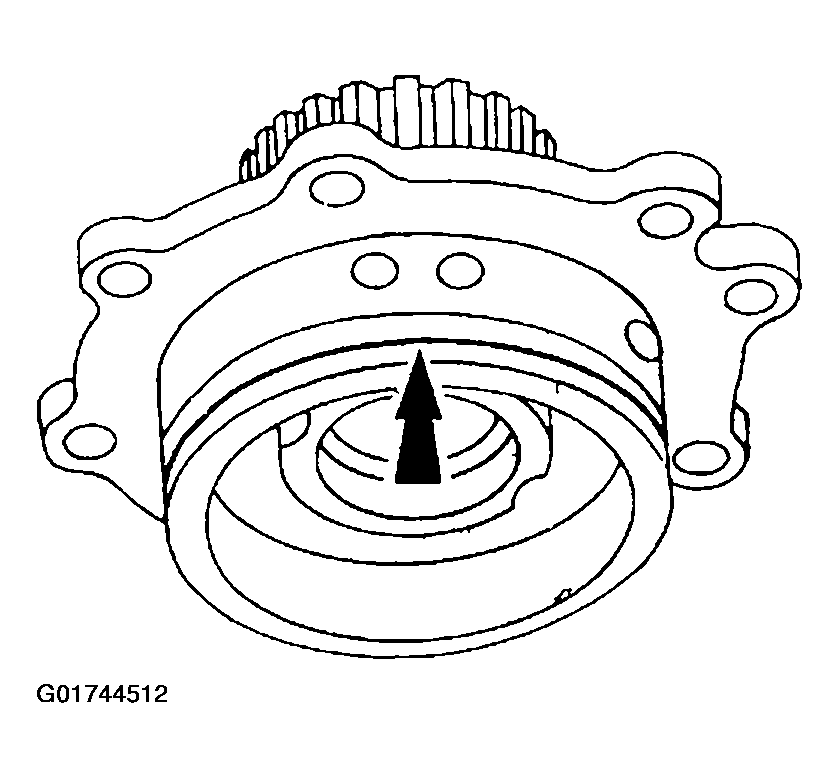

Fig 3: Removing Stator Support O-Ring
G01744512Courtesy of FORD MOTOR CO.
