Engine Cooling
>>
2.0L SPI engine
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
2.0L SPI engine

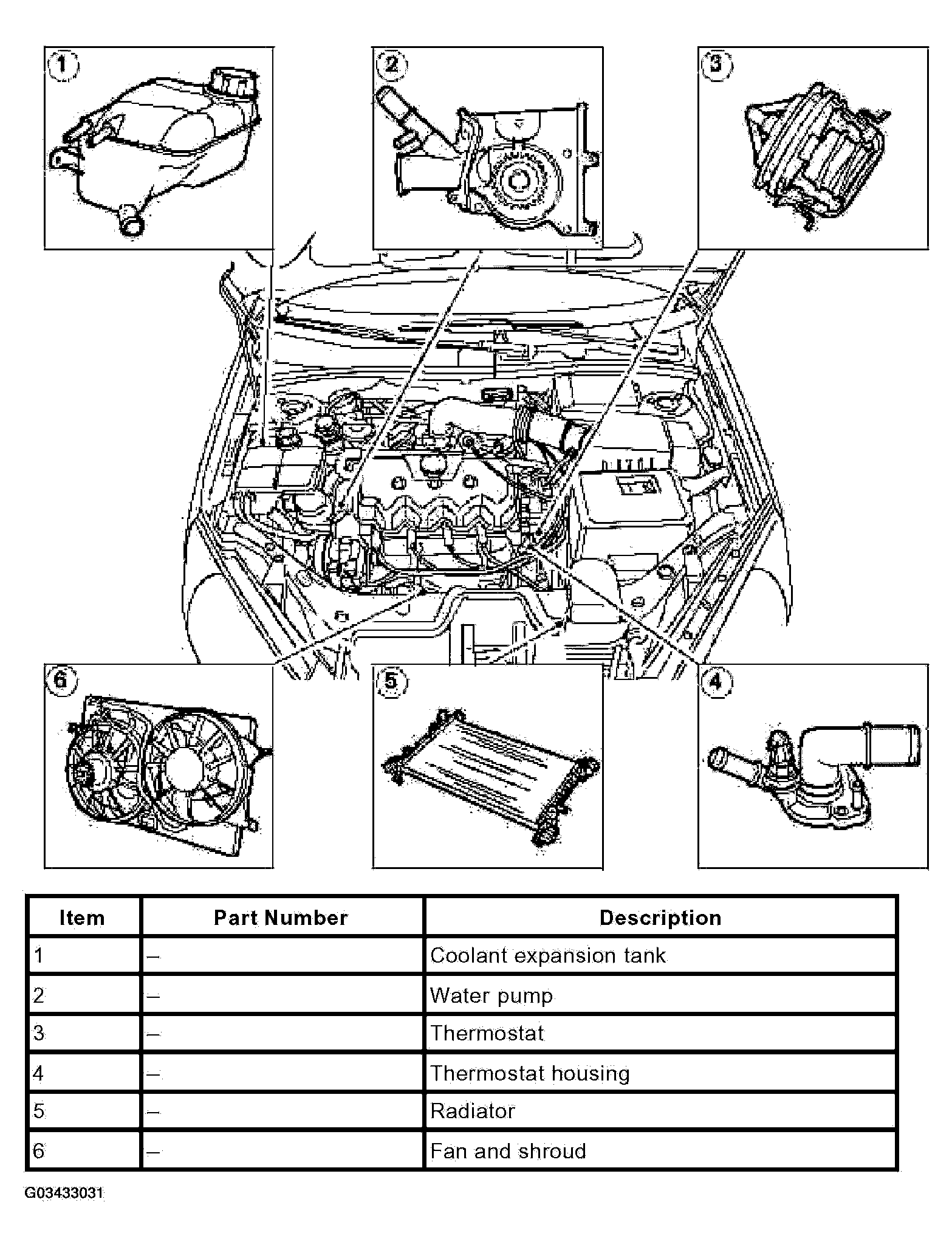

Fig 1: Identifying Engine Cooling System Components (2.0L SPI Engine)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
