Pinpoint Test O: The Panel/Floor Controls Do Not Operate Using The Front/Rear Auxiliary Climate Controls

WARNING: This page is about a different car, the 2003 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

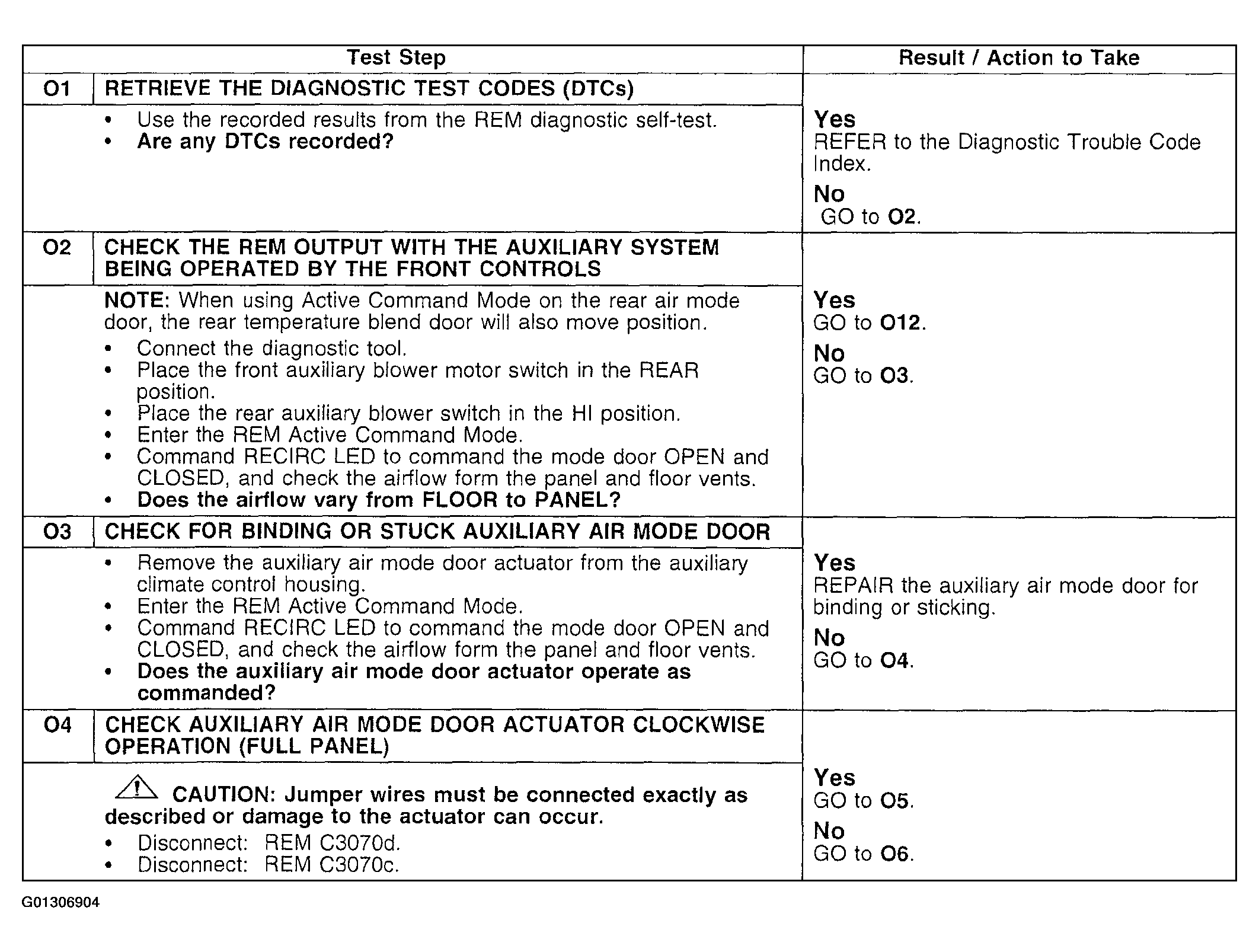

Fig 1: Pinpoint Test O: Panel/Floor Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps O1-O4)

Courtesy of FORD MOTOR CO.

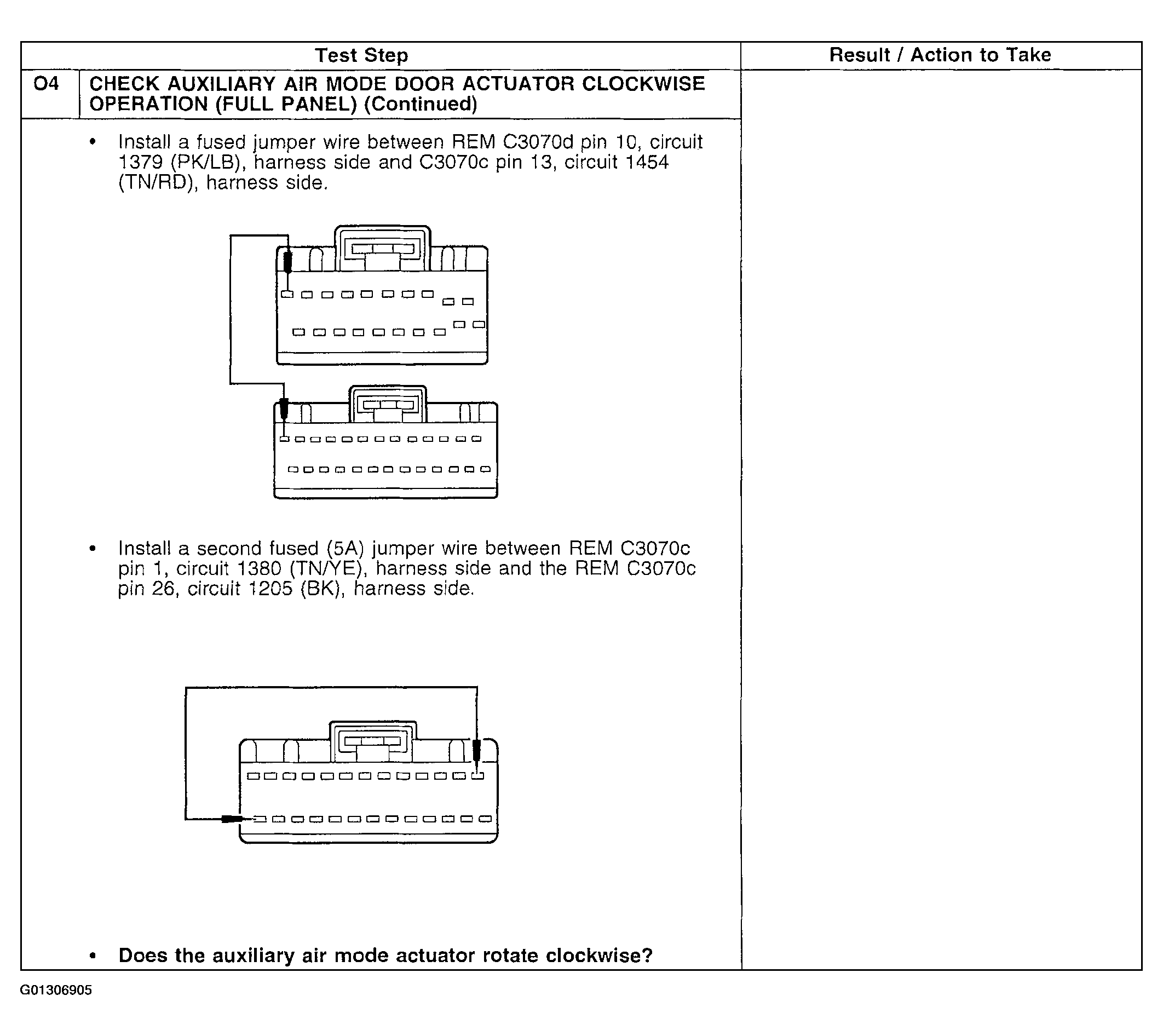

Fig 2: Pinpoint Test O: Panel/Floor Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps O4 Cont.)

Courtesy of FORD MOTOR CO.

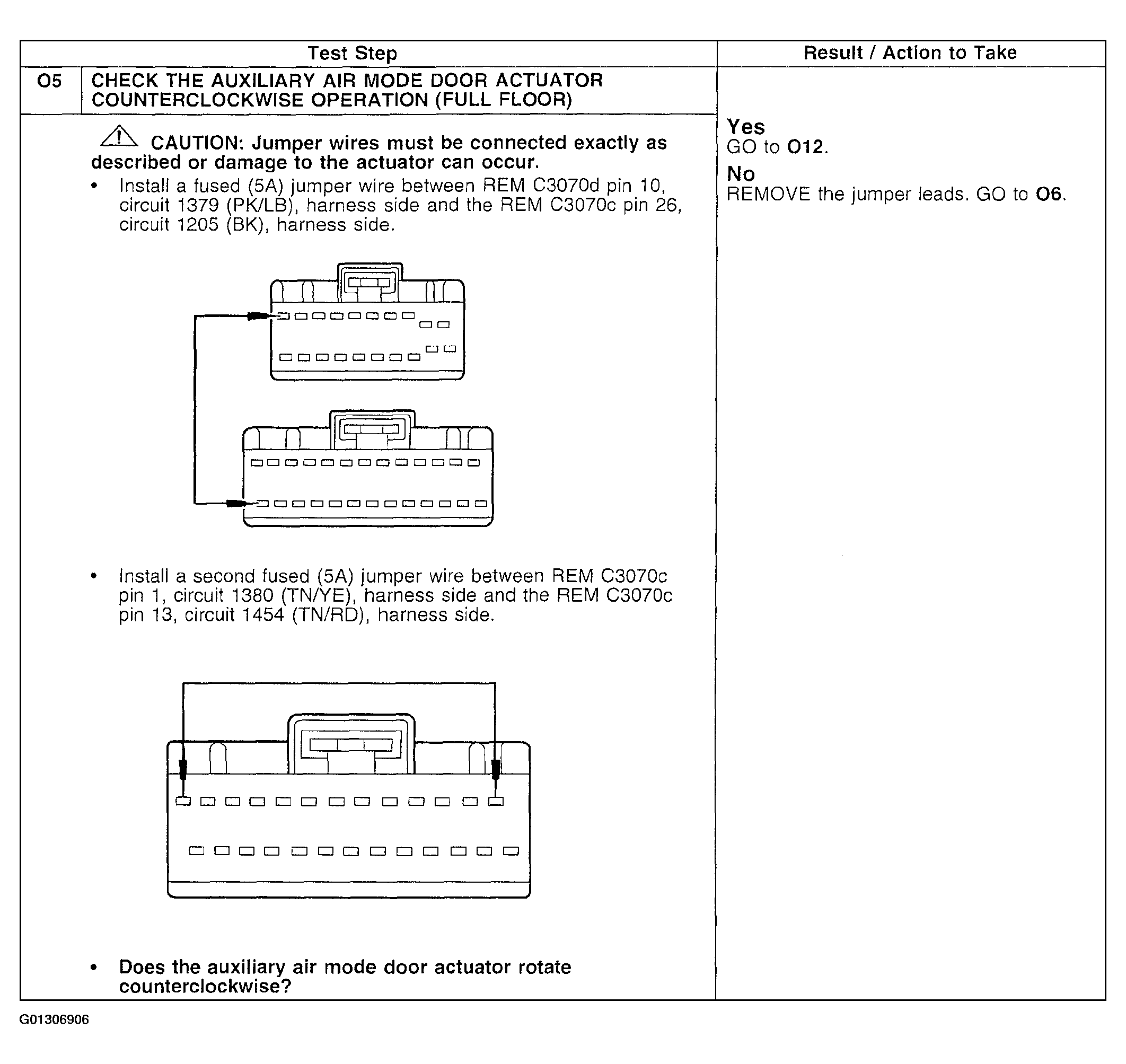

Fig 3: Pinpoint Test O: Panel/Floor Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps O5)

Courtesy of FORD MOTOR CO.

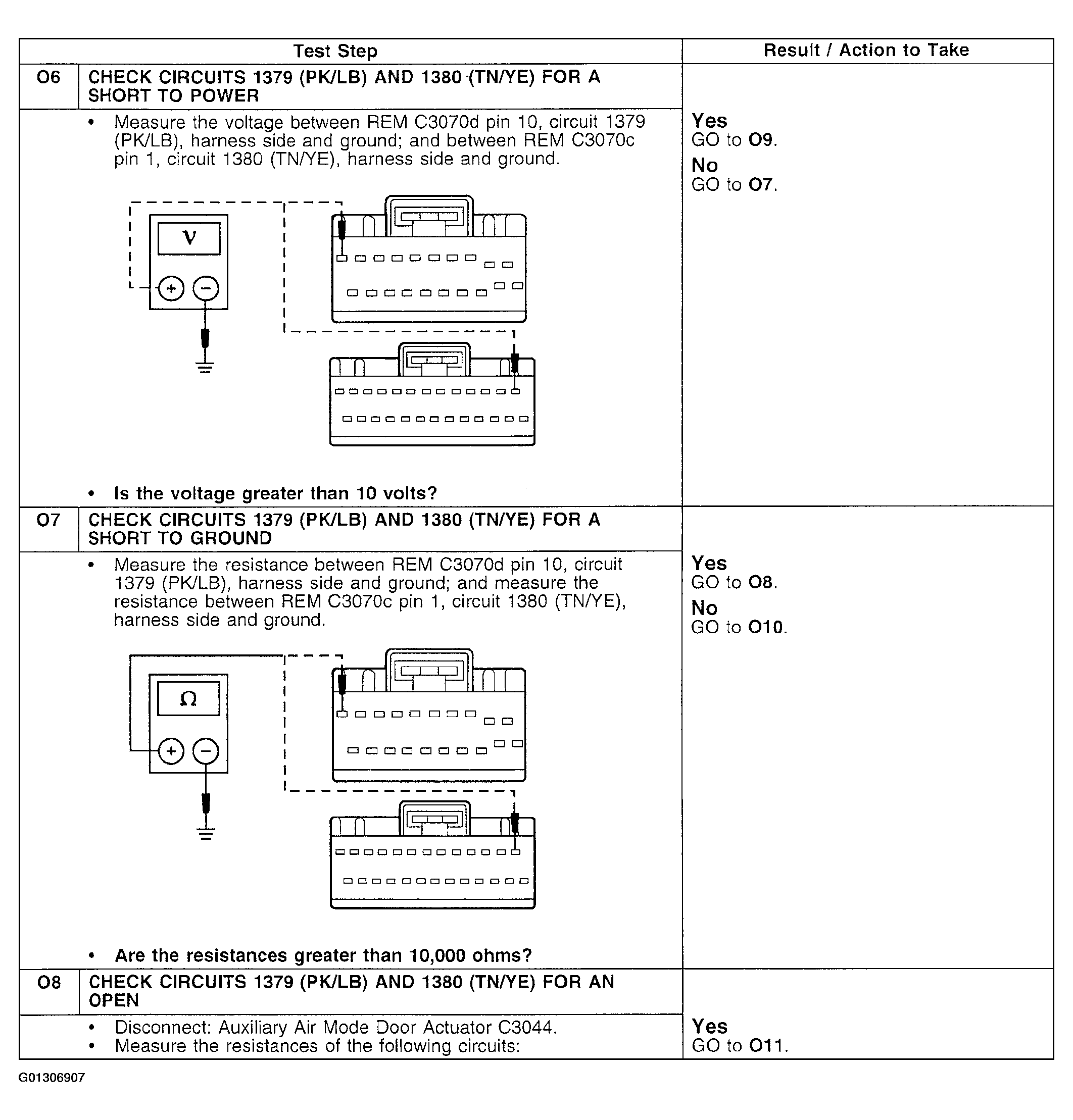

Fig 4: Pinpoint Test O: Panel/Floor Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps O6-O8)

Courtesy of FORD MOTOR CO.

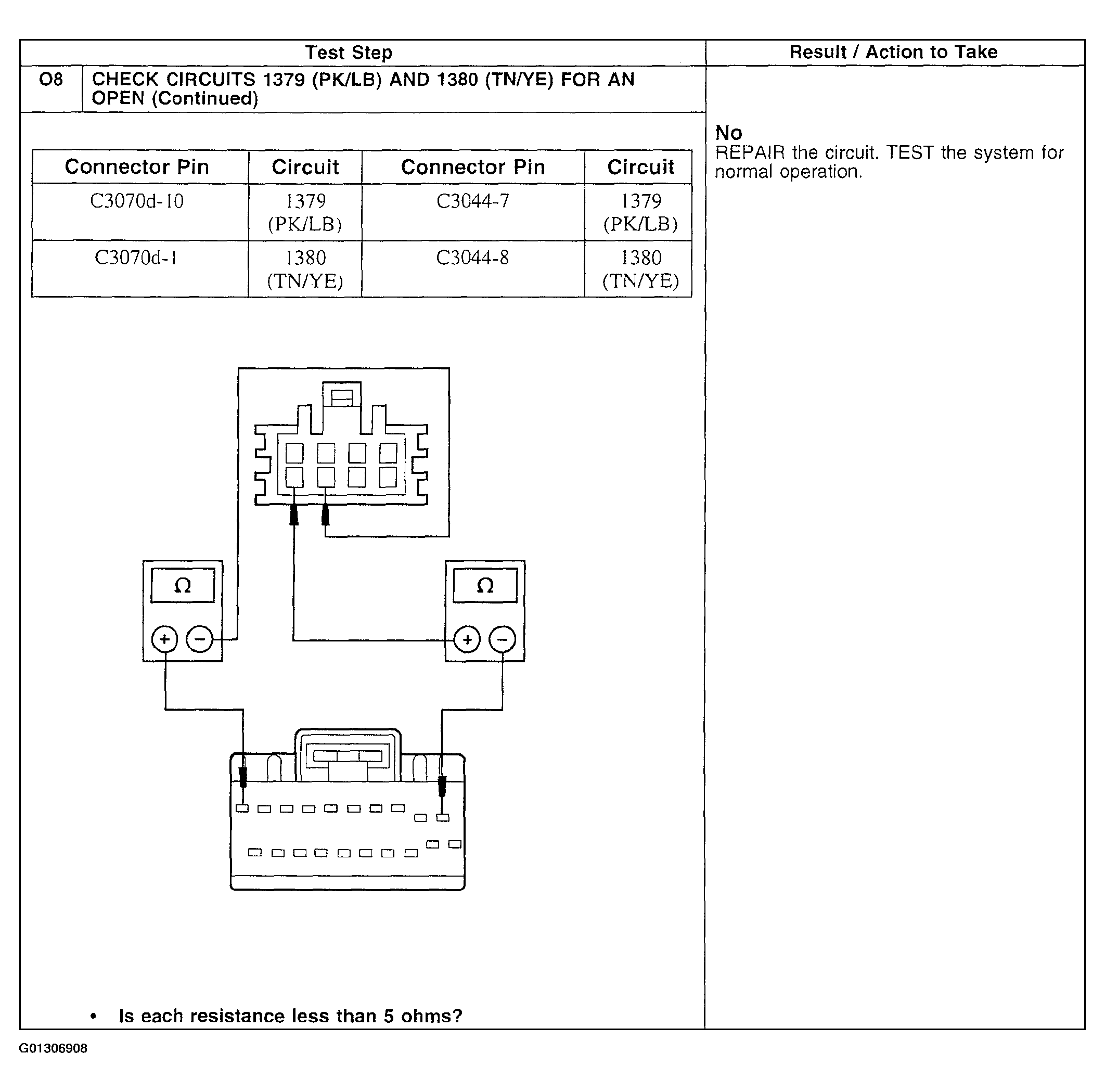

Fig 5: Pinpoint Test O: Panel/Floor Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps O8 Cont.)

Courtesy of FORD MOTOR CO.

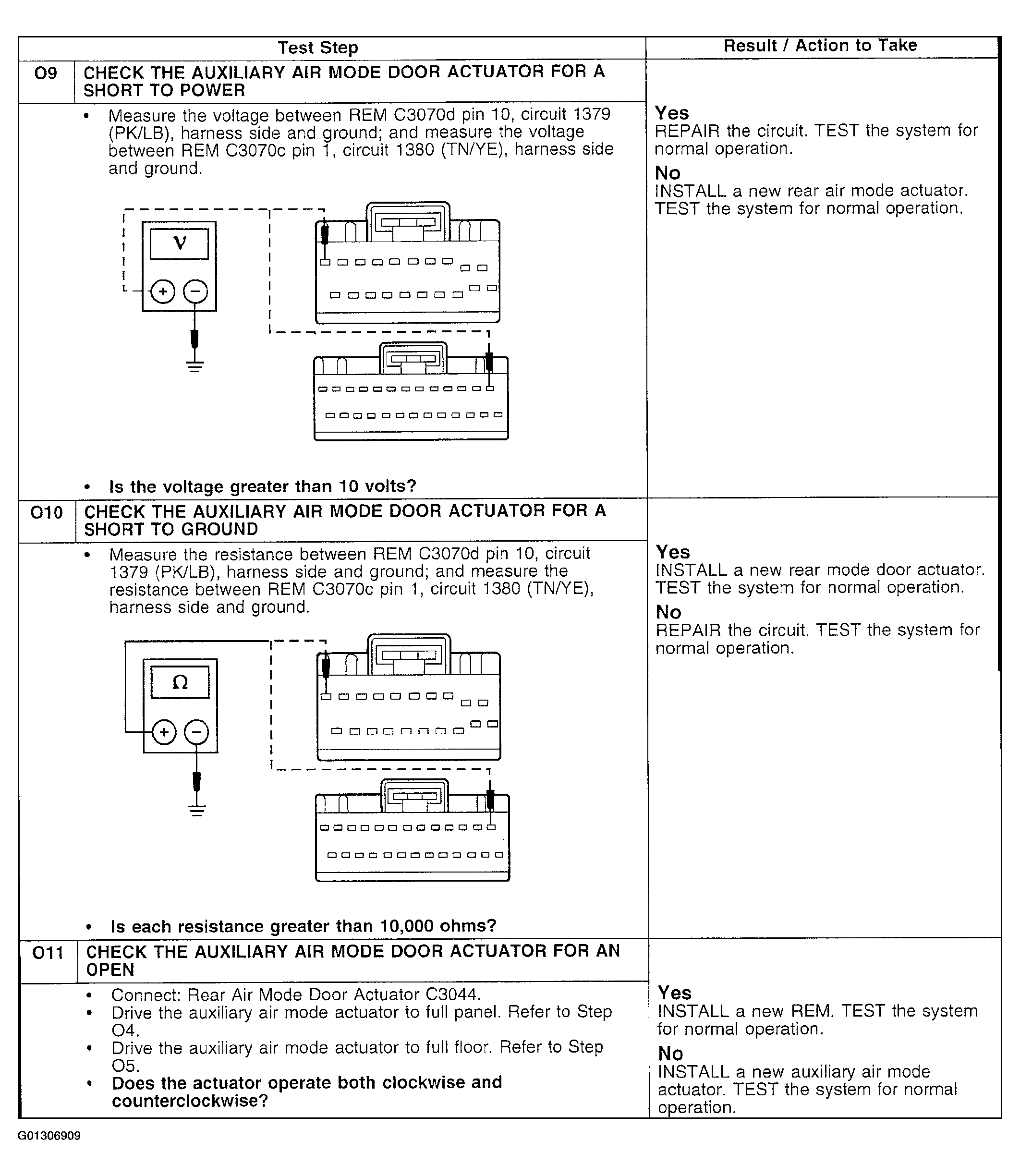

Fig 6: Pinpoint Test O: Panel/Floor Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps O9-O11)

Courtesy of FORD MOTOR CO.

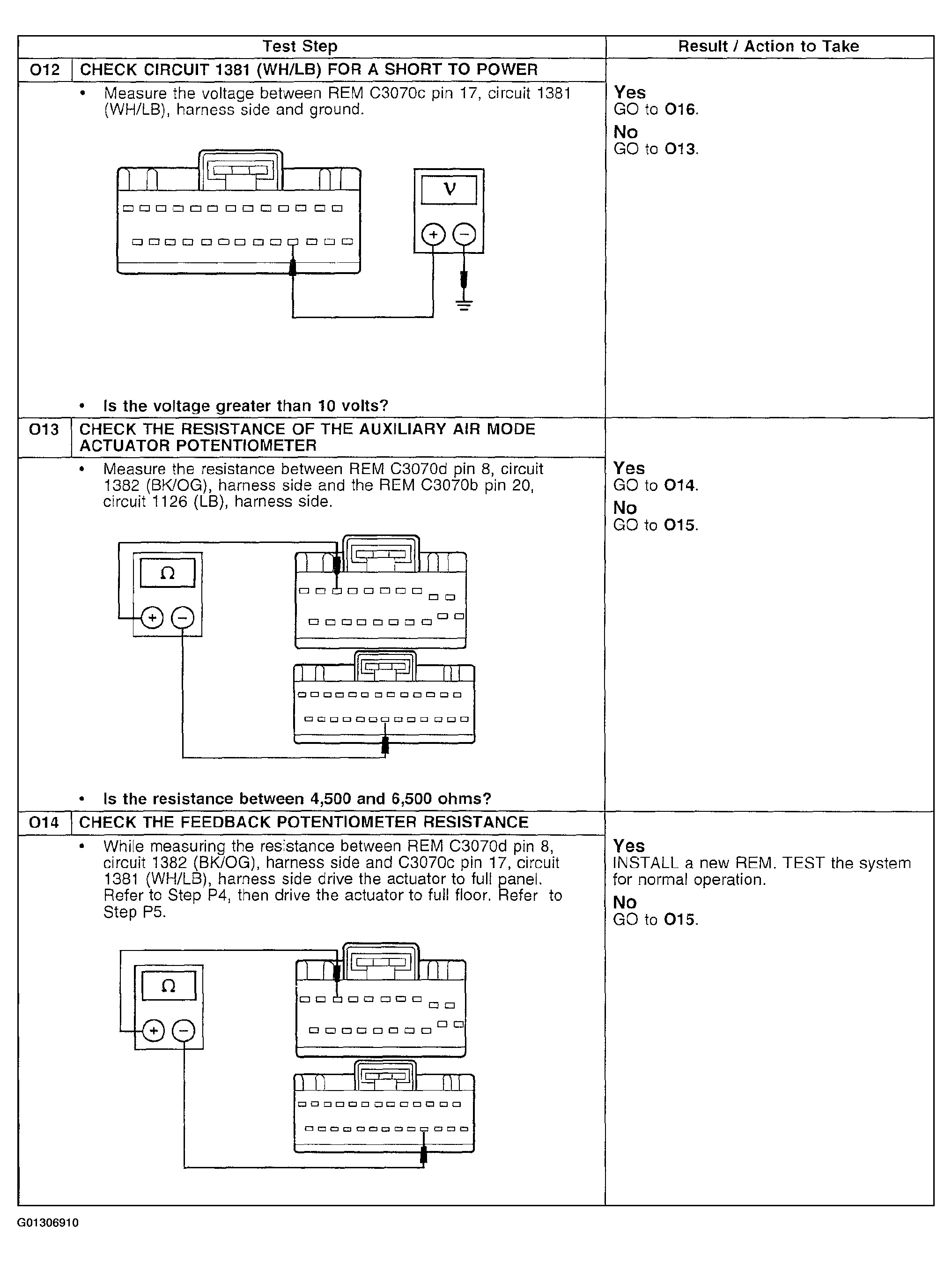

Fig 7: Pinpoint Test O: Panel/Floor Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps O12-O14)

Courtesy of FORD MOTOR CO.

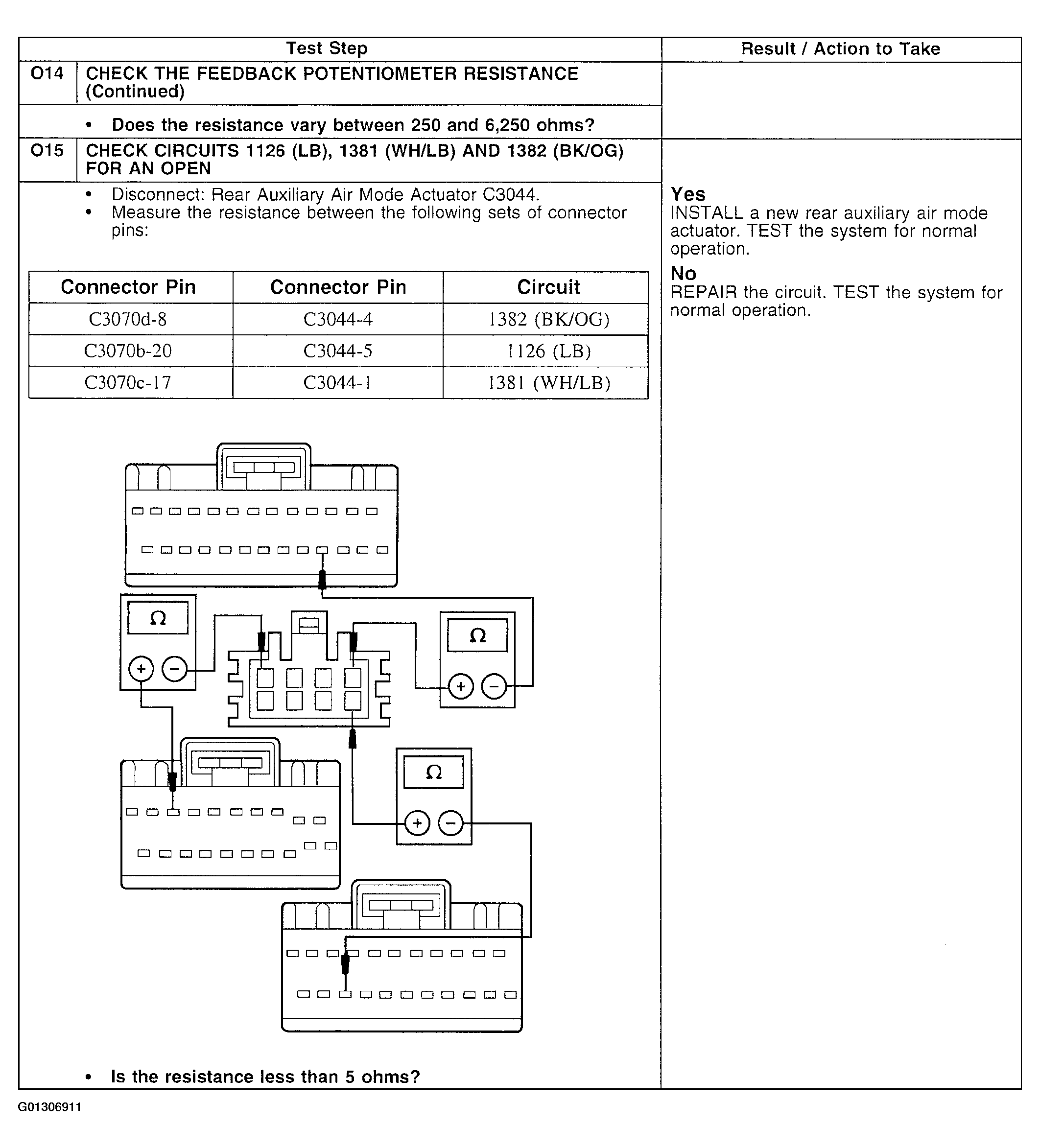

Fig 8: Pinpoint Test O: Panel/Floor Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps O14 Cont.-O15)

Courtesy of FORD MOTOR CO.

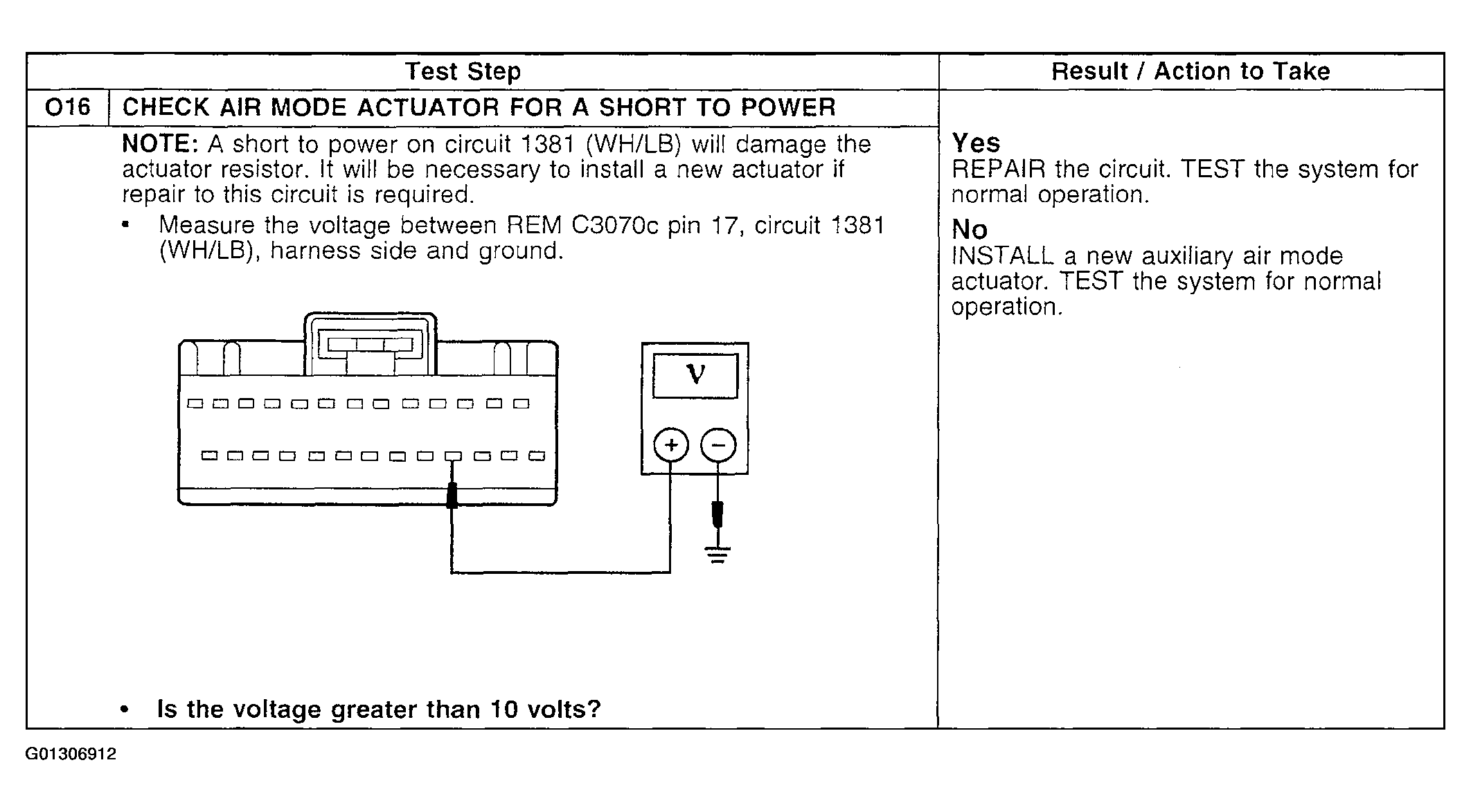

Fig 9: Pinpoint Test O: Panel/Floor Controls Do Not Operate Using Front/Rear Auxiliary Climate Controls (Steps O16)

Courtesy of FORD MOTOR CO.
