Component Bleeding: Caliper

WARNING: This page is about a different car, the 2004 Ford RV Cutaway, 2004 Ford Econoline, 2004 Ford E450 Super Duty, and 2004 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: It is not necessary to do a complete brake system bleed if only the disc brake caliper was disconnected.

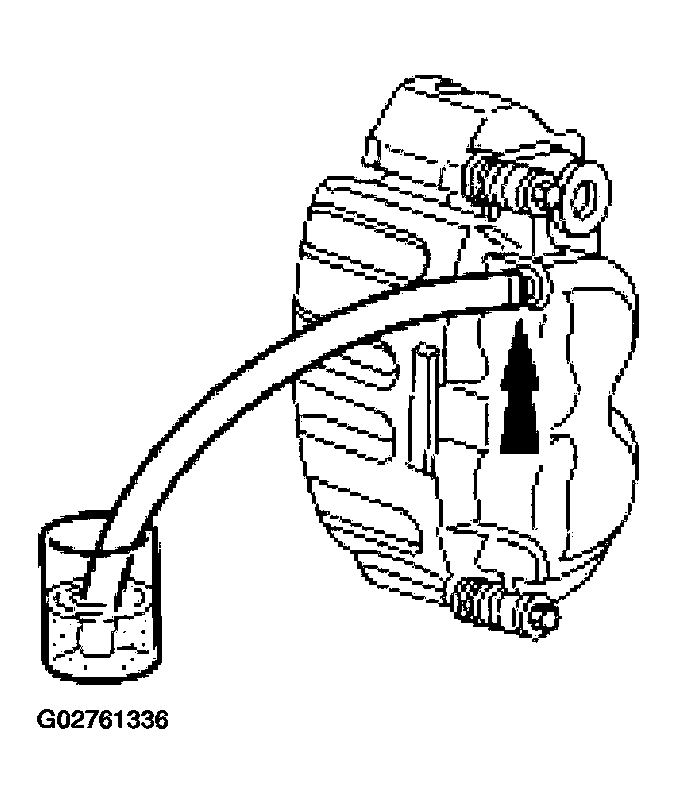

Fig 1: Attaching Rubber Drain Tube To Disc Brake Caliper Bleeder Screw

Courtesy of FORD MOTOR CO.

Place a box end wrench on the disc brake caliper bleeder screw. Attach a rubber drain tube to the disc brake caliper bleeder screw, and submerge the free end of the tube in a container partially filled with clean brake fluid.
Have an assistant pump the brake pedal and then hold firm pressure on the brake pedal.
Loosen the disc brake caliper bleeder screw until a stream of brake fluid comes out. While the assistant maintains pressure on the brake pedal, tighten the disc brake caliper bleeder screw.
- Repeat until clear, bubble-free fluid comes out.
- Refill the brake master cylinder reservoir as necessary.
Tighten the front and rear bleeder screw.

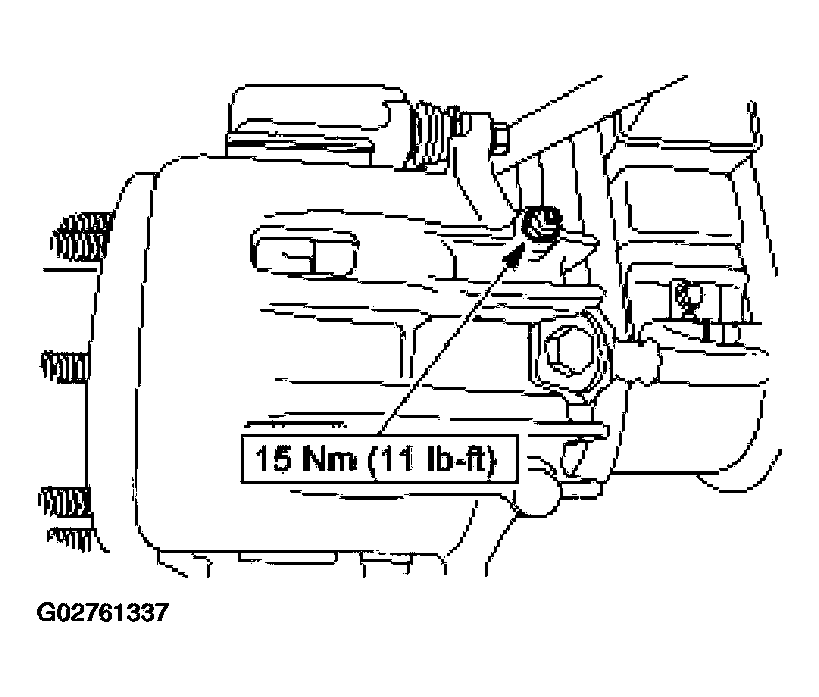

Fig 2: Identifying Tightening Torque Of Front And Rear Bleeder Screw
Courtesy of FORD MOTOR CO.
