Pinpoint Test M: DTC B2425 - Remote Keyless Entry Out Of Synchronization (DDM)

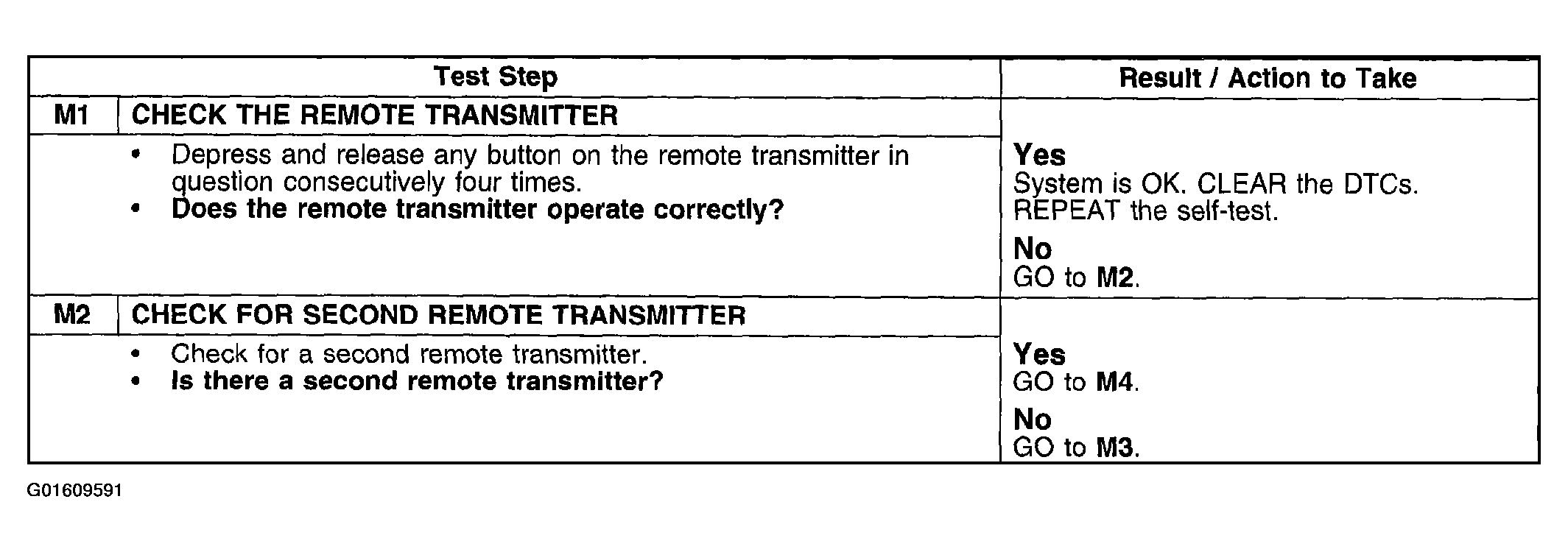

Fig 1: Pinpoint Test M: DTC B2425 - Remote Keyless Entry Out Of Synchronization (DDM) (M1 To M2)
G01609591Courtesy of FORD MOTOR CO.

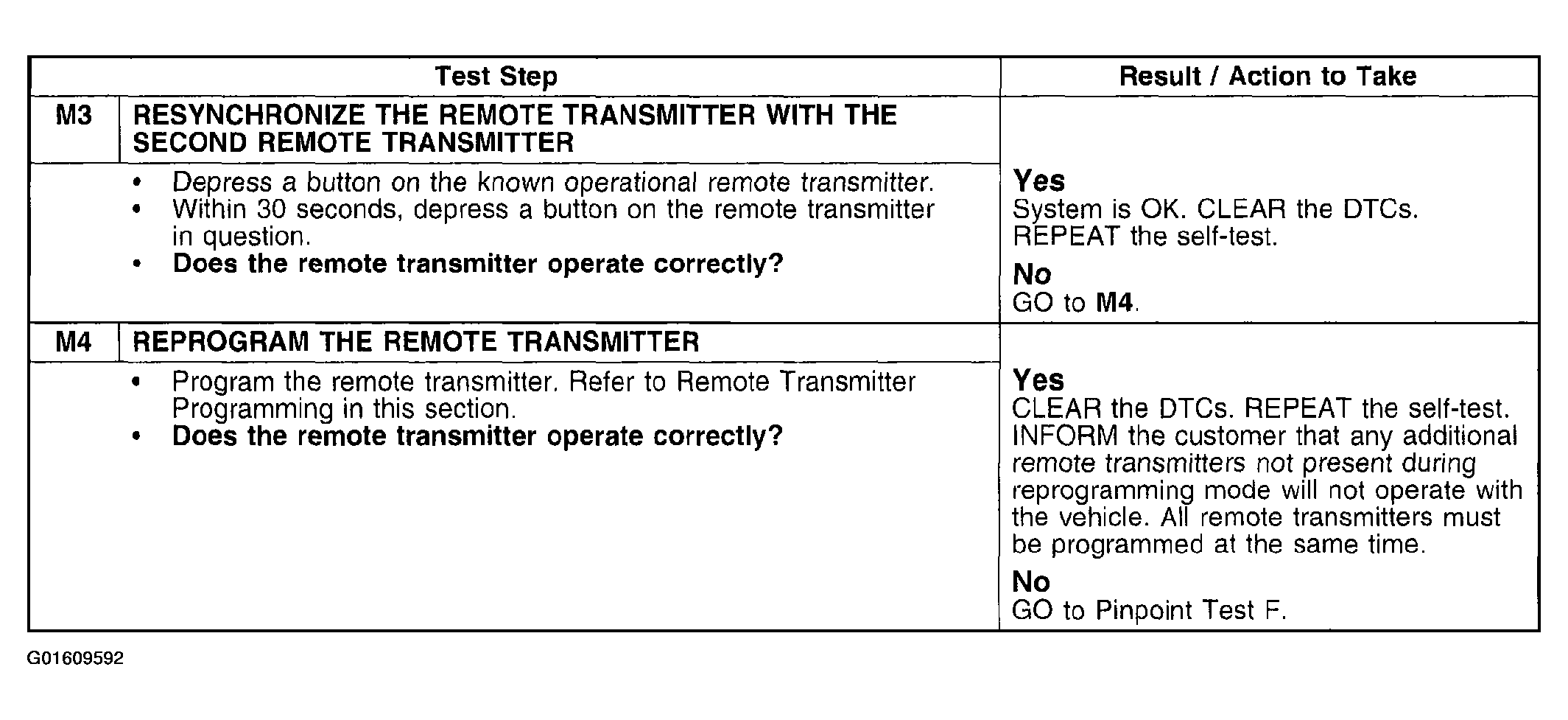

Fig 2: Pinpoint Test M: DTC B2425 - Remote Keyless Entry Out Of Synchronization (DDM) (M3 To M4)
G01609592Courtesy of FORD MOTOR CO.
