Window Control Switch

NOTE: Left front door shown, all others similar.

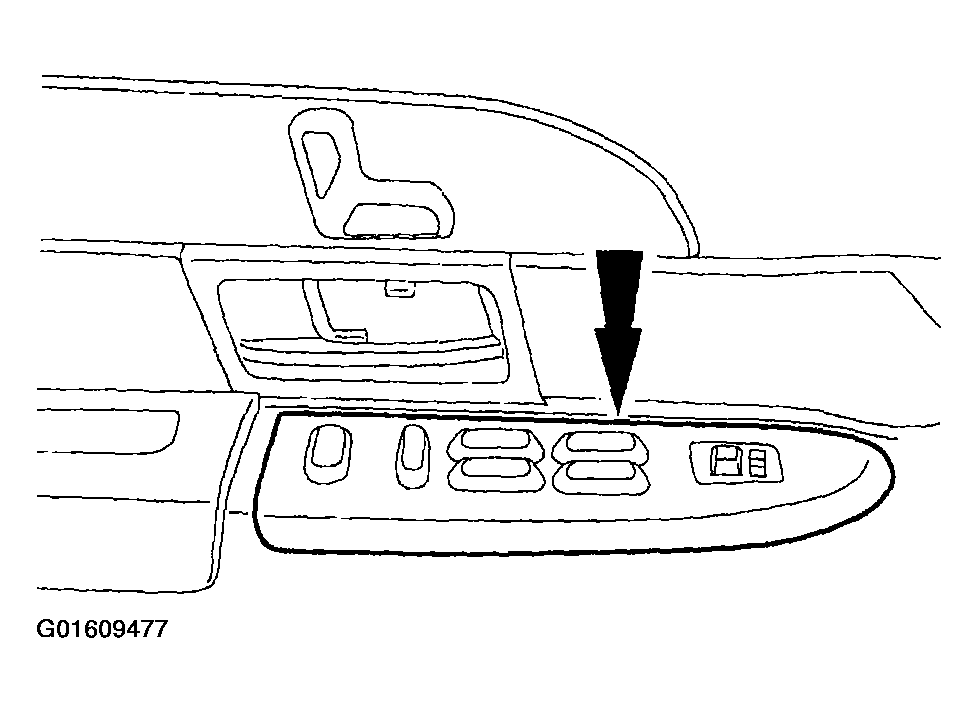

Fig 1: Lifting Front Of Switch Plate From Front Door Trim Panel

Courtesy of FORD MOTOR CO.

Lift the front of the switch plate from the front door trim panel and position it aside.
Disconnect the electrical connectors.

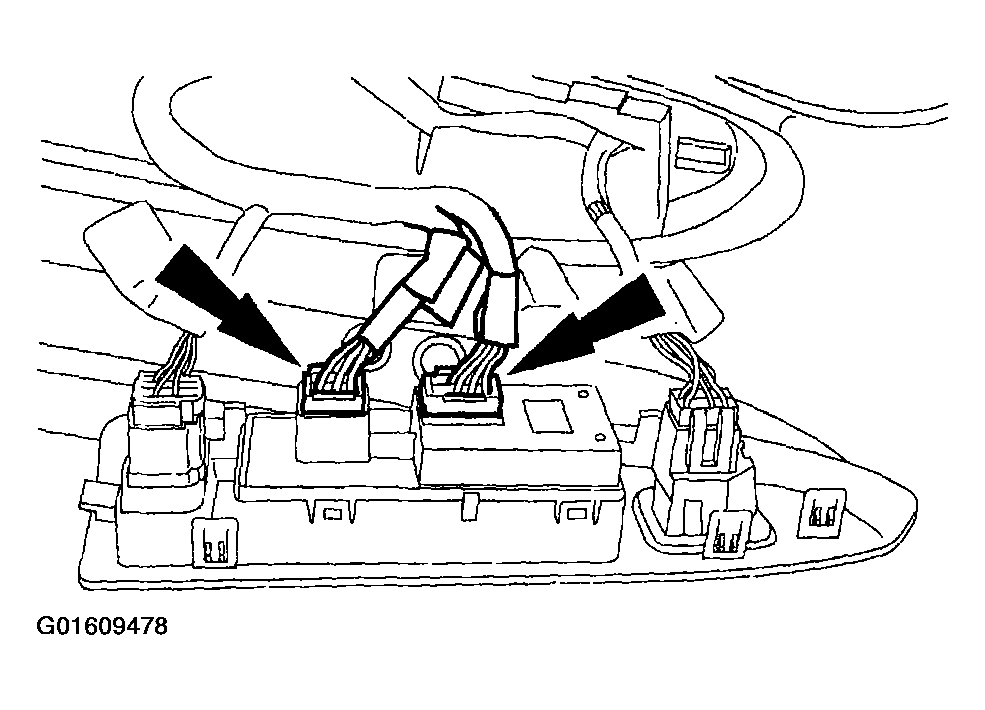

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the window control switch.
- Release the four locking tabs.

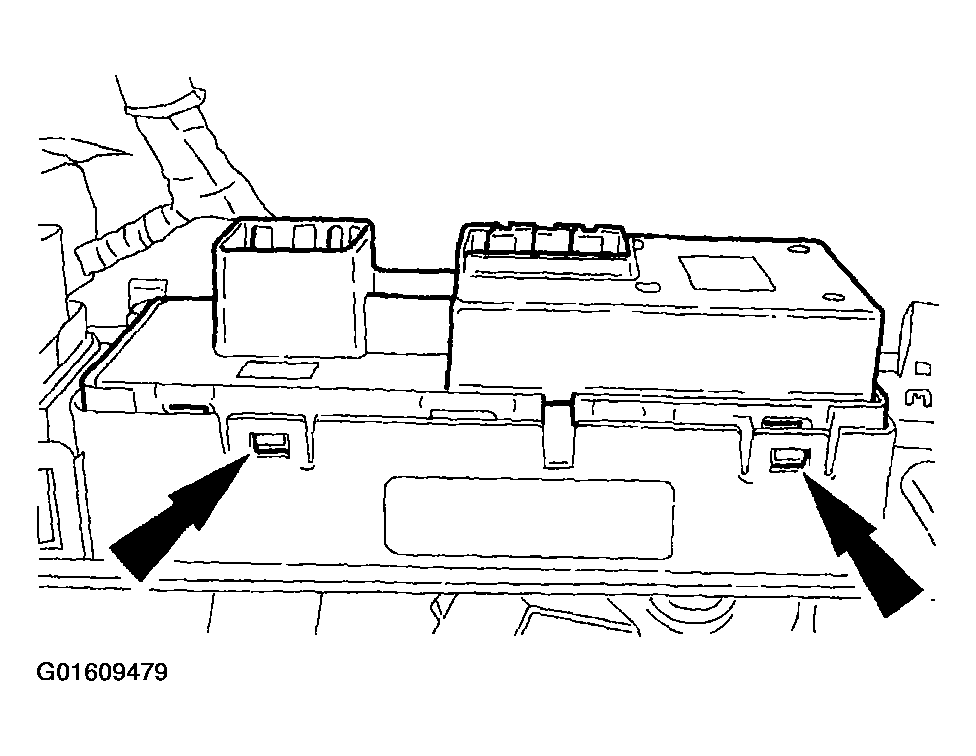

Fig 3: Releasing Locking Tabs
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
