Connector Views

NOTE: For connector views referred to in diagnostic tests, see Fig 1 and Fig 2 .

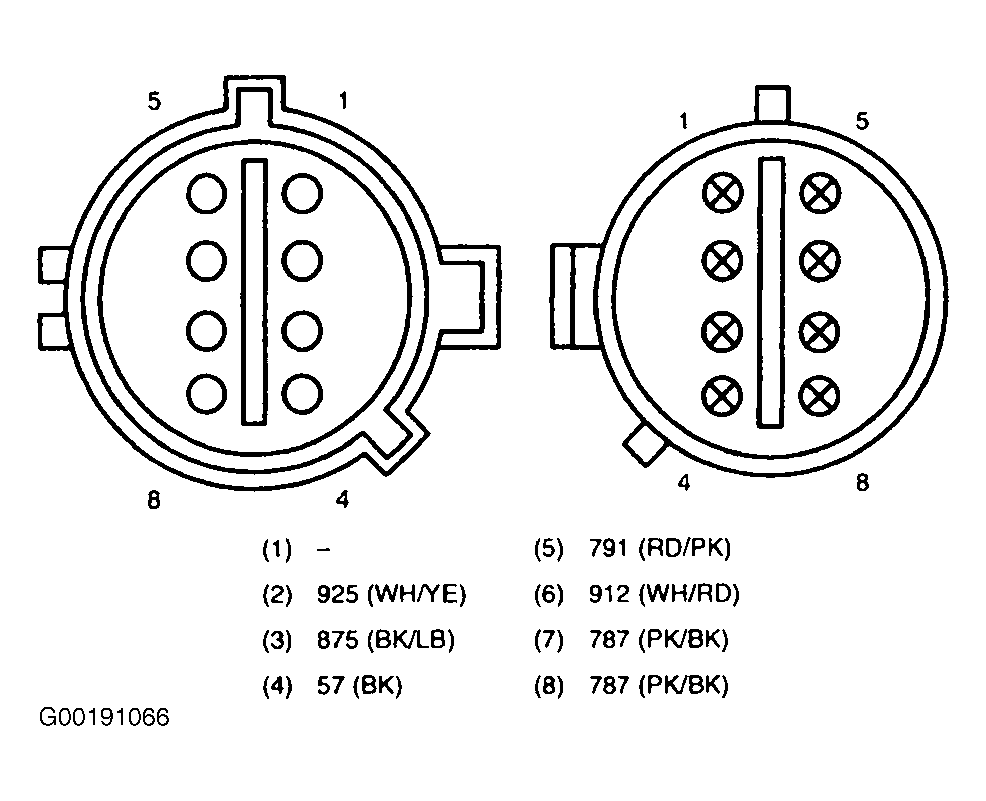

Fig 1: Identifying Tank Valve In-Line Connector C421 Terminals
G00191066Courtesy of FORD MOTOR CO.
Fig 2: Identifying Fuel Tank Solenoid Valve Connector Terminals
G00096741Courtesy of FORD MOTOR CO.
