System Specifications

Item Specification

Generator F6LU-CA
Rating (gen. crank/rev.) (130 AMP/MAX)
Generator Ratio 2.72:1
Voltage Regulator Type Electronic Internal with Generator

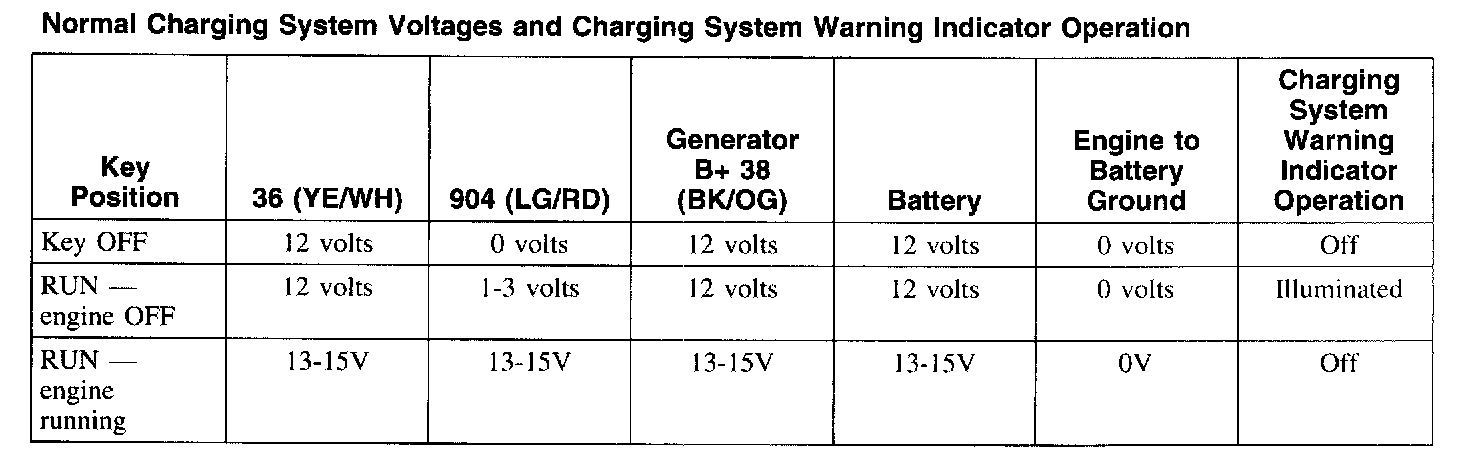

NORMAL CHARGING SYSTEM VOLTAGES CHART

Normal Charging System Voltages And Charging System Warning Indicator Operation:
