ABS Control Module Parameter Identification (PID) Index

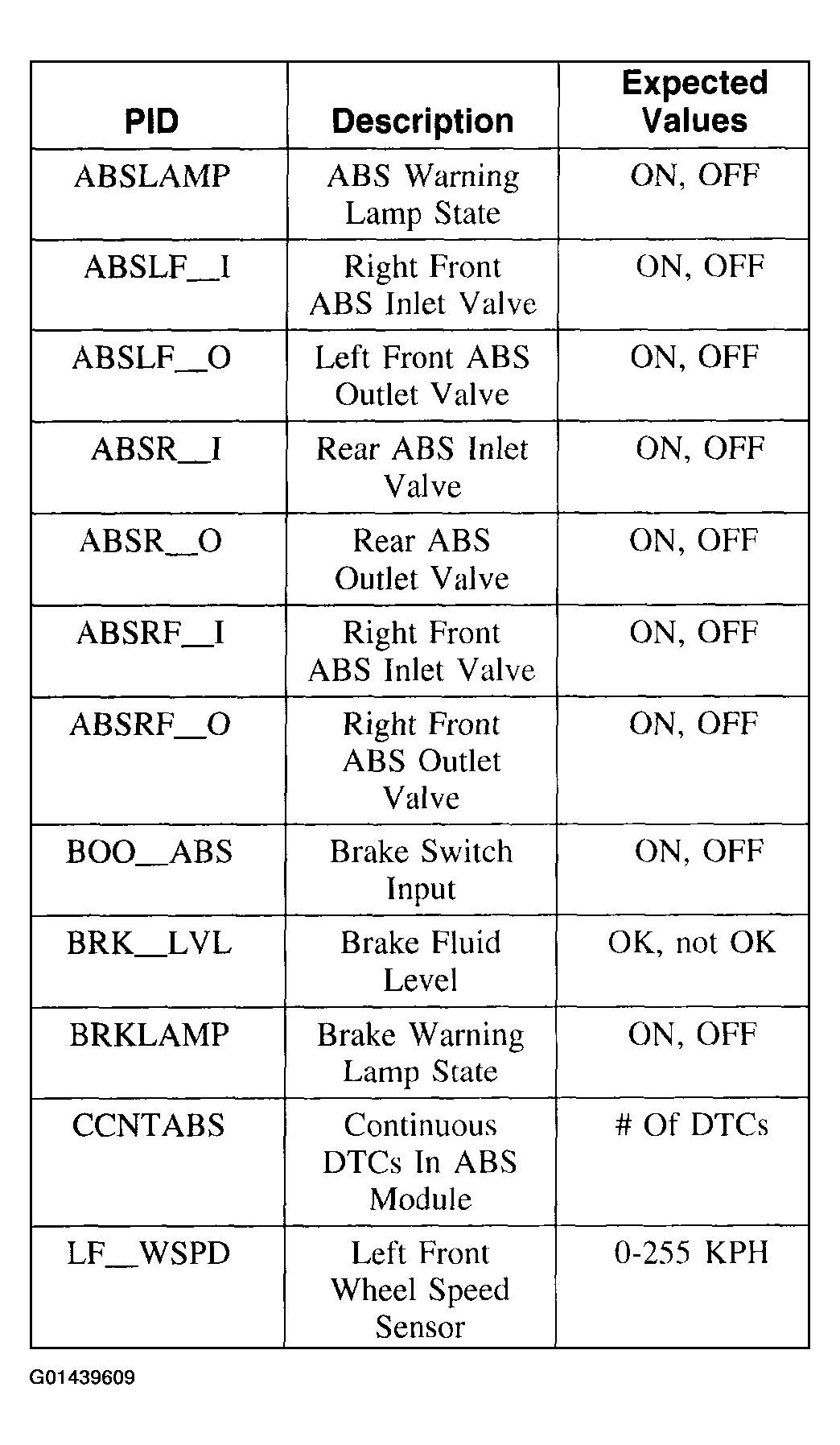

Fig 1: PID Index (ABS Control Module) (1 Of 2)

Courtesy of FORD MOTOR CO.

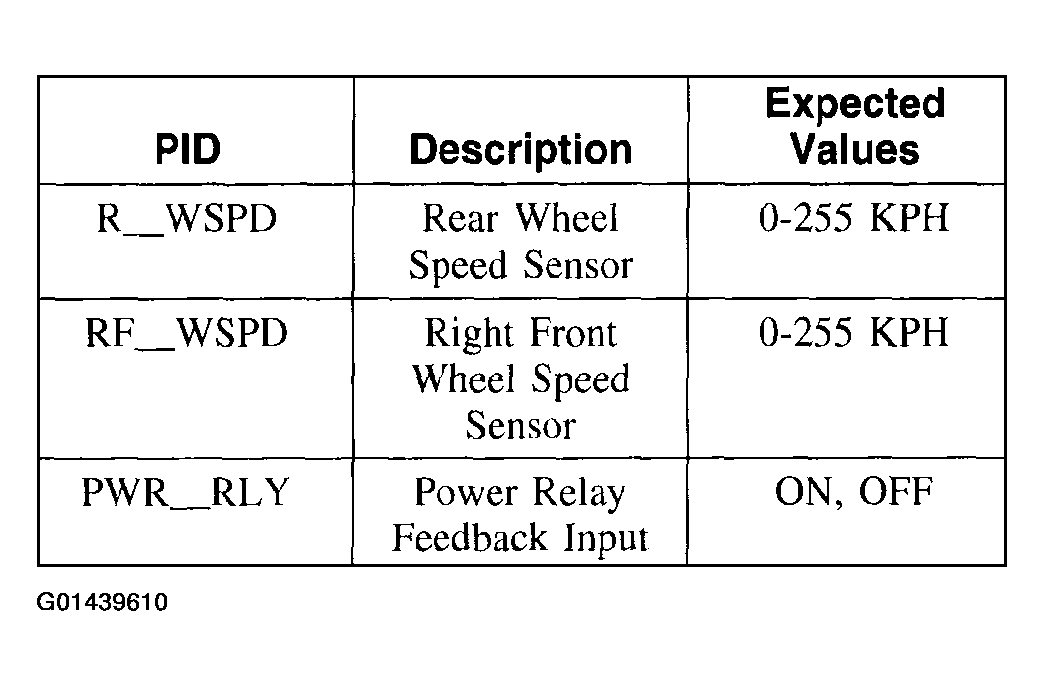

Fig 2: PID Index (ABS Control Module) (2 Of 2)

Courtesy of FORD MOTOR CO.
