Anti-Lock Brake System (Abs) Module: Installation

  1. To install, reverse the removal procedure.
    Fig 1: Installing Bracket Bolts From HCU
    G01439668Courtesy of FORD MOTOR CO.

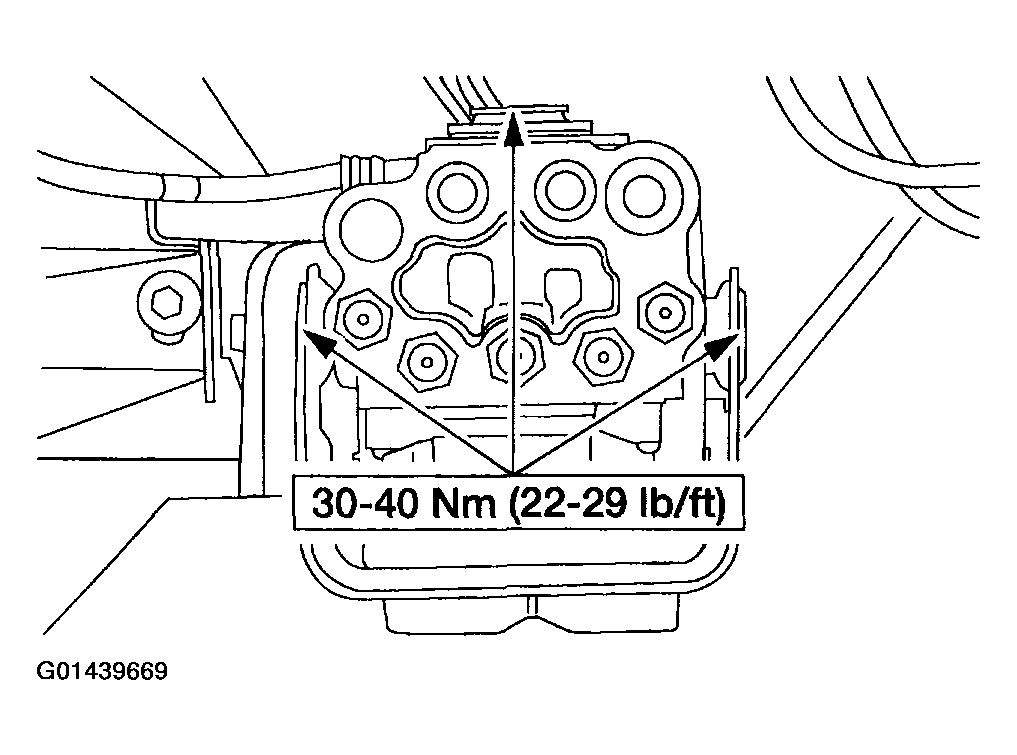

    Fig 2: Installing Anti-Lock Brake Control Module Screws
    G01439669Courtesy of FORD MOTOR CO.
