Pinpoint Test G: Flash Code 2 - BPP Switch Circuit Failure

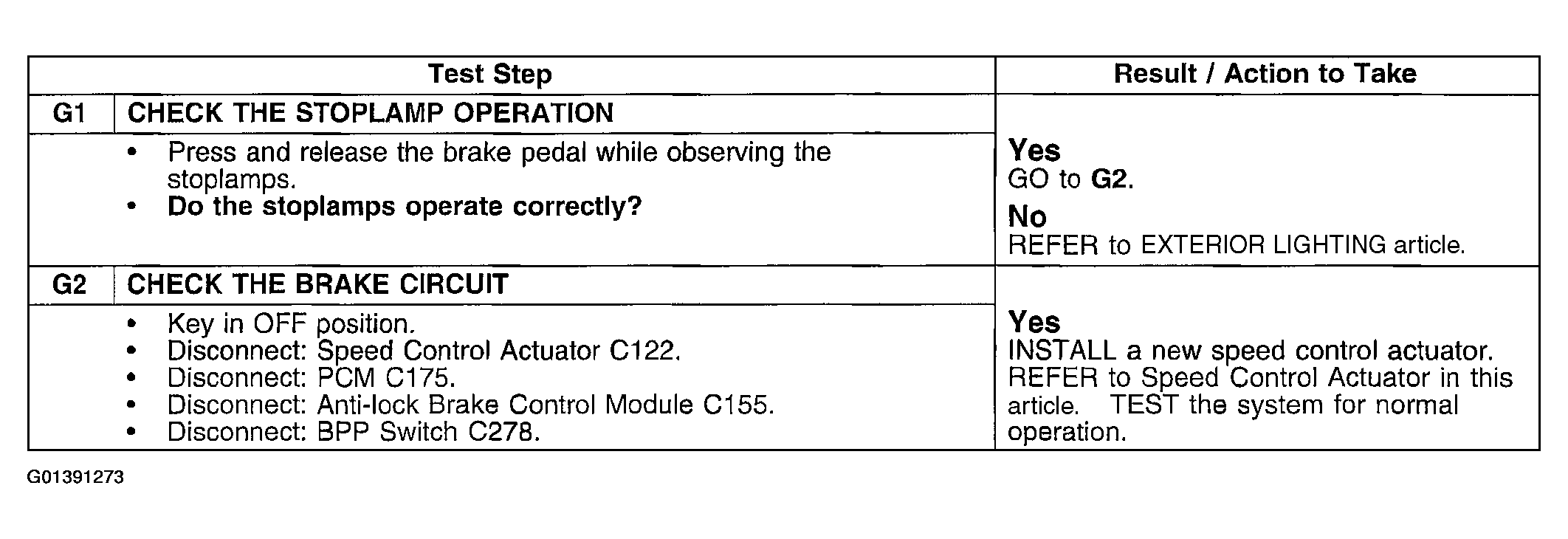

Fig 1: Pinpoint Test G: Flash Code 2 - BPP Switch Circuit Failure (Steps G1-G2)

Courtesy of FORD MOTOR CO.

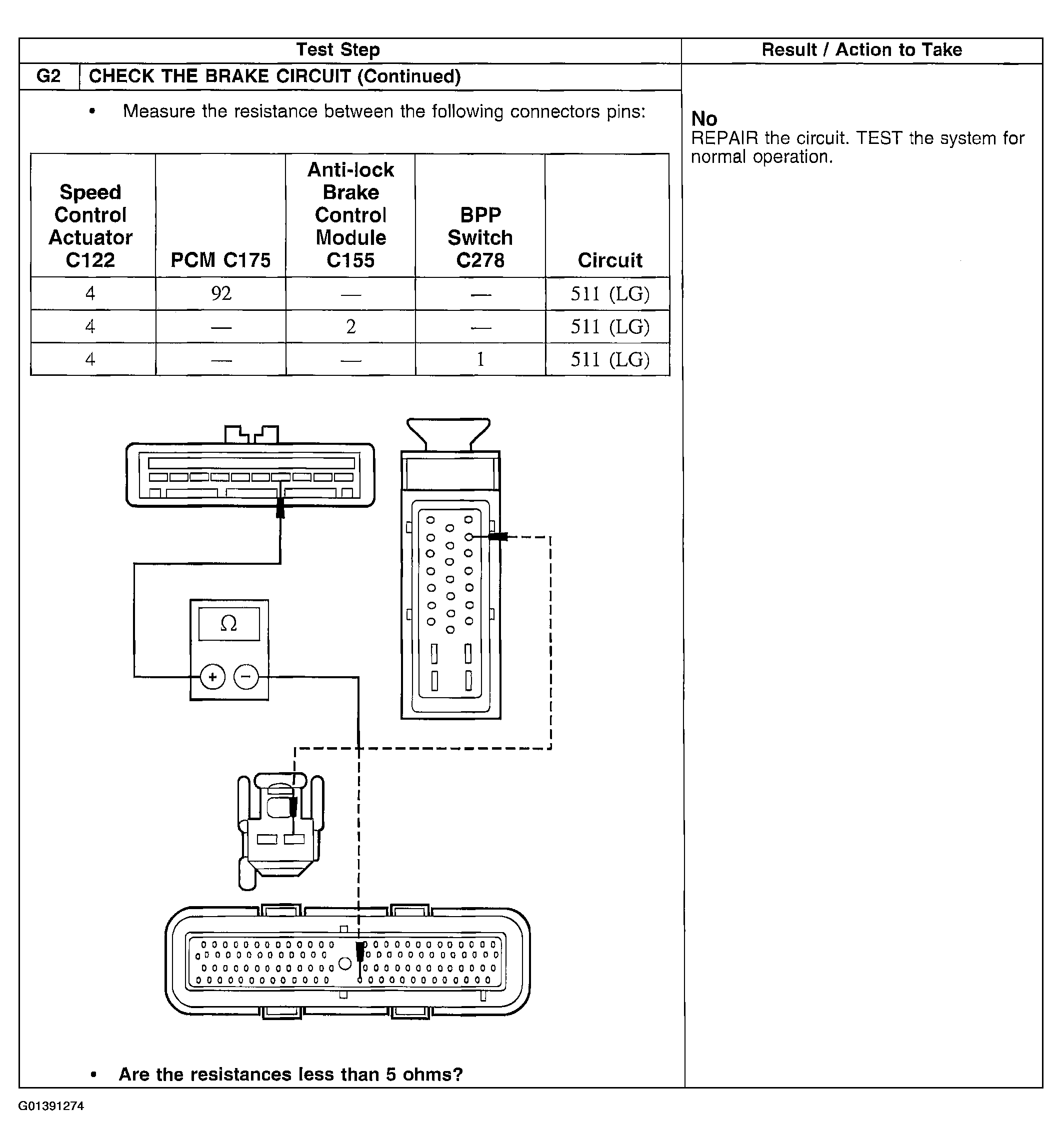

Fig 2: Pinpoint Test G: Flash Code 2 - BPP Switch Circuit Failure (Steps G2 Cont.)

Courtesy of FORD MOTOR CO.
