Removal and Installation

  1. Disconnect the battery negative cable. For additional information, refer to BATTERY DISCONNECT .
  2. Disconnect the electrical connectors.

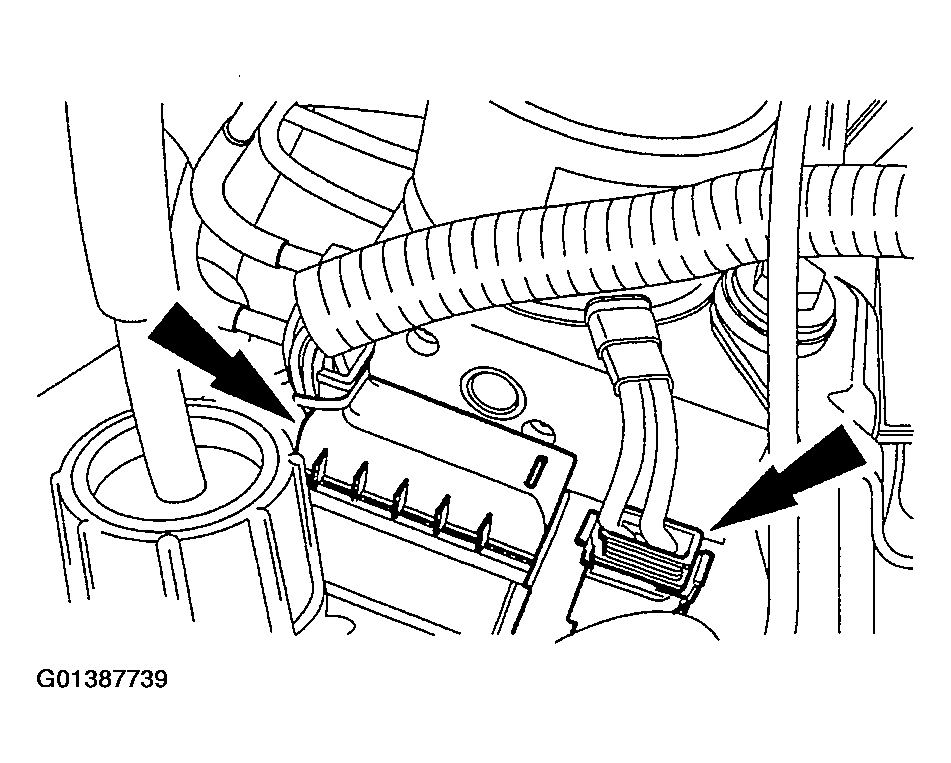

    Fig 1: Disconnecting Electrical Connectors
    G01387739Courtesy of FORD MOTOR CO.
  3. Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
  4. Remove the screws and the control module.

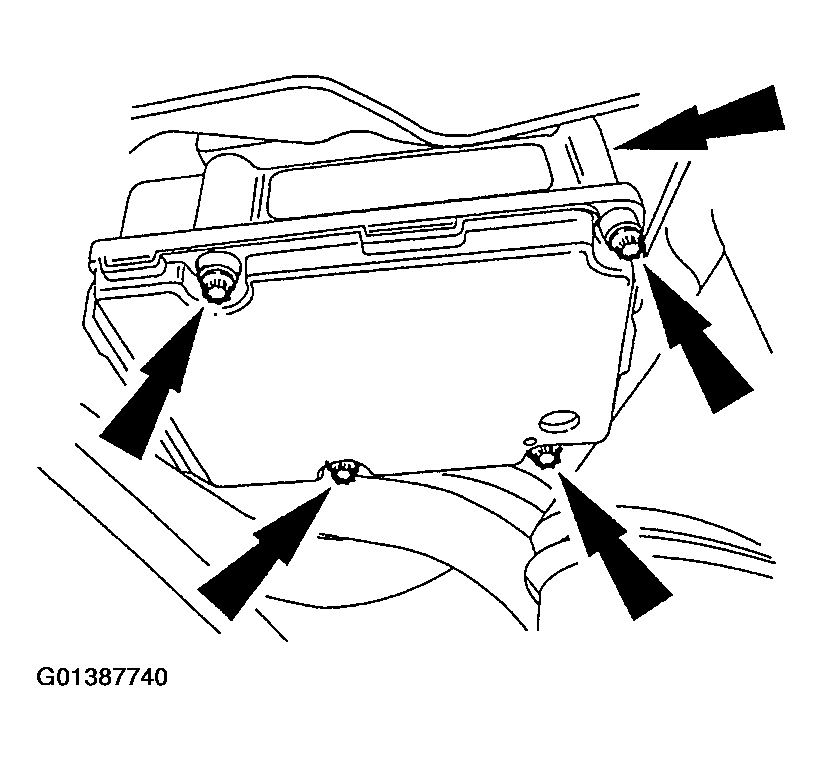

    Fig 2: Removing Screws And Control Module
    G01387740Courtesy of FORD MOTOR CO.
    5. NOTE: The 4x2 module cannot be interchanged with the 4x4 module. The 4x4 module is interchangeable with the 4x2 module.
  5. To install, reverse the removal procedure.
