Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)

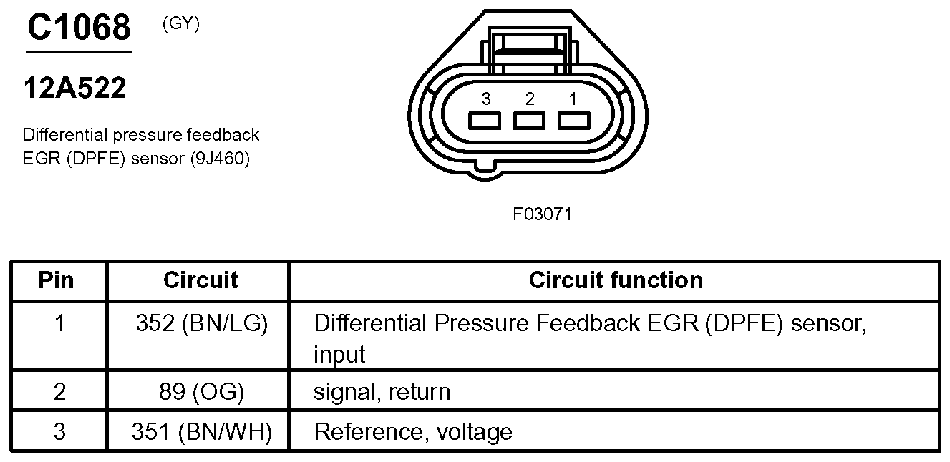

Fig 1: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)
G07831606Courtesy of FORD MOTOR CO.
