Electronic Flasher Module Connector End View (C2027a)

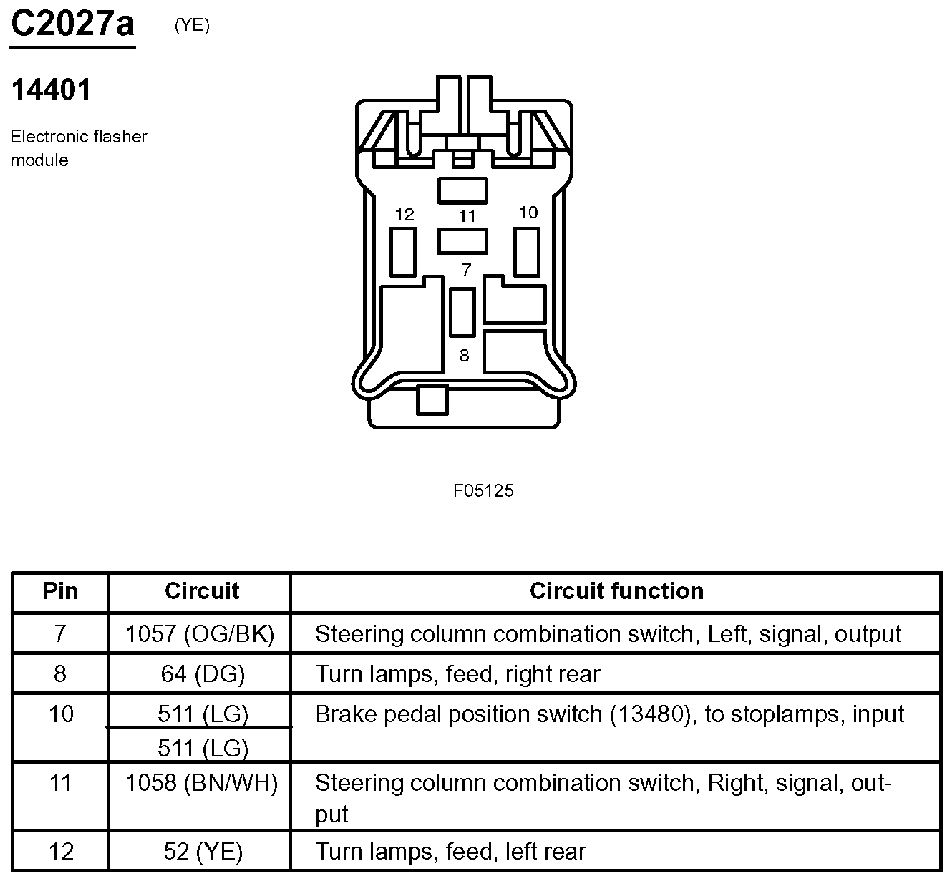

Fig 1: Electronic Flasher Module Connector End View (C2027a)
G07831634Courtesy of FORD MOTOR CO.
