Function Selector Switch Assembly Connector End View (C294b)

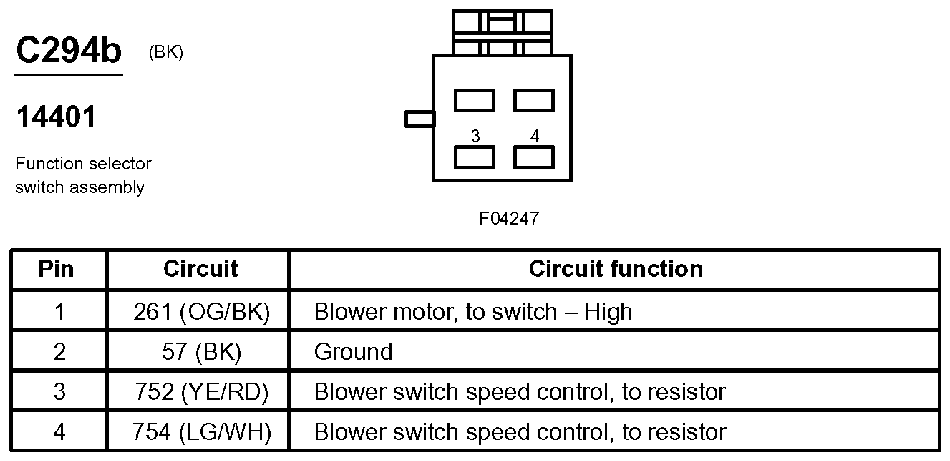

Fig 1: Function Selector Switch Assembly Connector End View (C294b)
G07831491Courtesy of FORD MOTOR CO.
