Shift Control Housing: Assembly

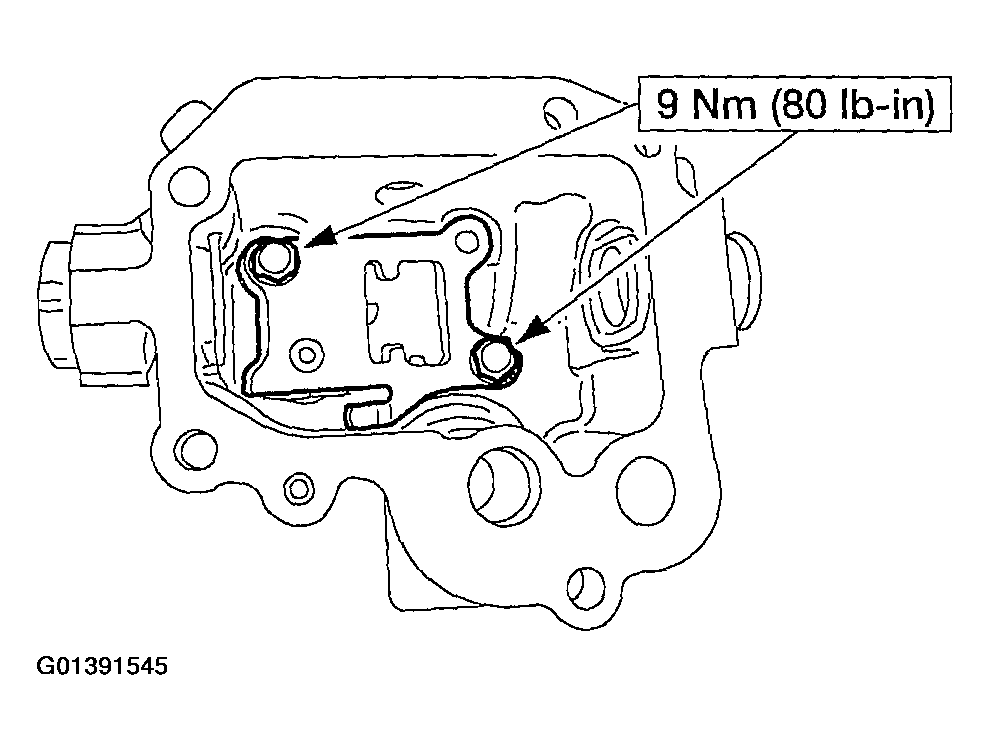

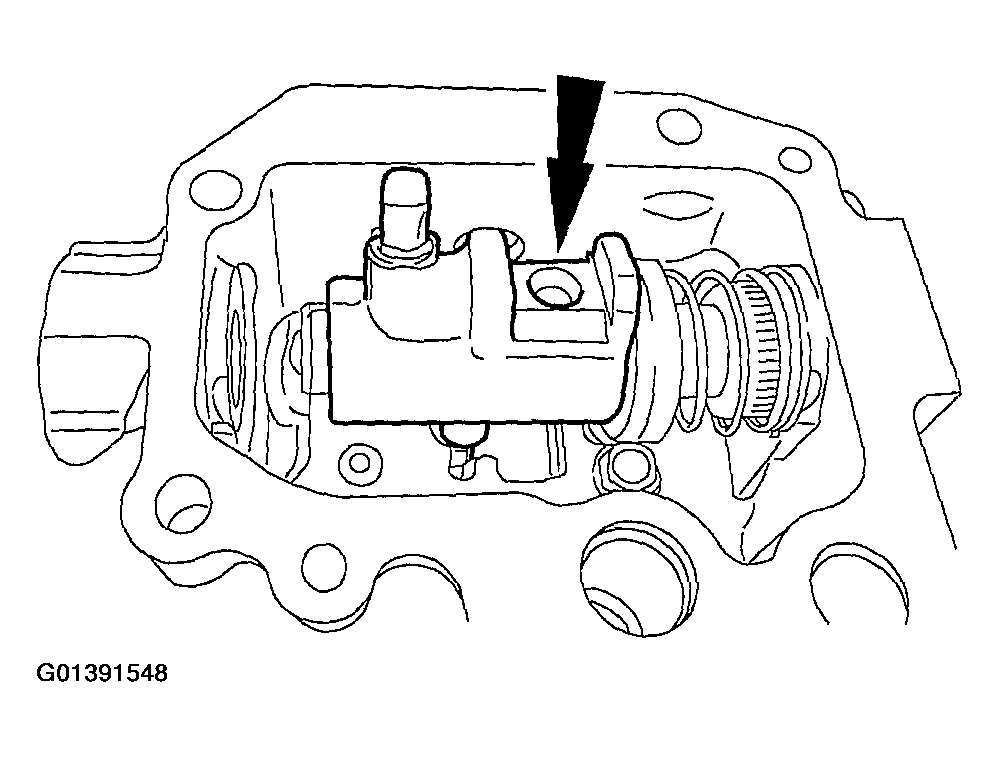

Install the shift gate.

Fig 1: Installing Shift Gate
Courtesy of FORD MOTOR CO.

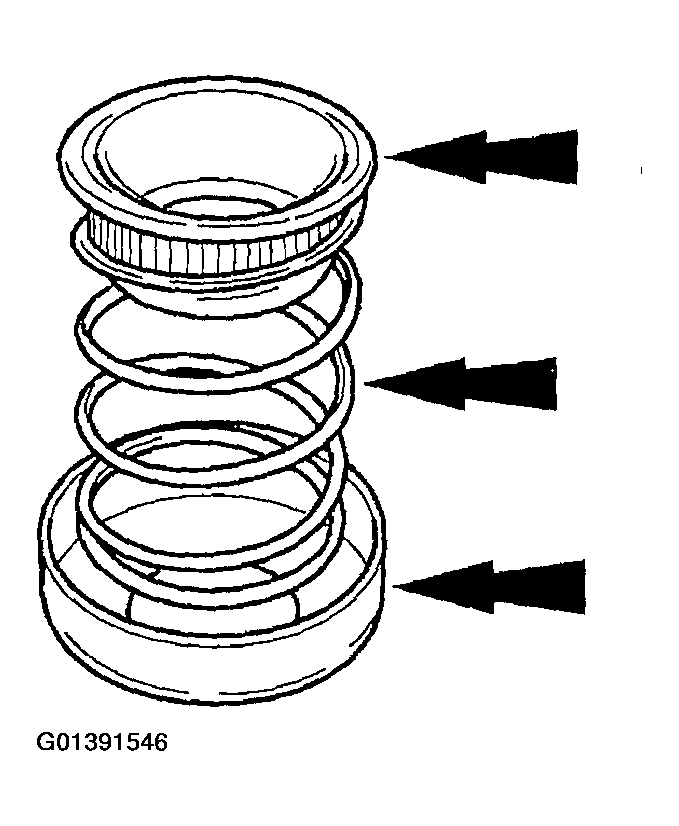

Assemble the spring and cap assemblies.

Fig 2: Assembling Spring And Cap Assemblies
Courtesy of FORD MOTOR CO.

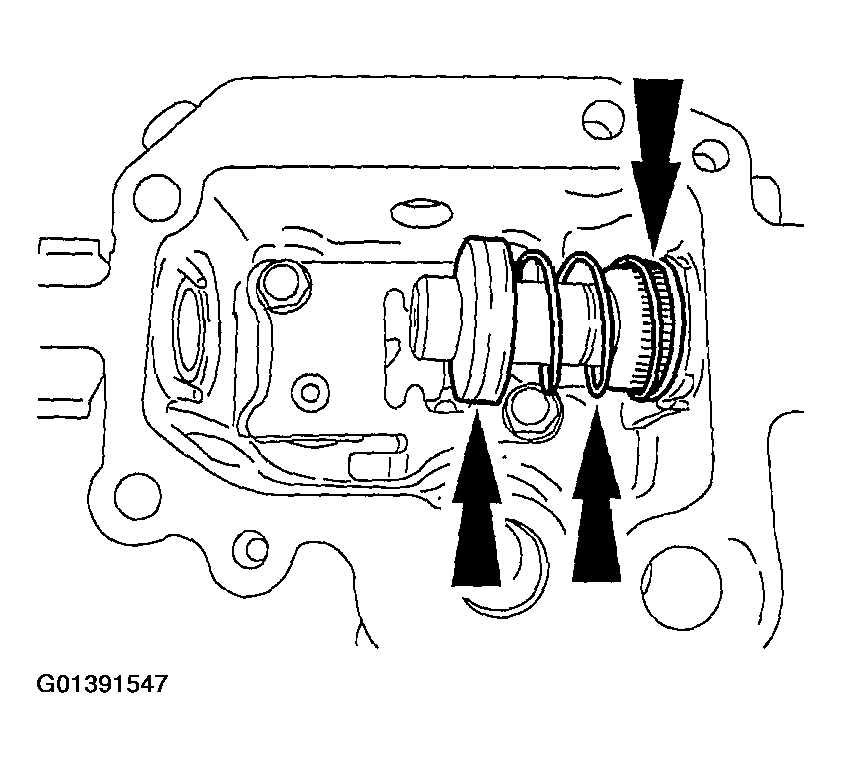

Position the spring assembly and partially install the shift rod.

Fig 3: Positioning Spring Assembly And Installing Shift Rod
Courtesy of FORD MOTOR CO.
Install the shift cam.

Fig 4: Installing Shift Cam
Courtesy of FORD MOTOR CO.

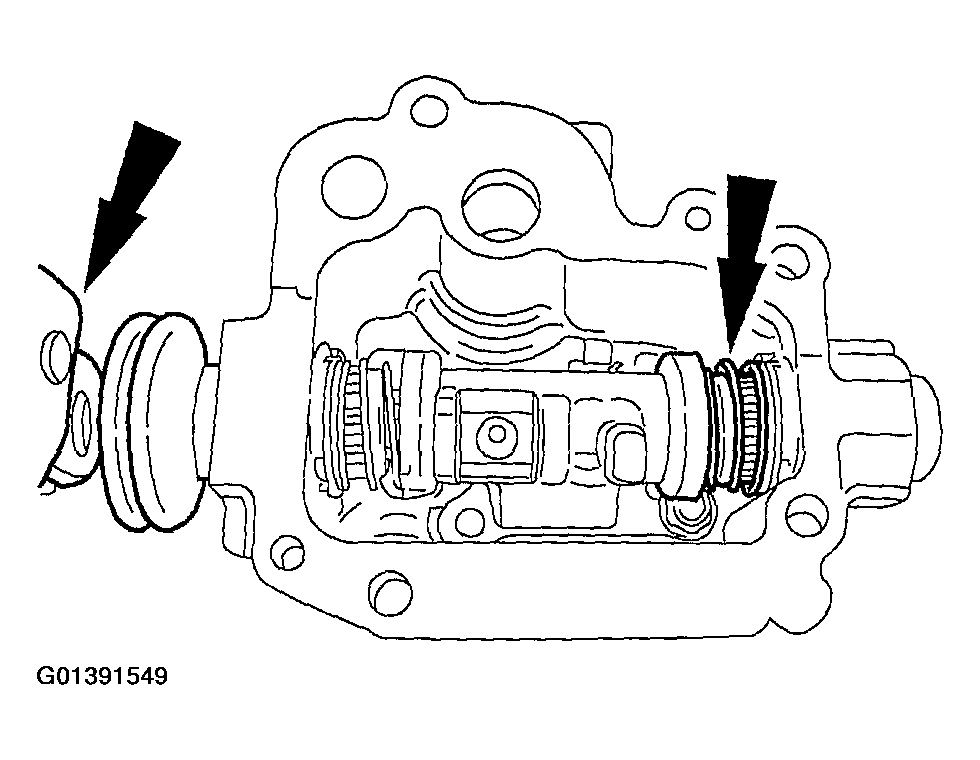

Install the remaining spring assembly and fully install the shift rod.

Fig 5: Installing Spring Assembly And Install Shift Rod
Courtesy of FORD MOTOR CO.

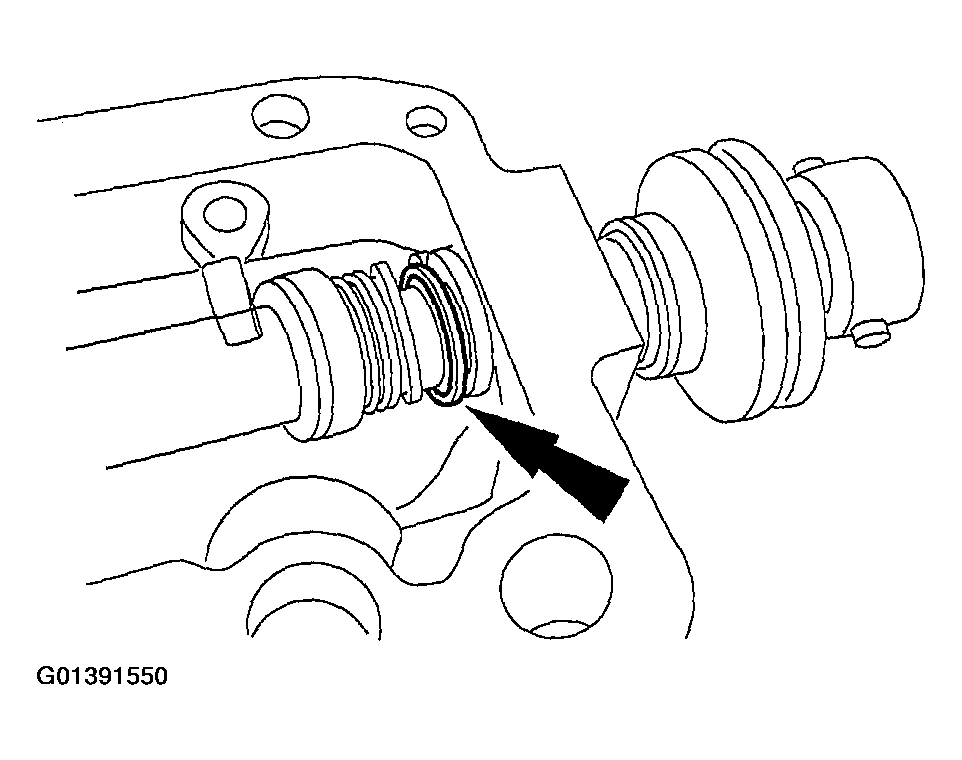

Install the circlip.

Fig 6: Locating Circlip
Courtesy of FORD MOTOR CO.

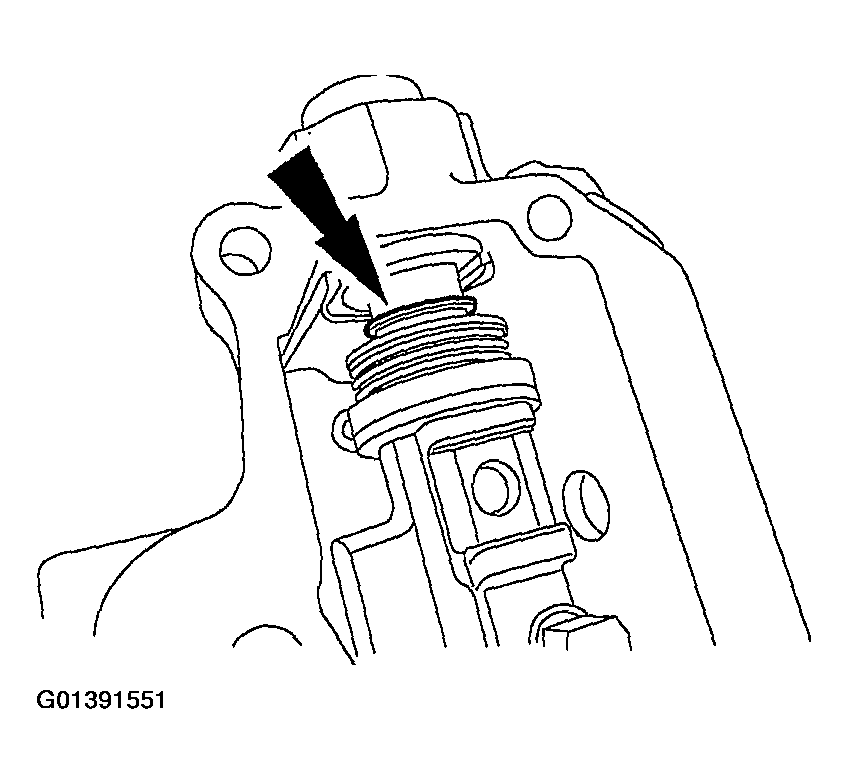

Install the circlip.

Fig 7: Installing Circlip
Courtesy of FORD MOTOR CO.

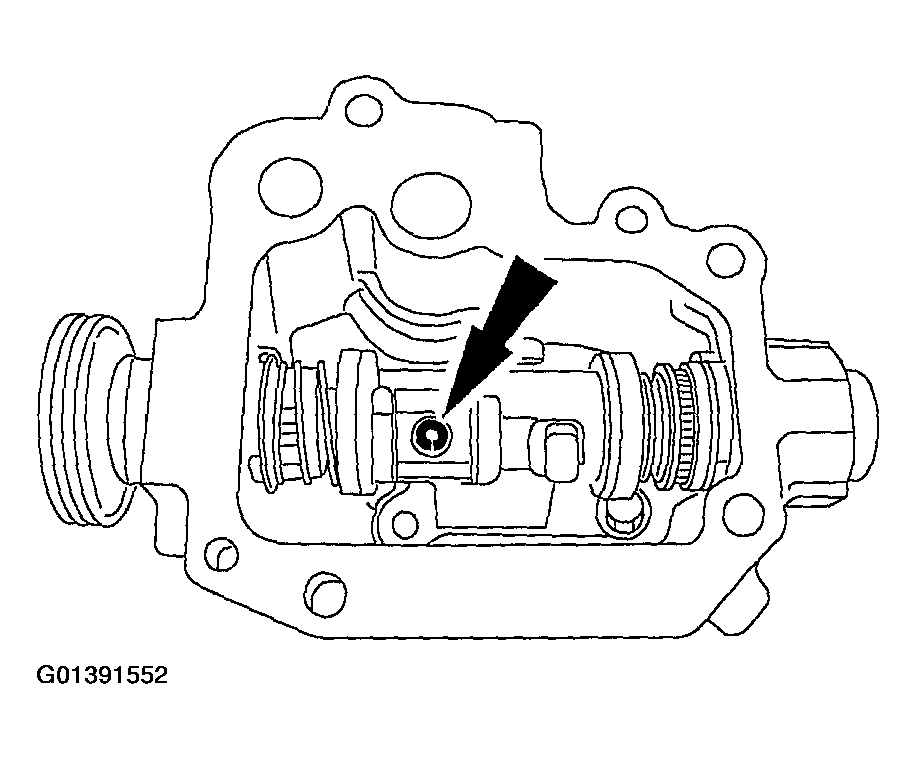

Install a new roll pin.

Fig 8: Installing Roll Pin
Courtesy of FORD MOTOR CO.

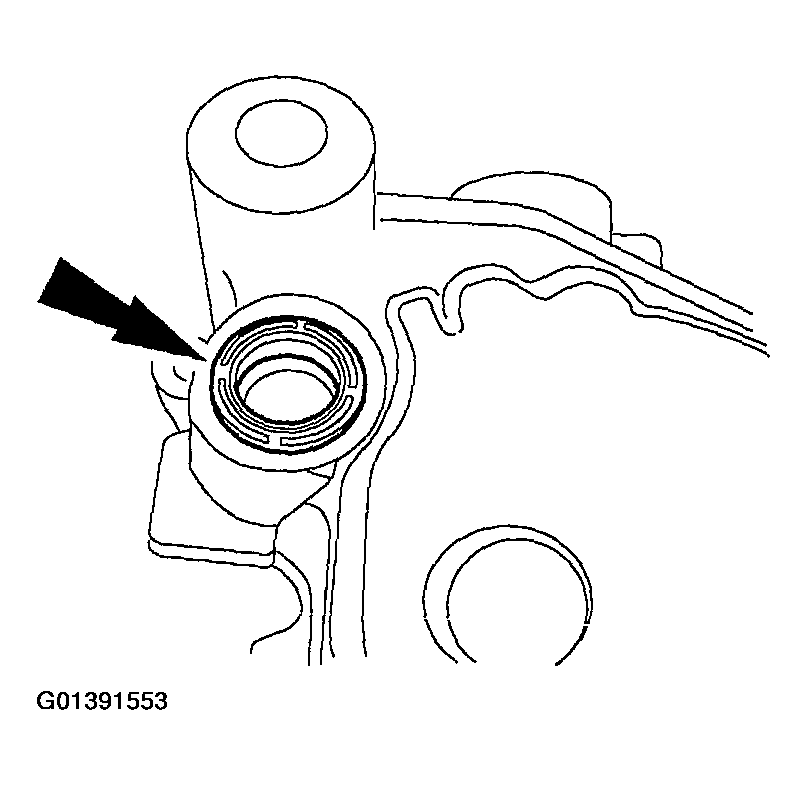

If removed, install the shift rod seal.

Fig 9: Locating Shift Rod Seal
Courtesy of FORD MOTOR CO.

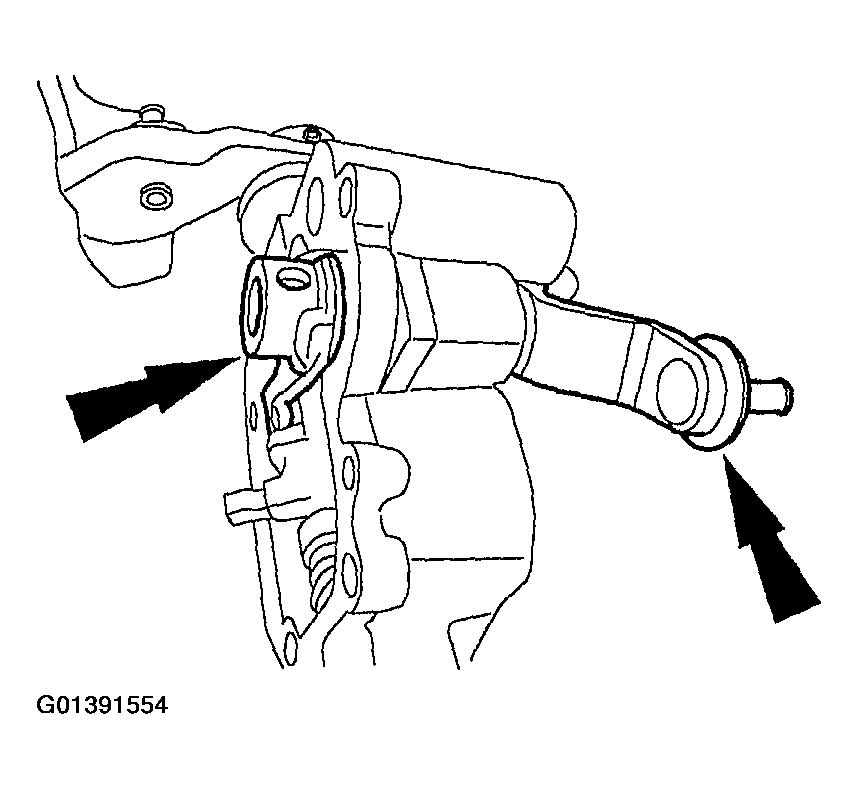

Install the shift shaft.
- Install the shift shaft.
- Position the shift pawl.

  Fig 10: Locating Shift Shaft
  Courtesy of FORD MOTOR CO.

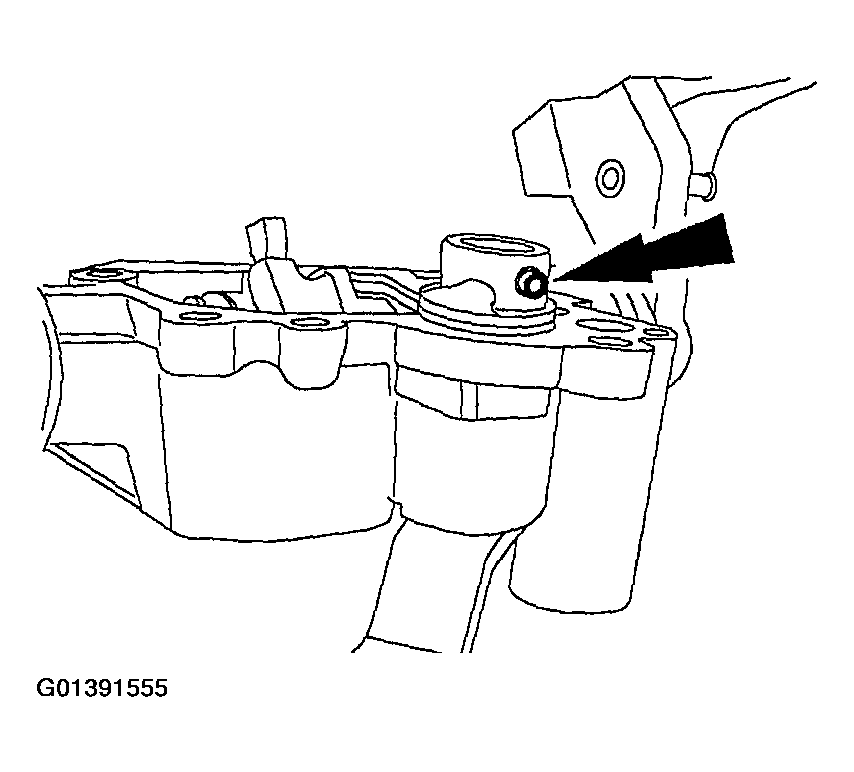

Install the new roll pin.

Fig 11: Installing New Roll Pin
Courtesy of FORD MOTOR CO.
