Lower Intake Manifold: Removal
WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the intake manifold spacer assembly. For additional information, refer to INTAKE MANIFOLD - SPACER ASSEMBLY .

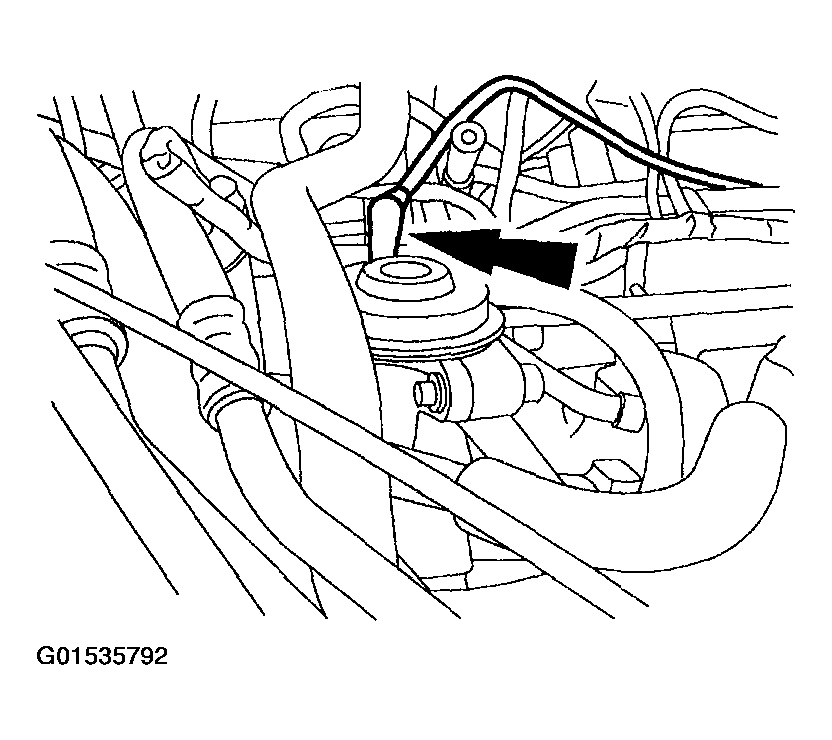

- Disconnect the EGR valve vacuum hose.
- Remove the EGR valve tube upper fitting.

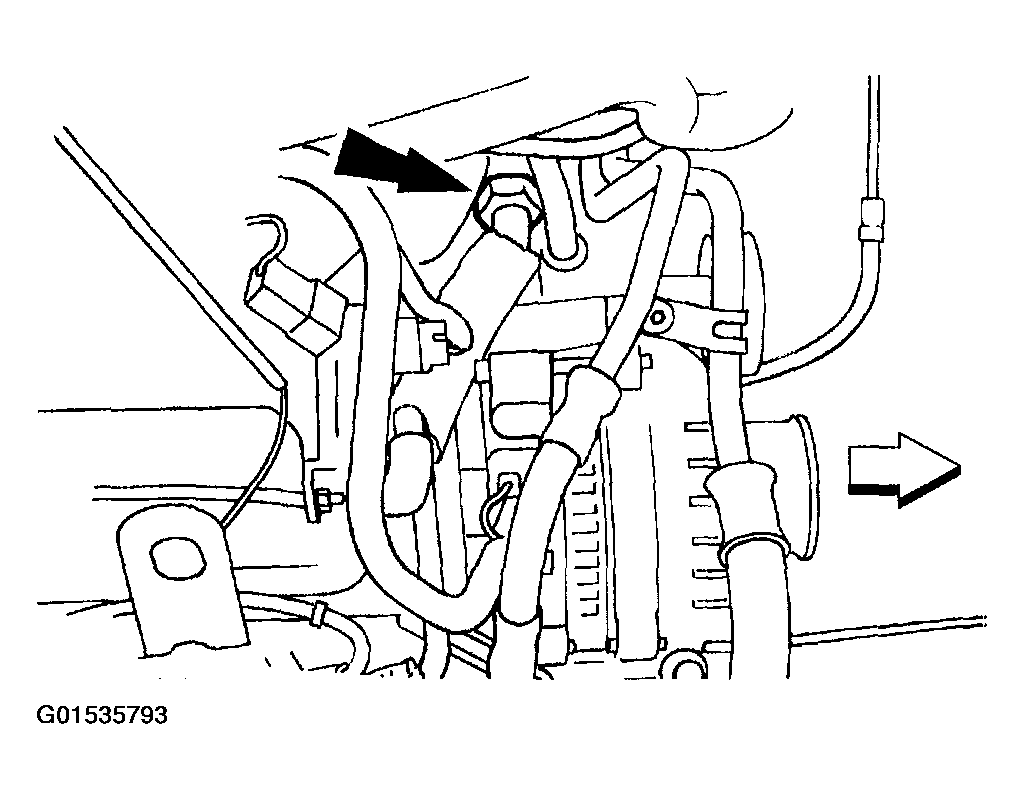

- Remove the radiator upper hose from the lower intake manifold. For additional information, refer to ENGINE COOLING .

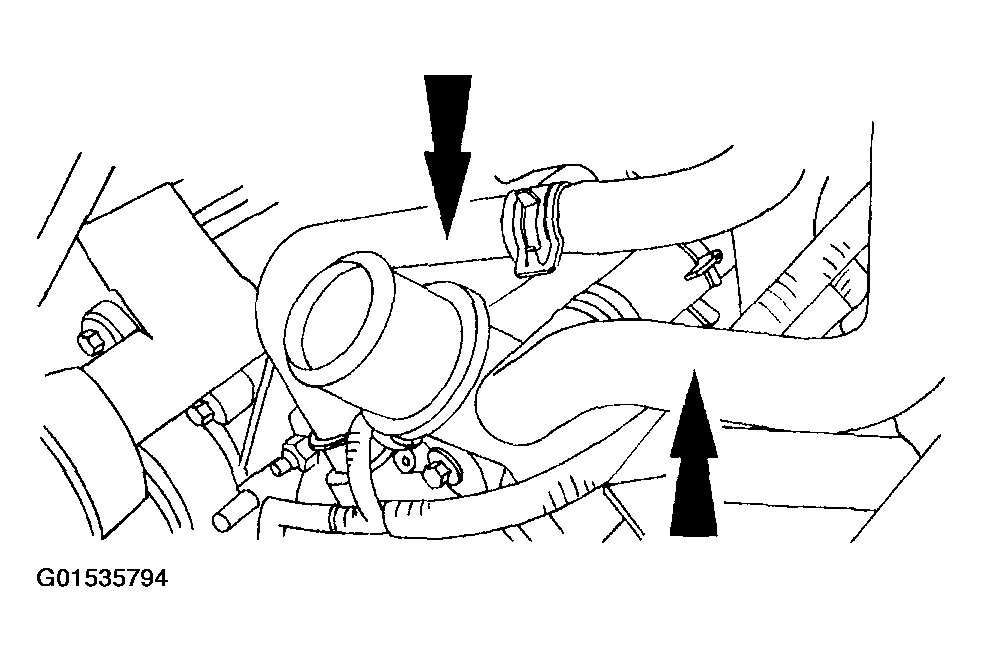

- Disconnect the water bypass hose (8597) and the heater water hose (18472).
- Disconnect the fuel lines. For additional information, refer to FUEL TANK & LINES-GASOLINE & DIESEL or FUEL TANK & LINES-NATURAL GAS .

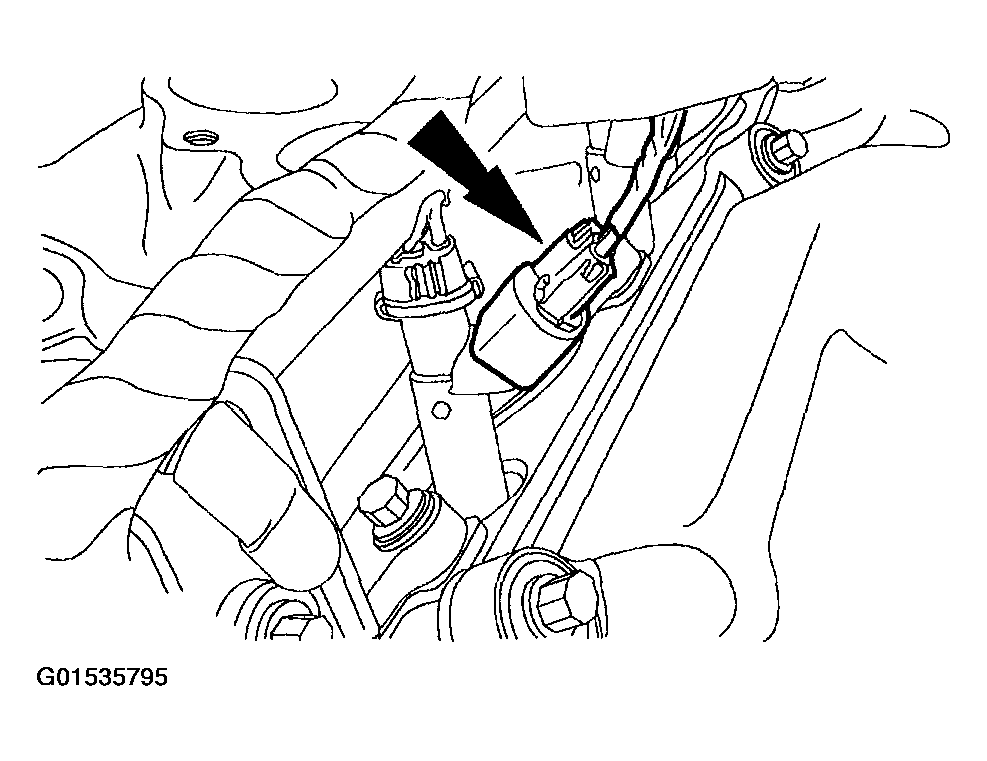

- Disconnect the fuel injector electrical connectors.

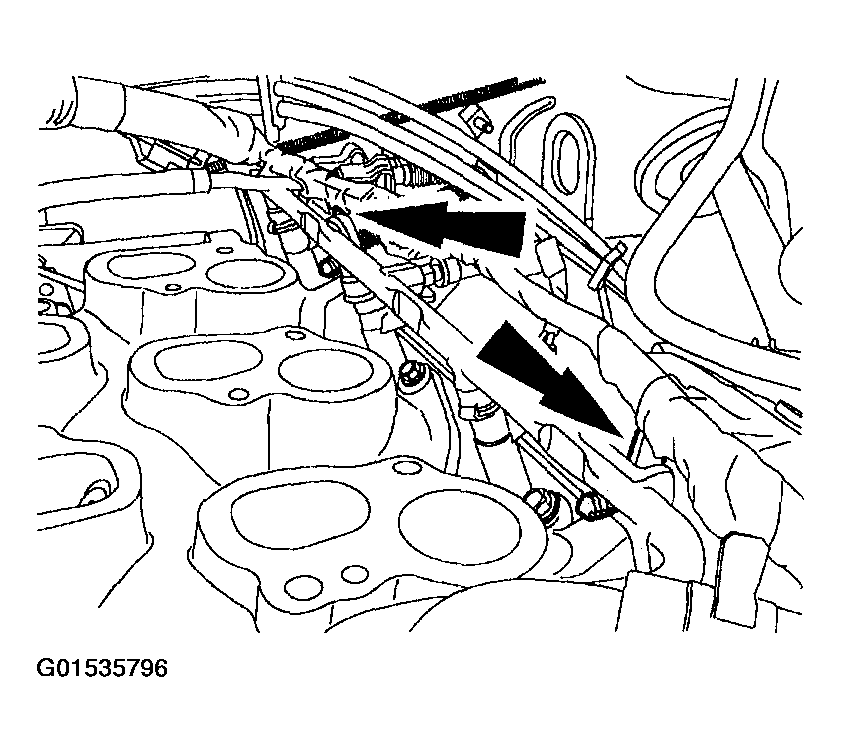

- Disconnect the fuel injector electrical harness from the fuel injector supply manifold.

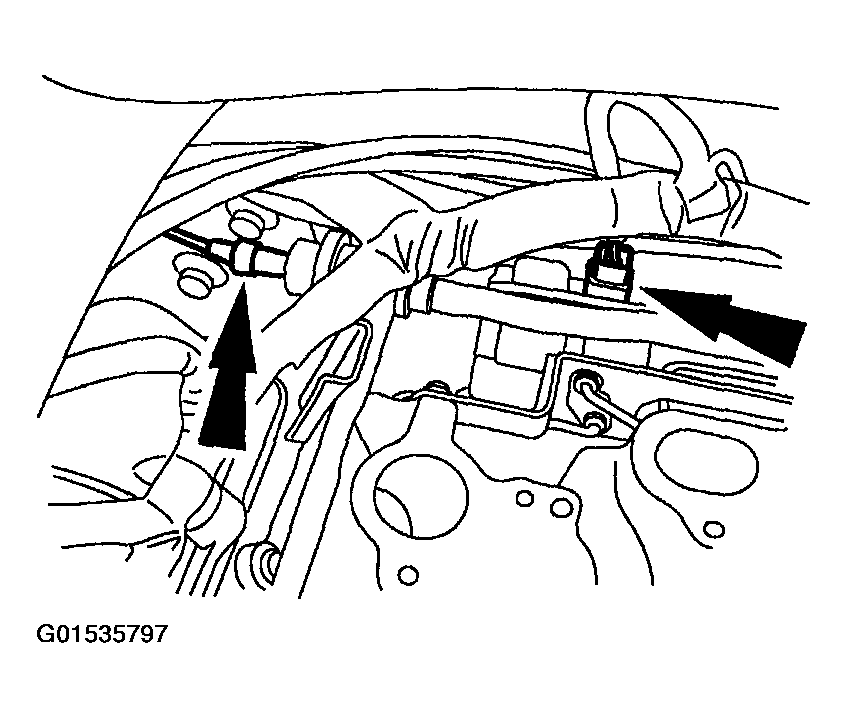

- Disconnect the IMRC electrical connector and the fuel pressure regulator vacuum line.

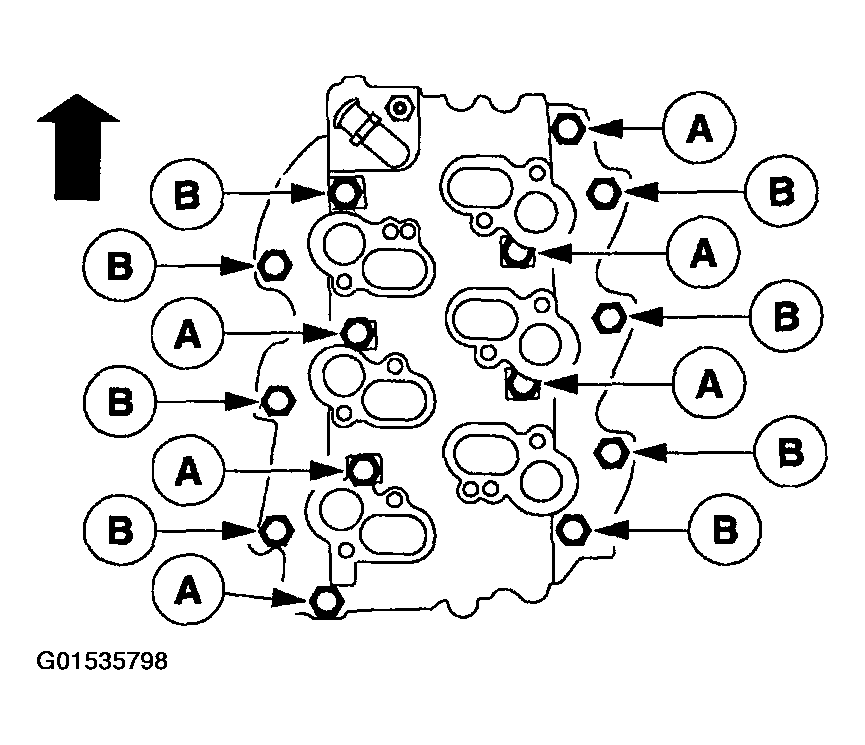

- Remove the (A) long lower intake manifold bolts, (B) the short lower intake manifold bolts and remove the lower intake manifold.

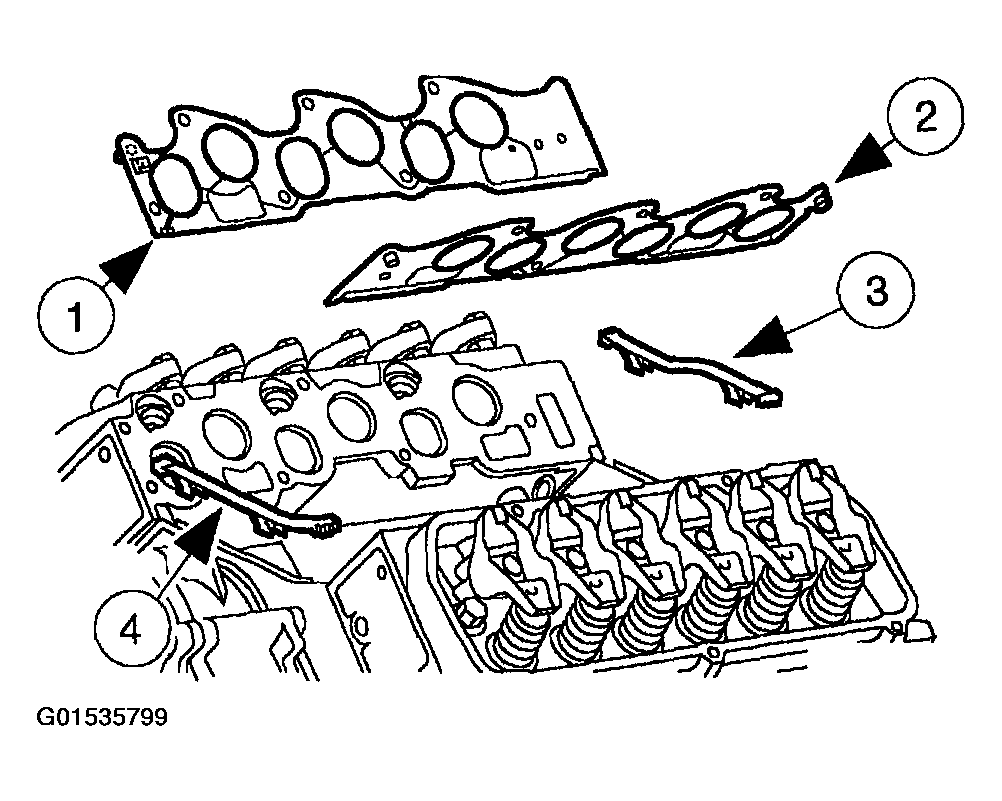

- Remove and discard the lower intake manifold sealing components:
- Intake manifold gasket (9441) (LH)
- Intake manifold gasket (9439) (RH)
- Intake manifold rear end seal
- Intake manifold front end seal
WARNING:
Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and can be ignited, resulting in possible personal injury.
NOTE:
One shown, all similar.
NOTE:
One shown, all similar.
NOTE:
The fuel charging components, and IMRC are removed with the lower intake manifold.
NOTE:
If the lower intake manifold is to be replaced, refer to AIR INDUCTION SYSTEMS
for removal of the IMRC.
