Output Shaft Speed (OSS) Sensor: Installation

    NOTE: Apply a light coat of petroleum jelly to the O-ring before installation.
  1. Install the OSS sensor.
    • Connect the OSS sensor electrical connector.

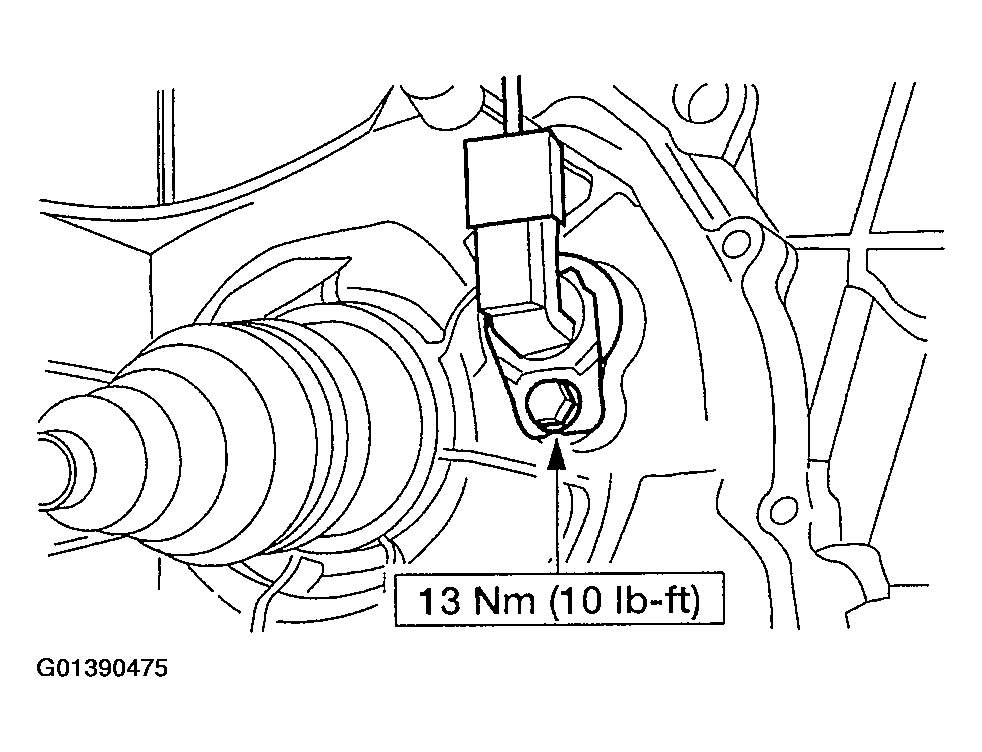

      Fig 1: Connecting OSS Sensor Electrical Connector
      G01390475Courtesy of FORD MOTOR CO.
  2. Install the splash shield.

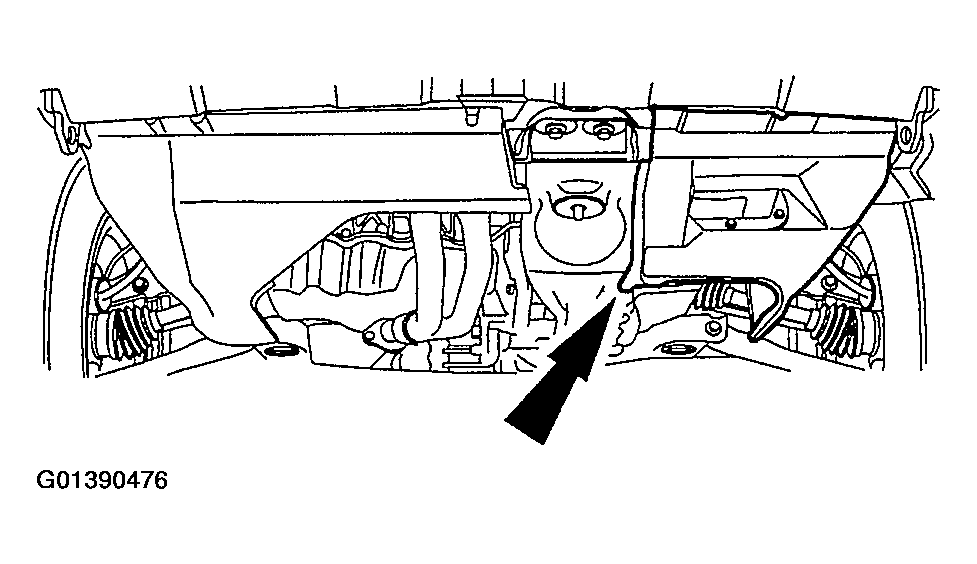

    Fig 2: Installing Splash Shield
    G01390476Courtesy of FORD MOTOR CO.
  3. Install the LH front wheel.
  4. Lower vehicle.
  5. Check the transmission fluid level, add fluid as necessary using MERCON®: Multi-Purpose (ATF) Transmission Fluid XT-2-QDX or equivalent meeting MERCON®: specification.
  6. Start the engine and move the transaxle range selector lever through all gear positions.
