Direct Clutch Pack

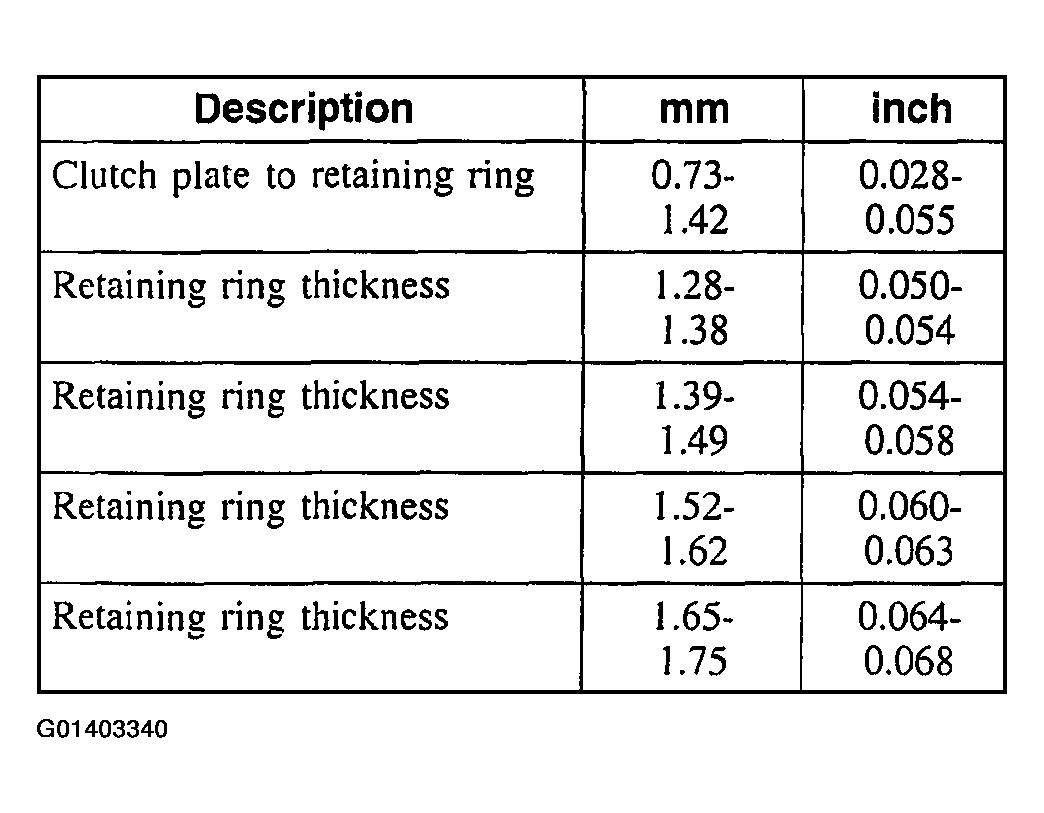

Fig 1: Direct Clutch Pack Description
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
