Cylinder Block: Assembly

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Moving components must be lubricated with clean engine oil before assembly.

CAUTION: Components with oil holes must be correctly aligned with oil feed holes.

If necessary, install plugs and dowels:
- Cylinder block dowels (A)
- Oil gallery plugs (B)
- Water jacket plugs (C)

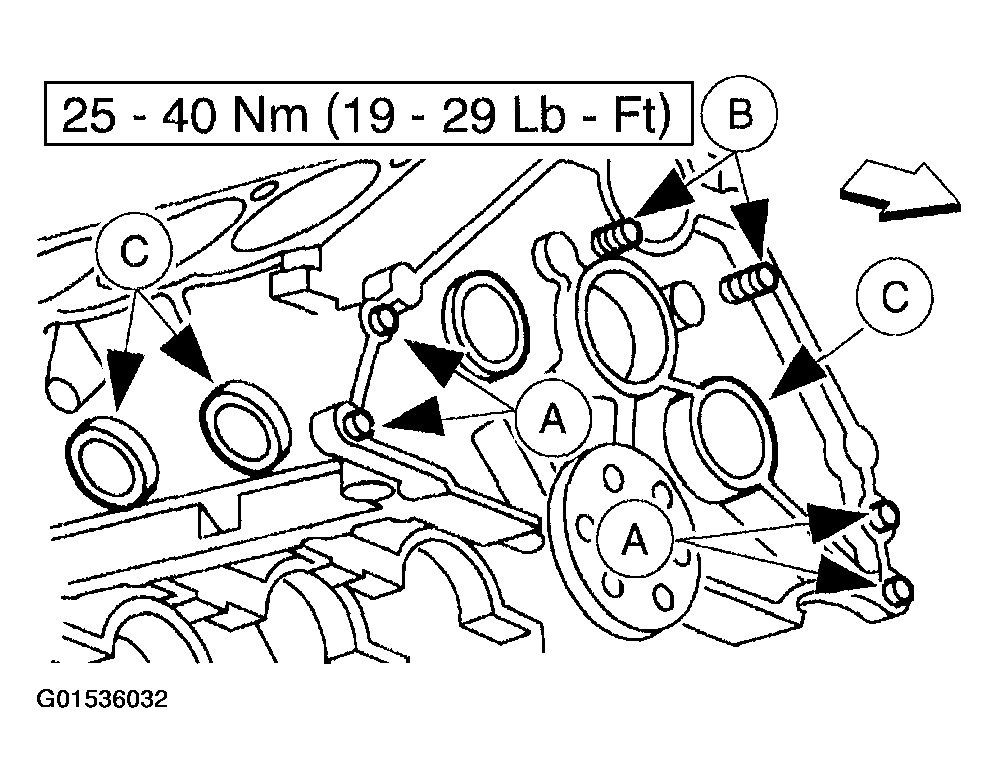

Fig 1: Installing Cylinder Block Dowels
Courtesy of FORD MOTOR CO.
Install the block heater, if equipped. For additional information, refer to ENGINE COOLING .
Use the Camshaft Bearing Set to install the engine dynamic balance shaft bearings.

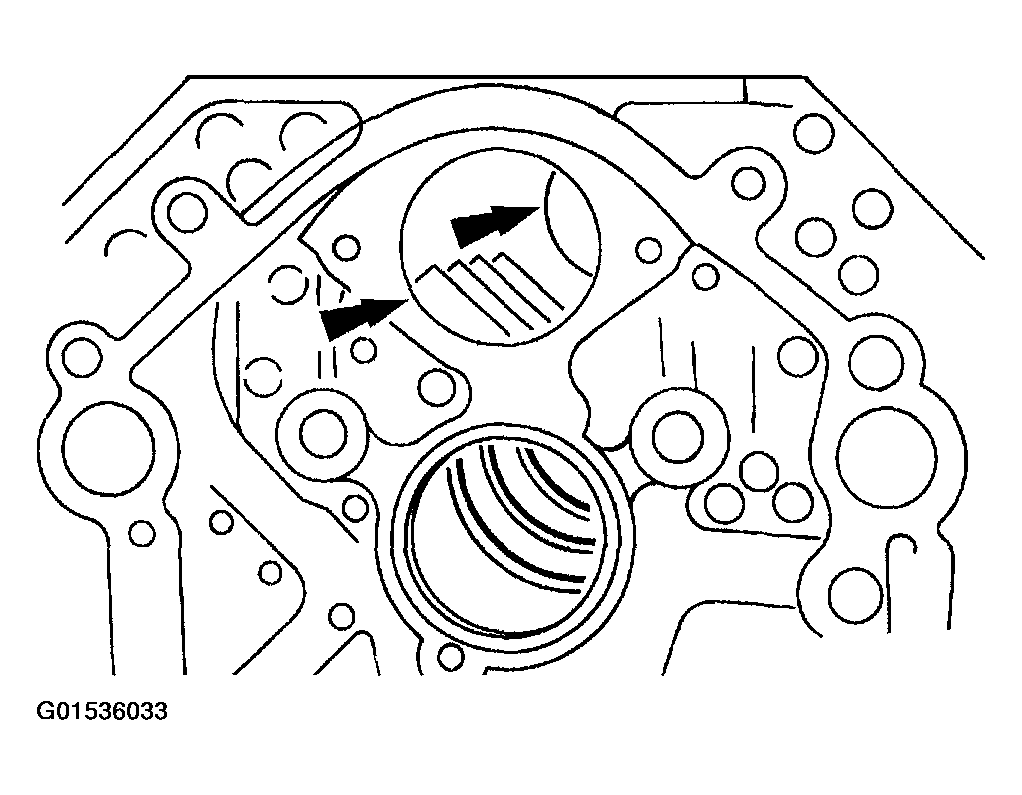

Fig 2: Installing Engine Dynamic Balance Shaft Bearings
Courtesy of FORD MOTOR CO.
Use the Camshaft Service Set to install the camshaft bearings.

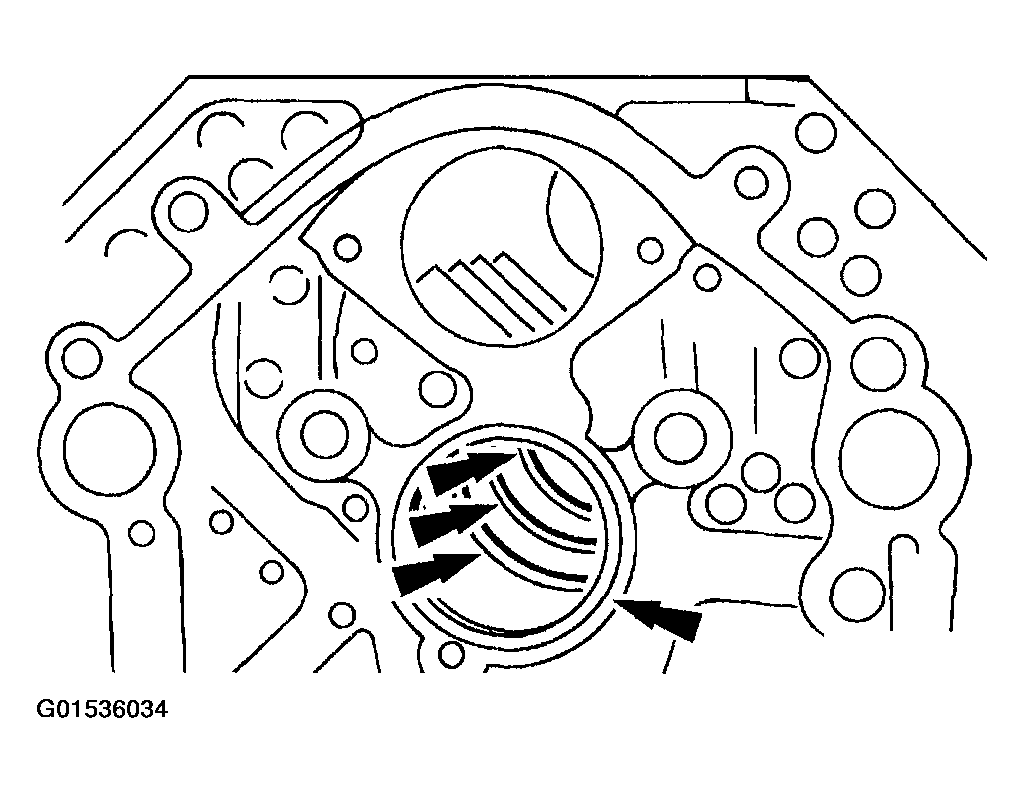

Fig 3: Identifying Camshaft Bearings
Courtesy of FORD MOTOR CO.
Install the (A) engine dynamic balance shaft bearing cover and the (B) camshaft bearing cover.

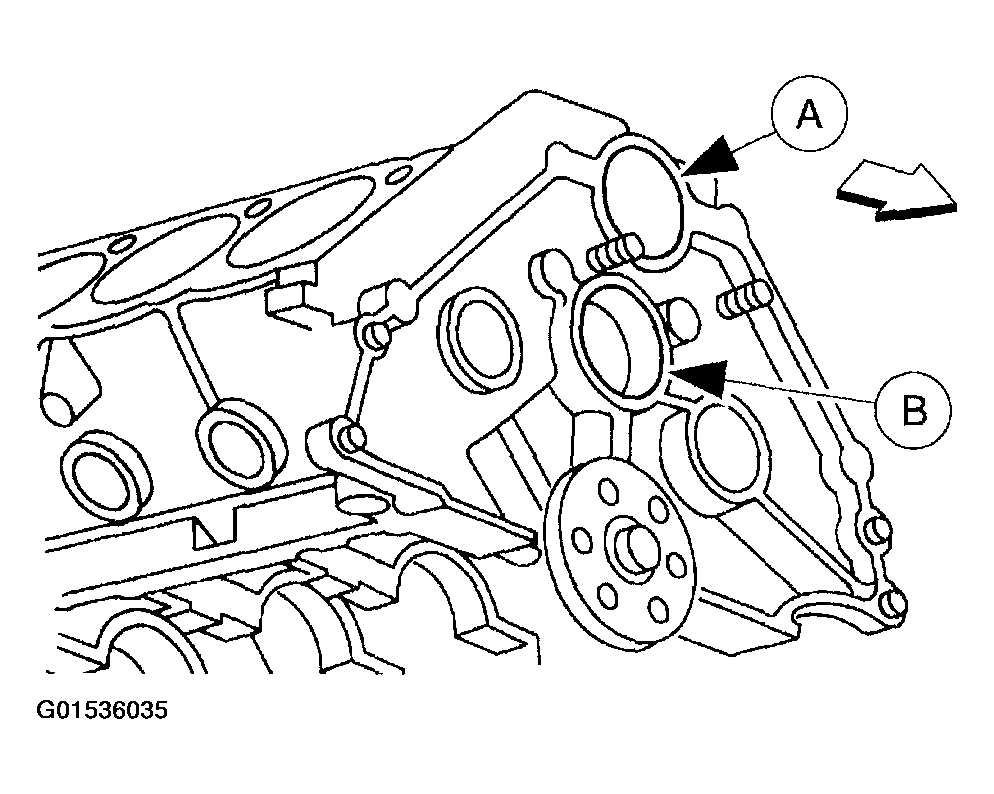

Fig 4: Installing Engine Dynamic Balance Shaft Bearing Cover
Courtesy of FORD MOTOR CO.
