Cylinder Block: Disassembly

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

Use the Camshaft Service Set to remove the camshaft bearings (6261).

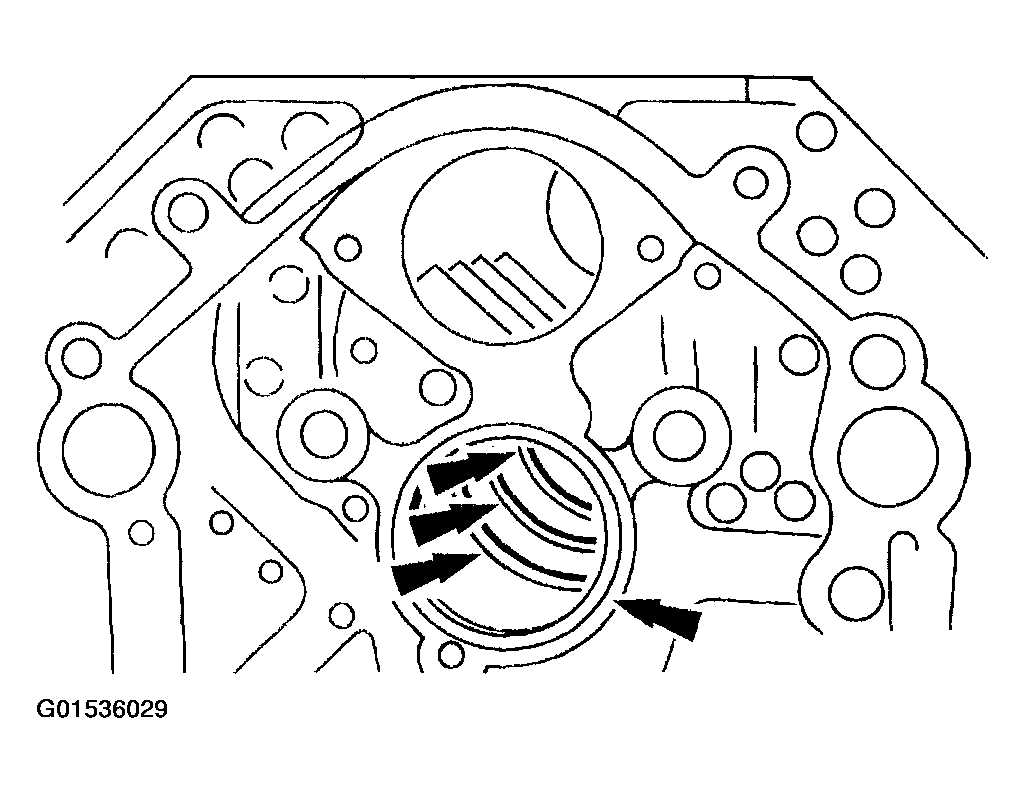

Fig 1: Identifying Camshaft Bearings
Courtesy of FORD MOTOR CO.
Use the Camshaft Service Set to remove the engine dynamic balance shaft bearings.

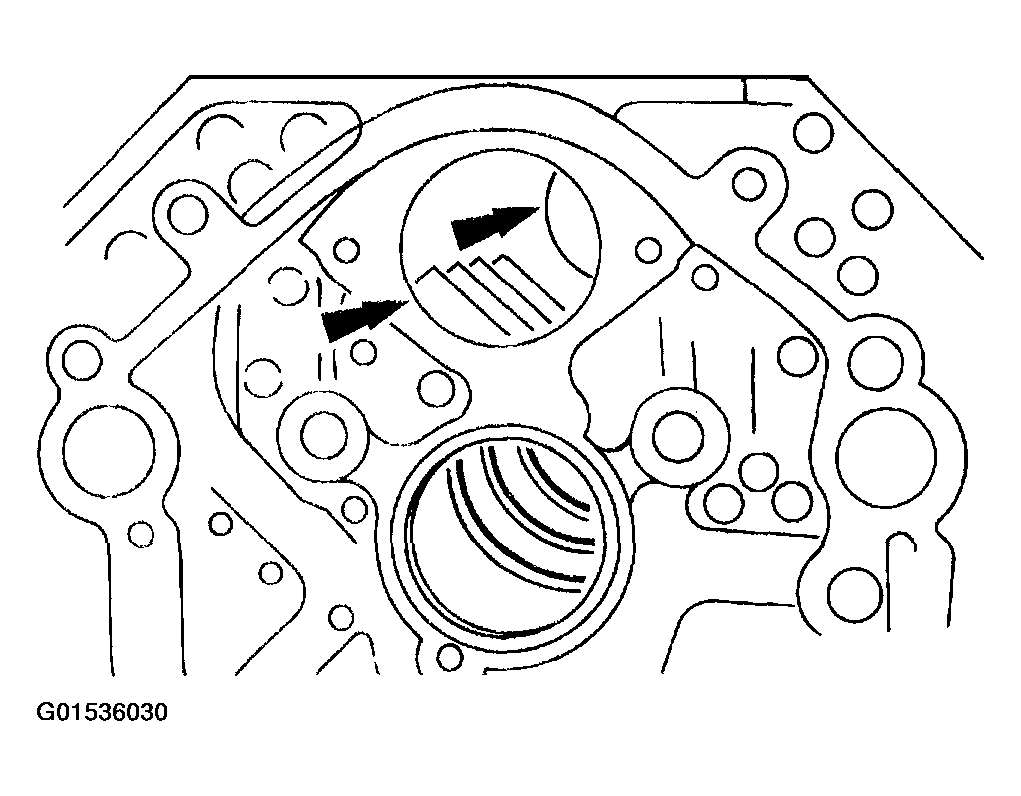

Fig 2: Identifying Engine Dynamic Balance Shaft Bearings
Courtesy of FORD MOTOR CO.
Remove the block heater, if so equipped. For additional information, refer to ENGINE COOLING .

NOTE: For cleaning purposes, plugs should be removed.

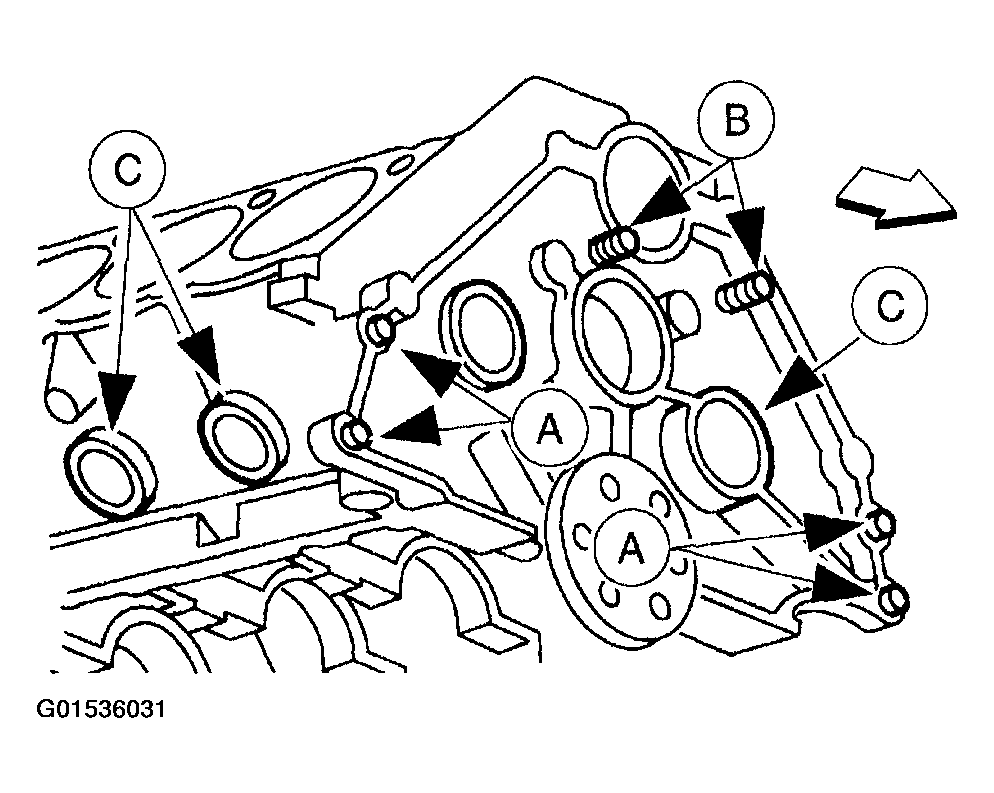

Fig 3: Removing Cylinder Block Dowels

Courtesy of FORD MOTOR CO.

If necessary, remove plugs and dowels
- Cylinder block dowels (A)
- Oil gallery plugs (B)
- Water jacket plugs (C)
