Disassembly And Assembly Of Subassemblies: Piston: Disassembly

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The piston rings are the only components available for replacement.

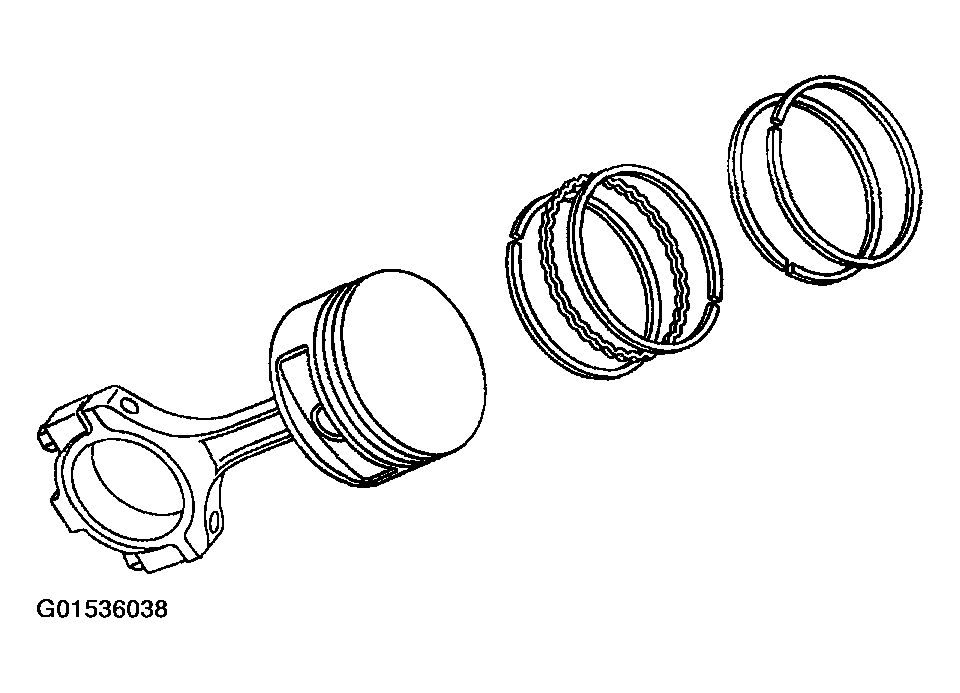

Fig 1: Removing Piston Rings

Courtesy of FORD MOTOR CO.

Remove the piston rings.
Using the special tool, press the piston pin out from the connecting rod and piston assembly.

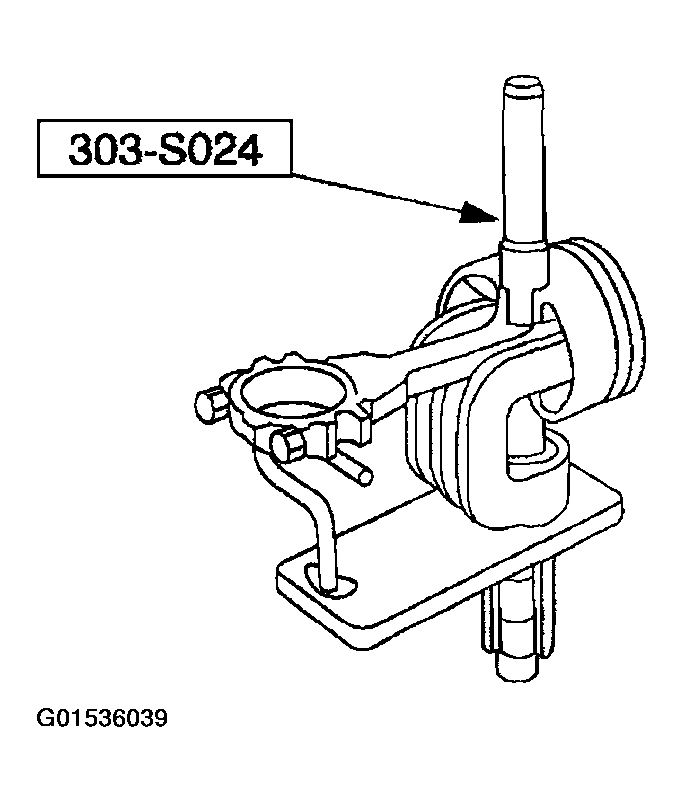

Fig 2: Removing Piston Pin From Connecting Rod
Courtesy of FORD MOTOR CO.
Remove the connecting rod from the piston

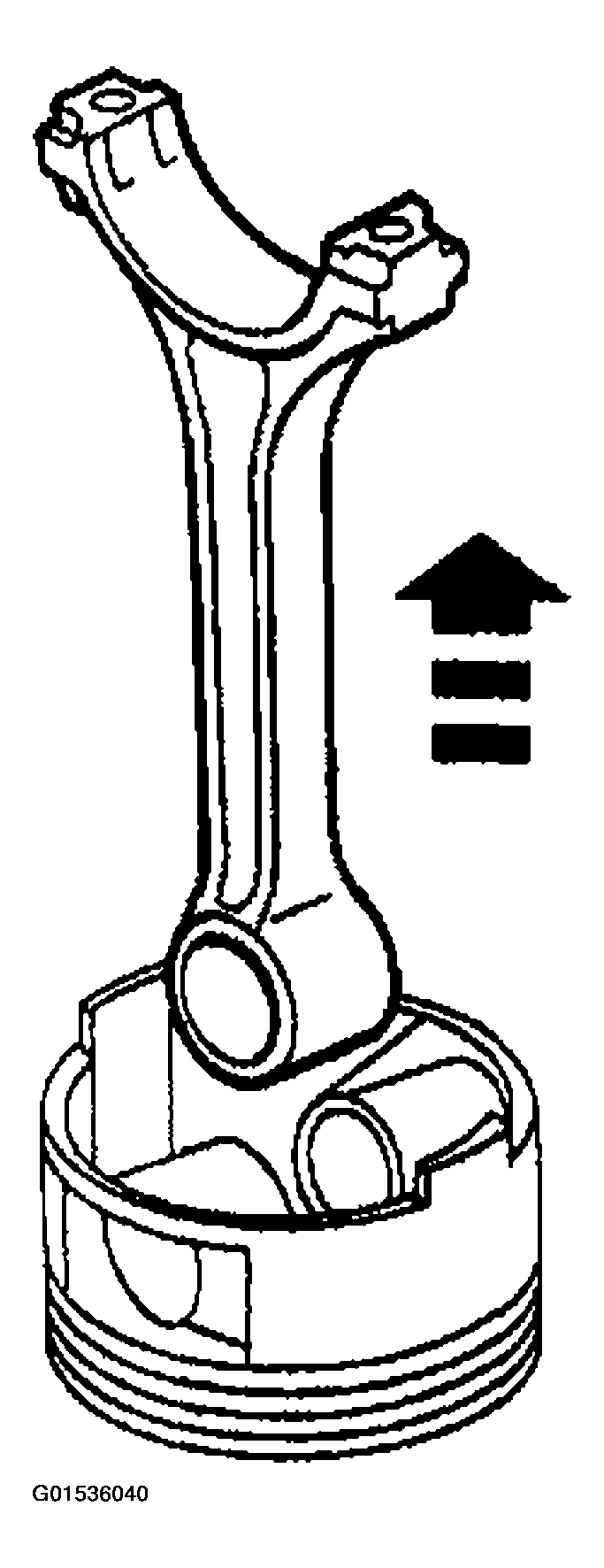

Fig 3: Removing Connecting Rod From Piston
Courtesy of FORD MOTOR CO.
Clean and inspect the connecting rod and piston. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .
