Test G: Flash Code 2 - Brake Pedal Position Switch Failure
PINPOINT TEST G: FLASH CODE 2 - BRAKE PEDAL POSITION SWITCH CIRCUIT FAILURE

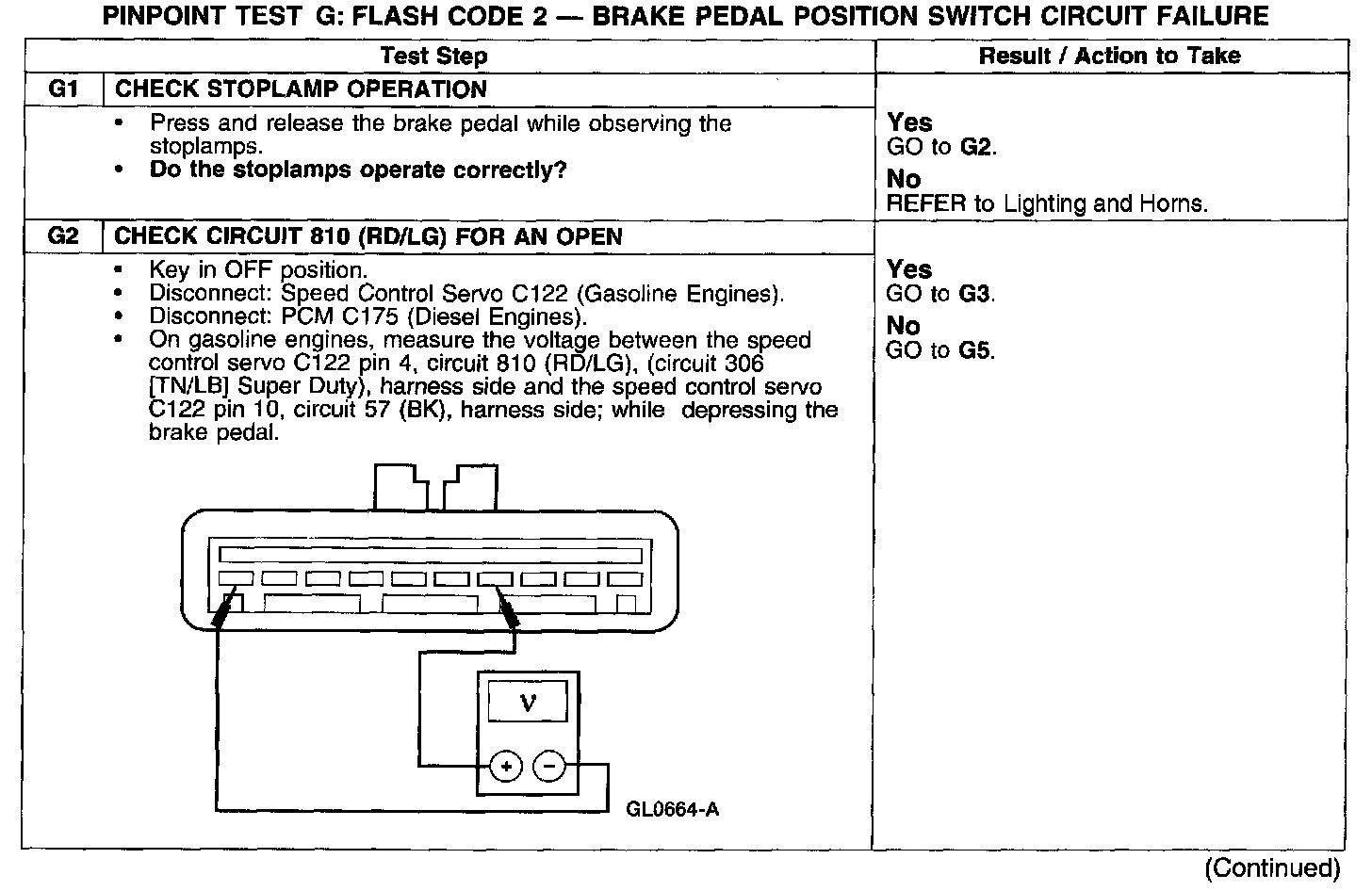

Test G1-G2:

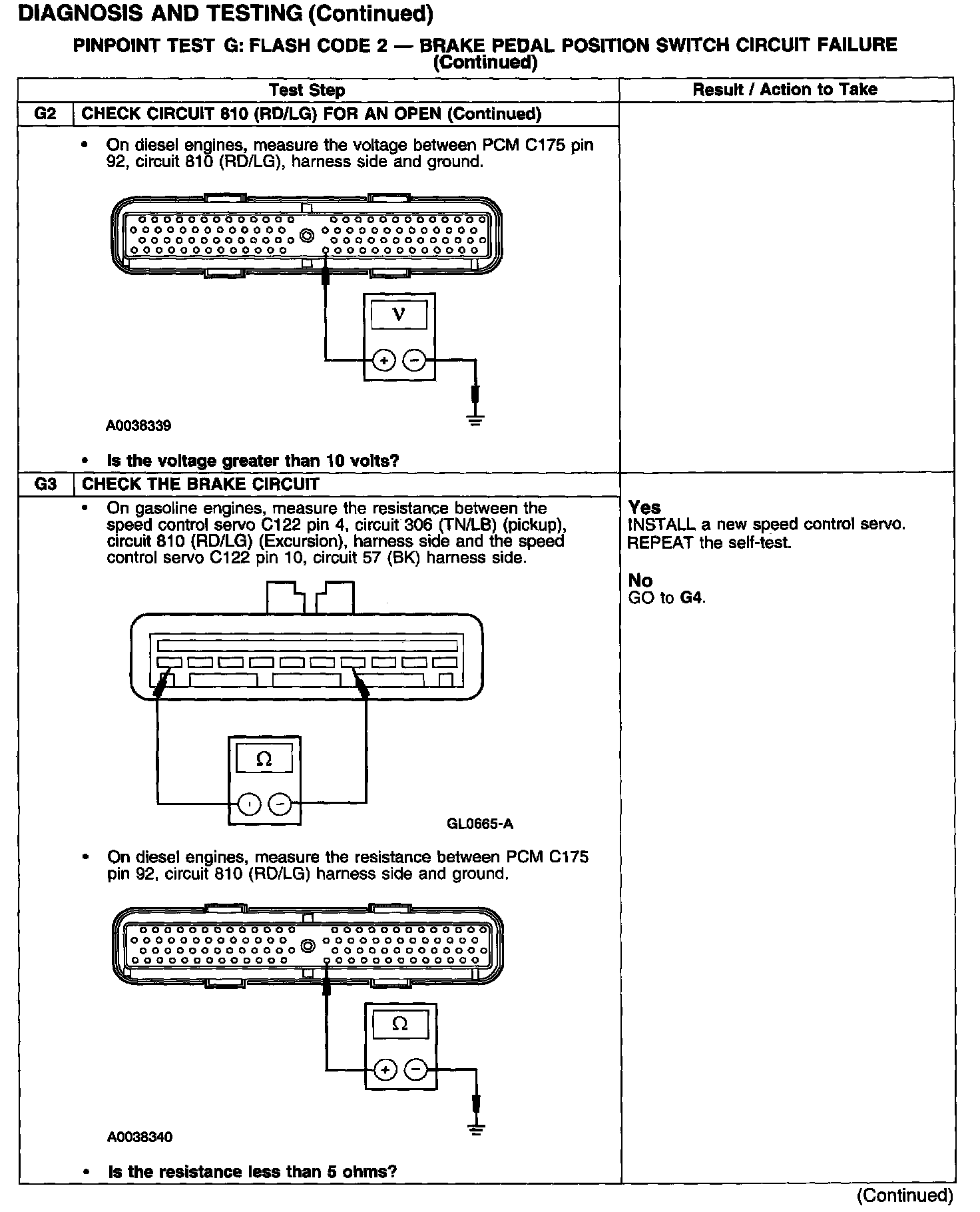

Test G2-G3:

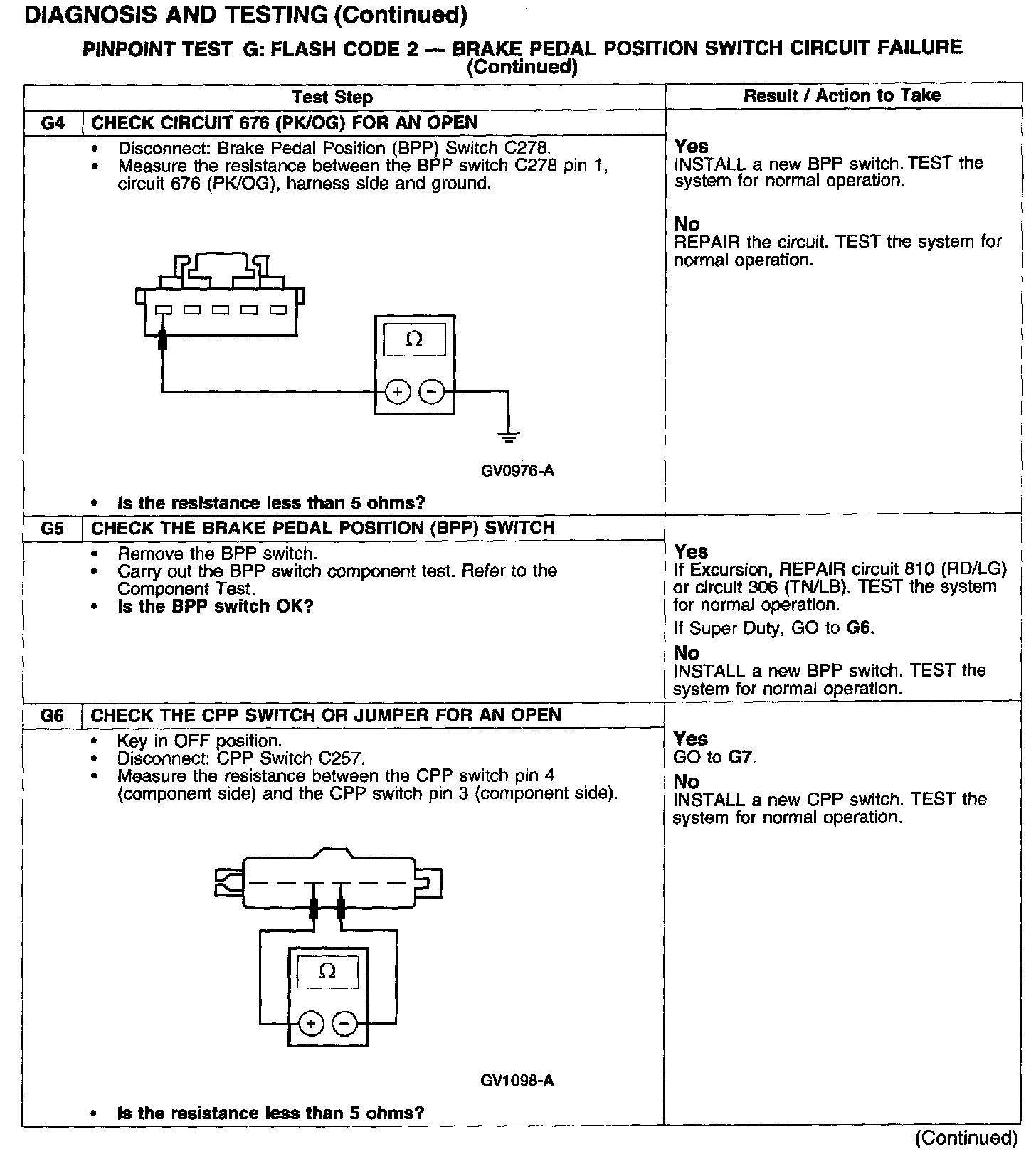

Test G4-G6:

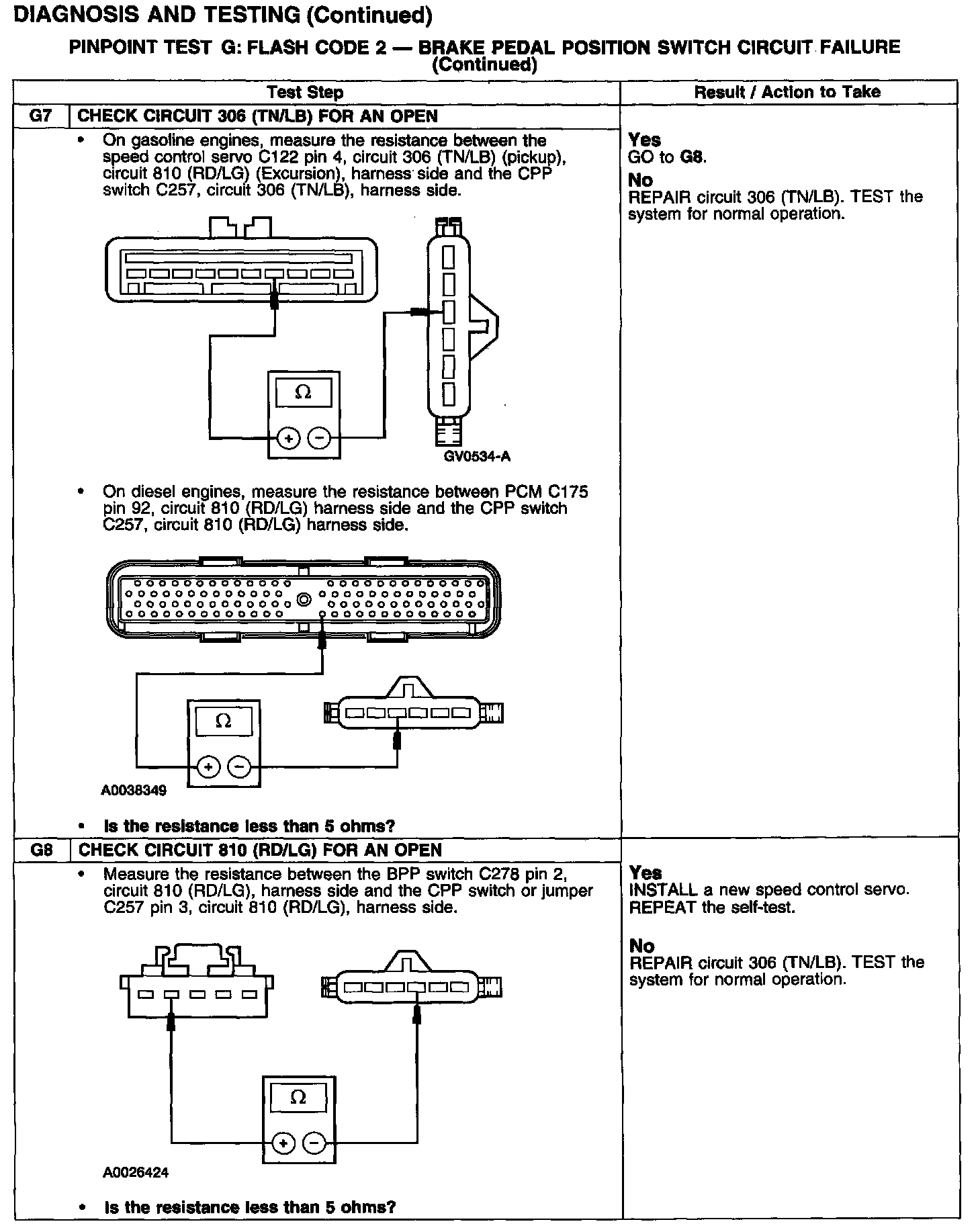

Test G7-G8:
