Front Cross-Member: Service and Repair

Transmission Support Crossmember-Excursion

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Install a suitable high-lift transmission jack.

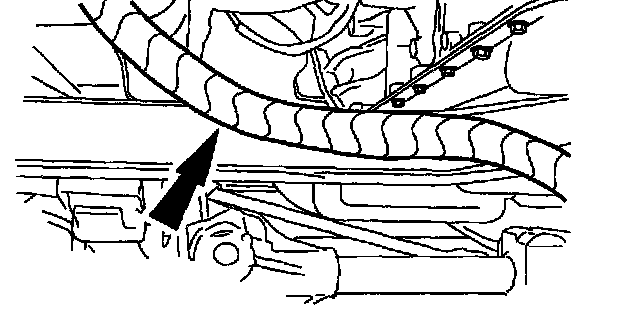

3. Remove the wire harness from the rear crossmember.

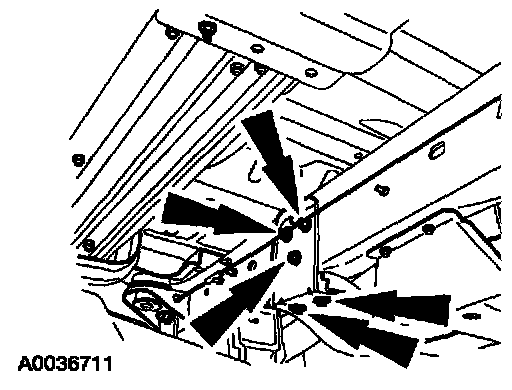

4. Remove the LH crossmember bolts and nuts.

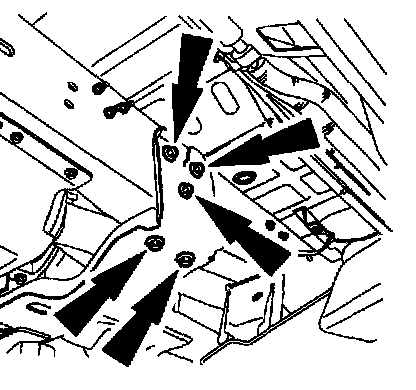

5. Remove the RH crossmember bracket bolts and nuts.

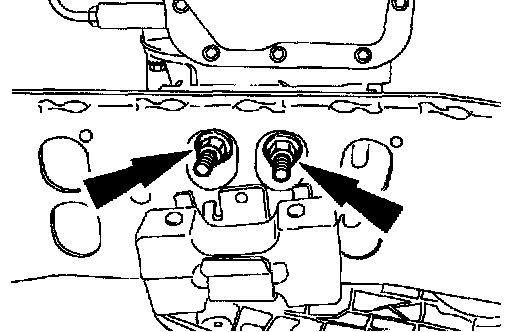

6. Remove the rear transmission mount nuts and crossmember.

Installation

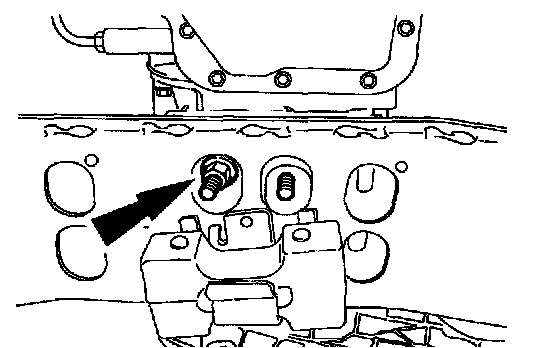

1. Position the crossmember to the transmission mount and loosely install one nut to hold the crossmember in place.

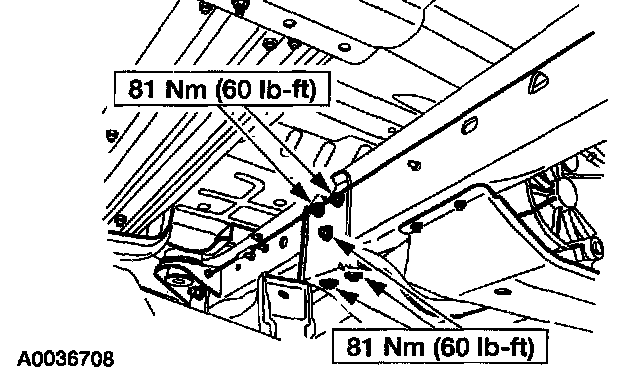

2. Install the LH crossmember bolts.

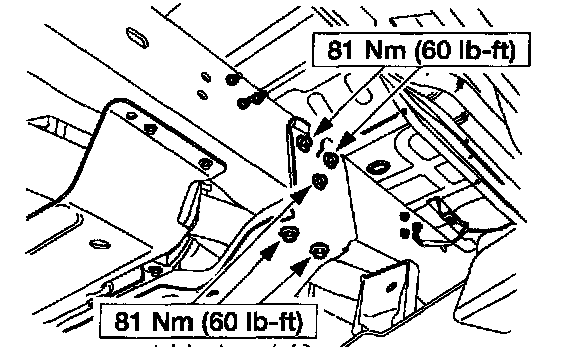

3. Tighten the RH crossmember bolts.

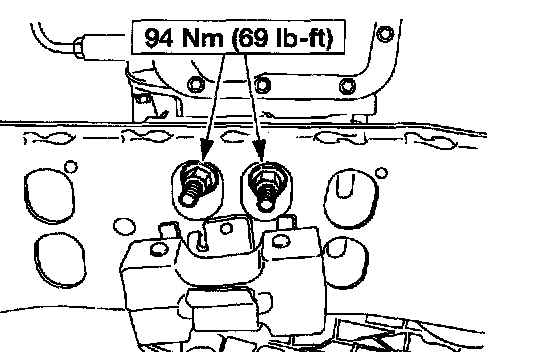

4. Tighten the rear insulator nuts.





5. Connect the wire harness to the rear of the crossmember.
