Test F

PINPOINT TEST F: THE DEFROST SYSTEM IS INOPERATIVE
DTC - B1342

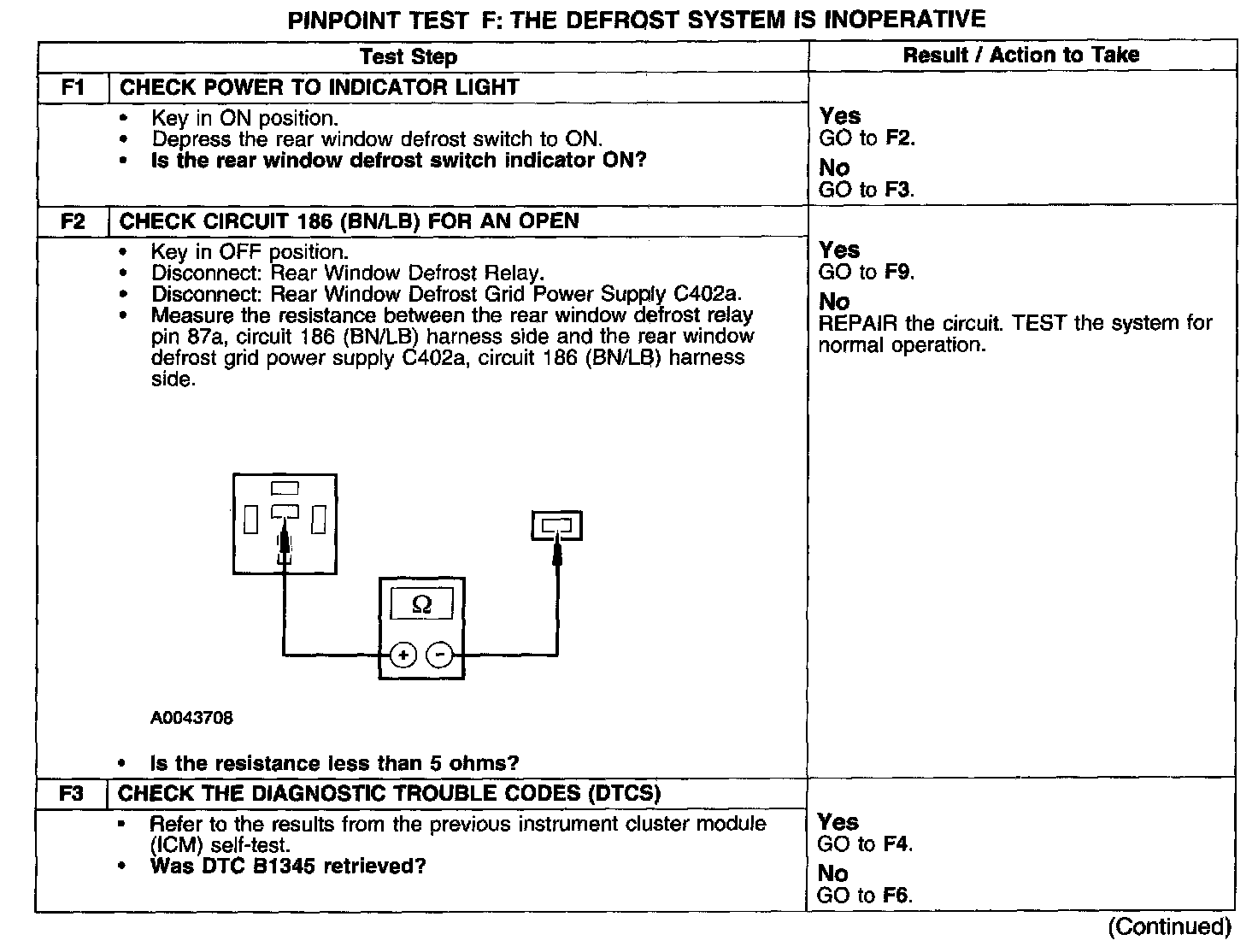

Test F1-F3:

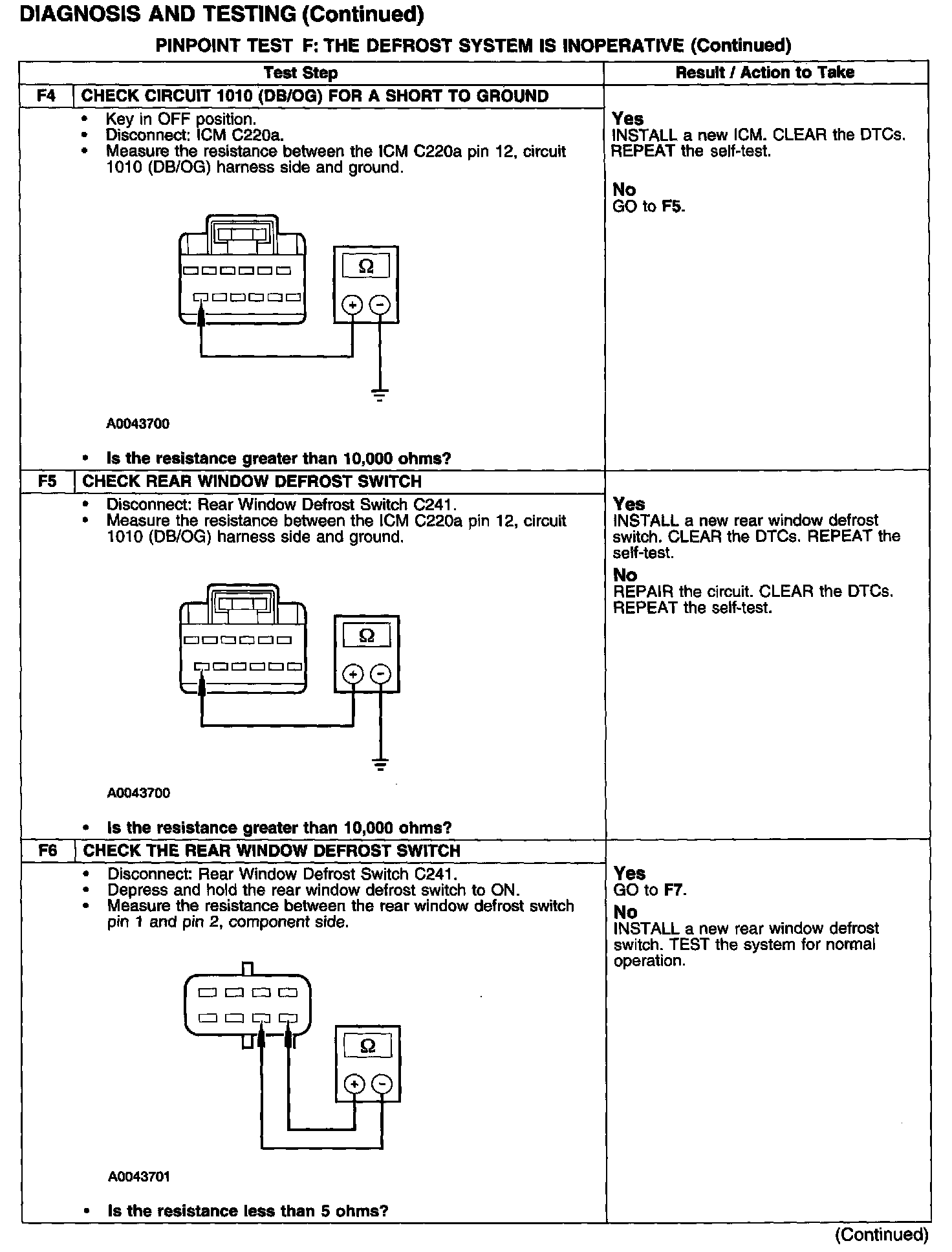

Test F4-F6:

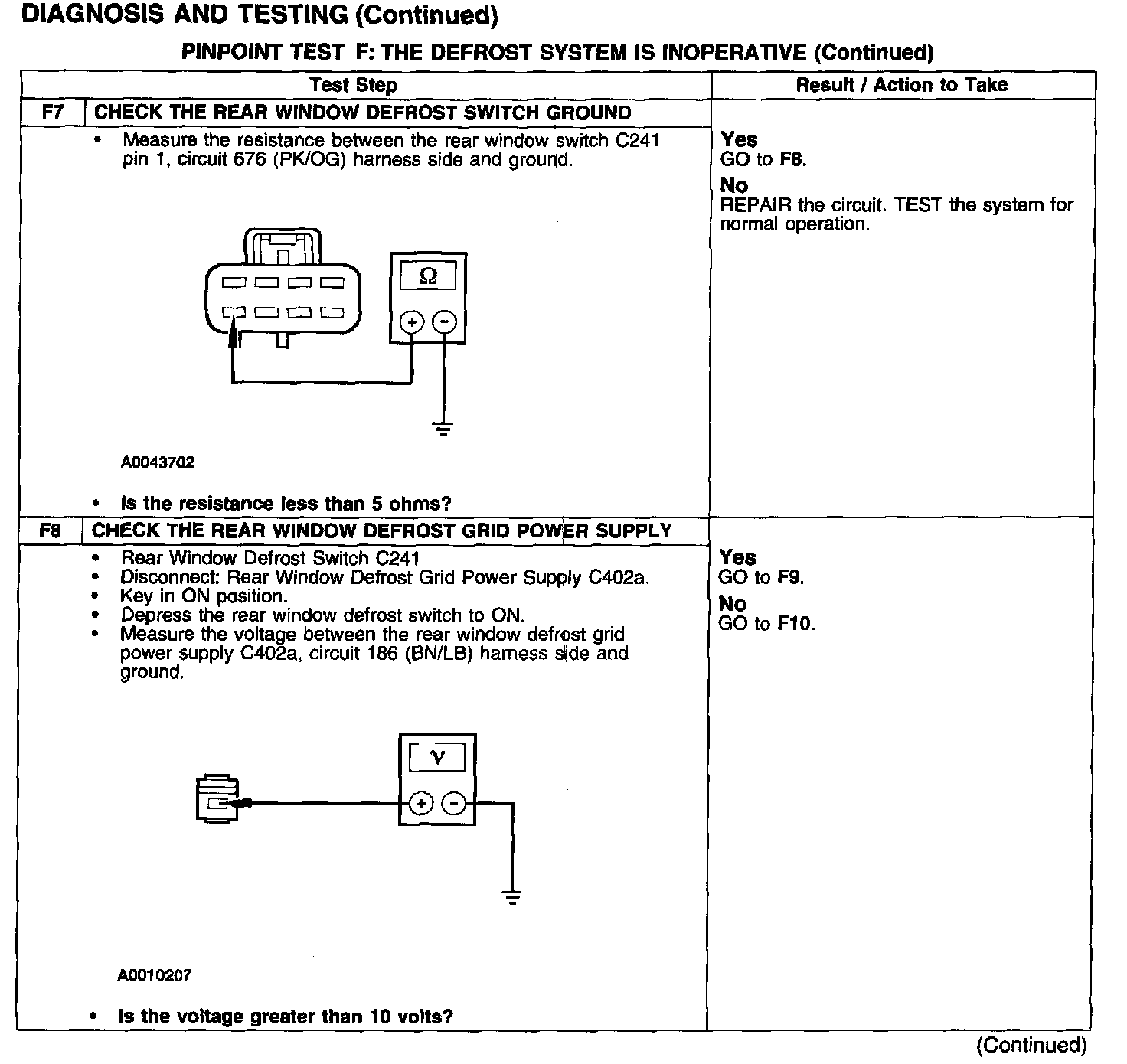

Test F7-F8:

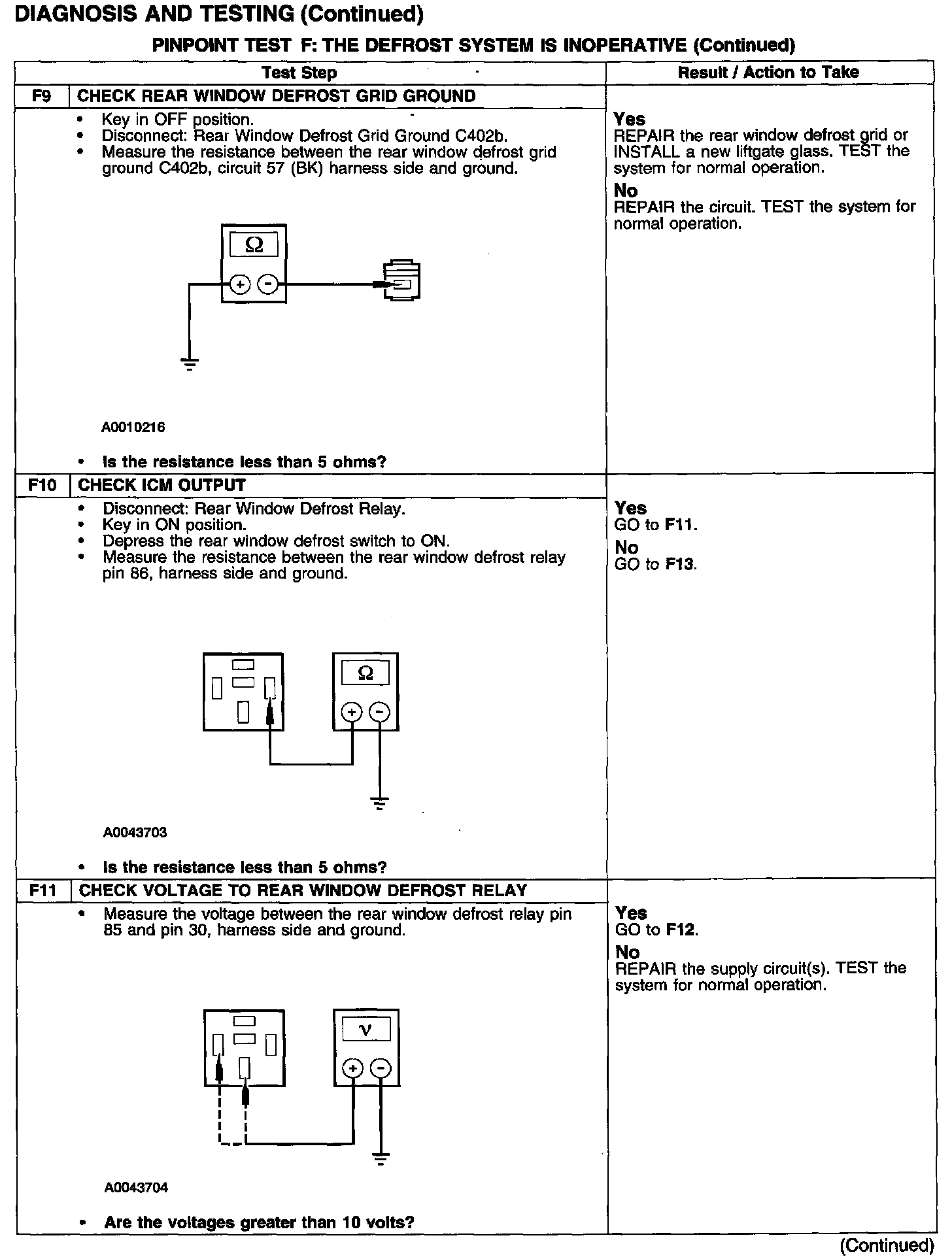

Test F9-F11:

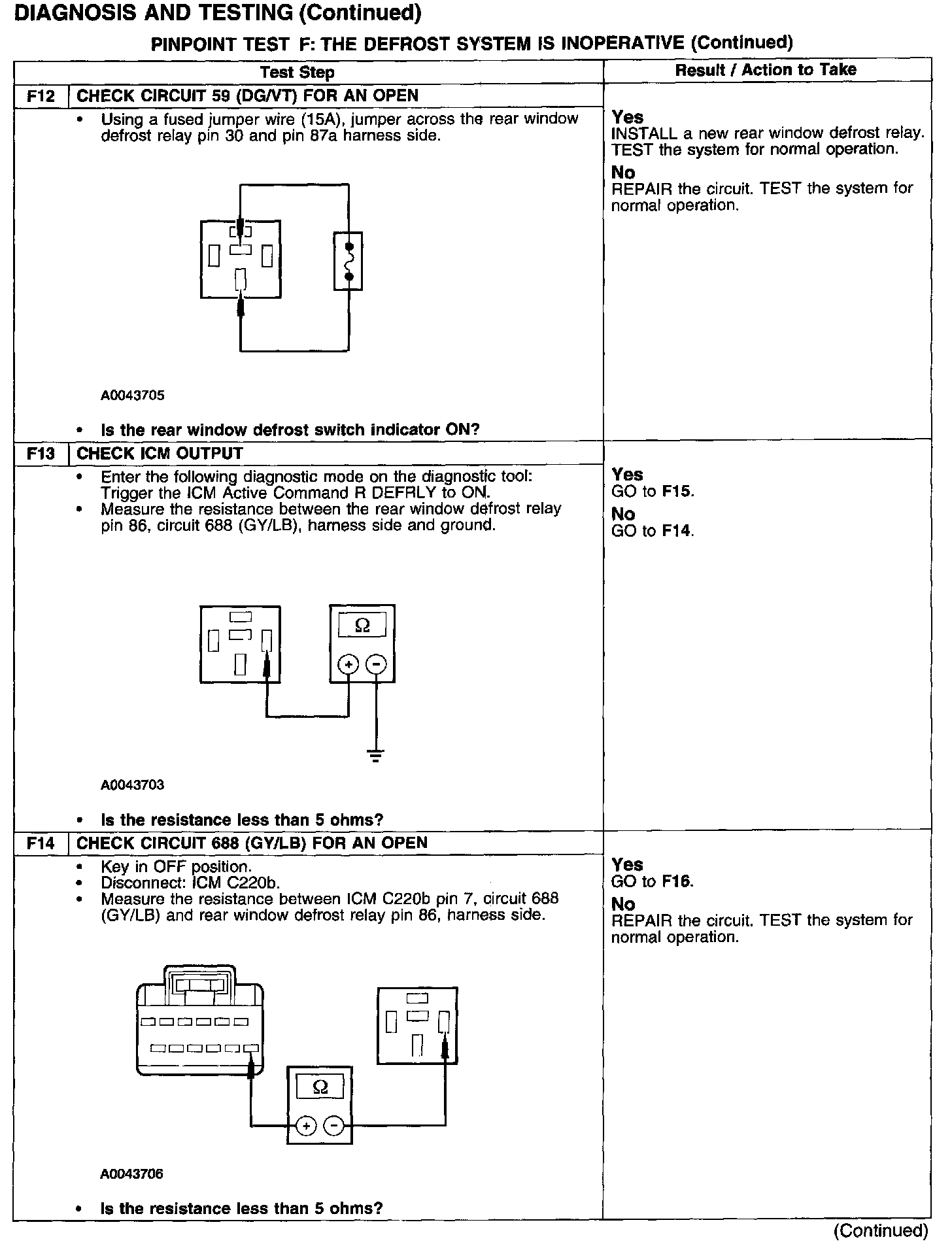

Test F12-F14:






Test F15-F16:
