Pressure Feedback Exhaust Sensor: Service and Repair

REMOVAL
1. Turn the ignition switch to the OFF position.

CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.

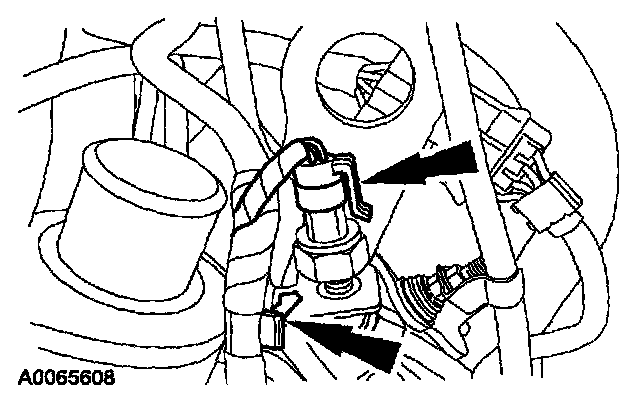

2. Disconnect the electrical harness clip and disconnect the exhaust back pressure sensor electrical connector.

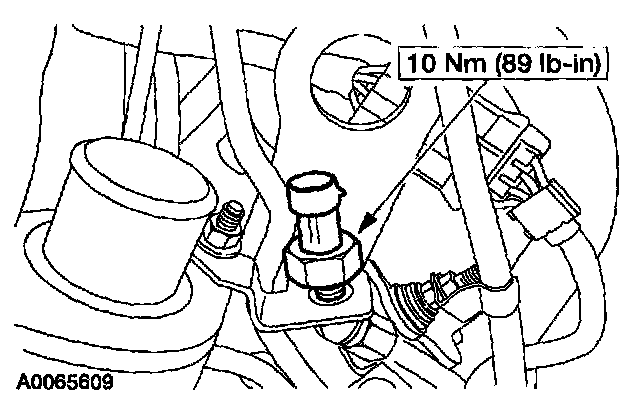

3. Remove the exhaust back pressure sensor.

INSTALLATION
1. To install, reverse the removal procedure.
