Tests AT

PINPOINT TEST AT: FICM CIRCUIT FUEL DELIVERY ERROR

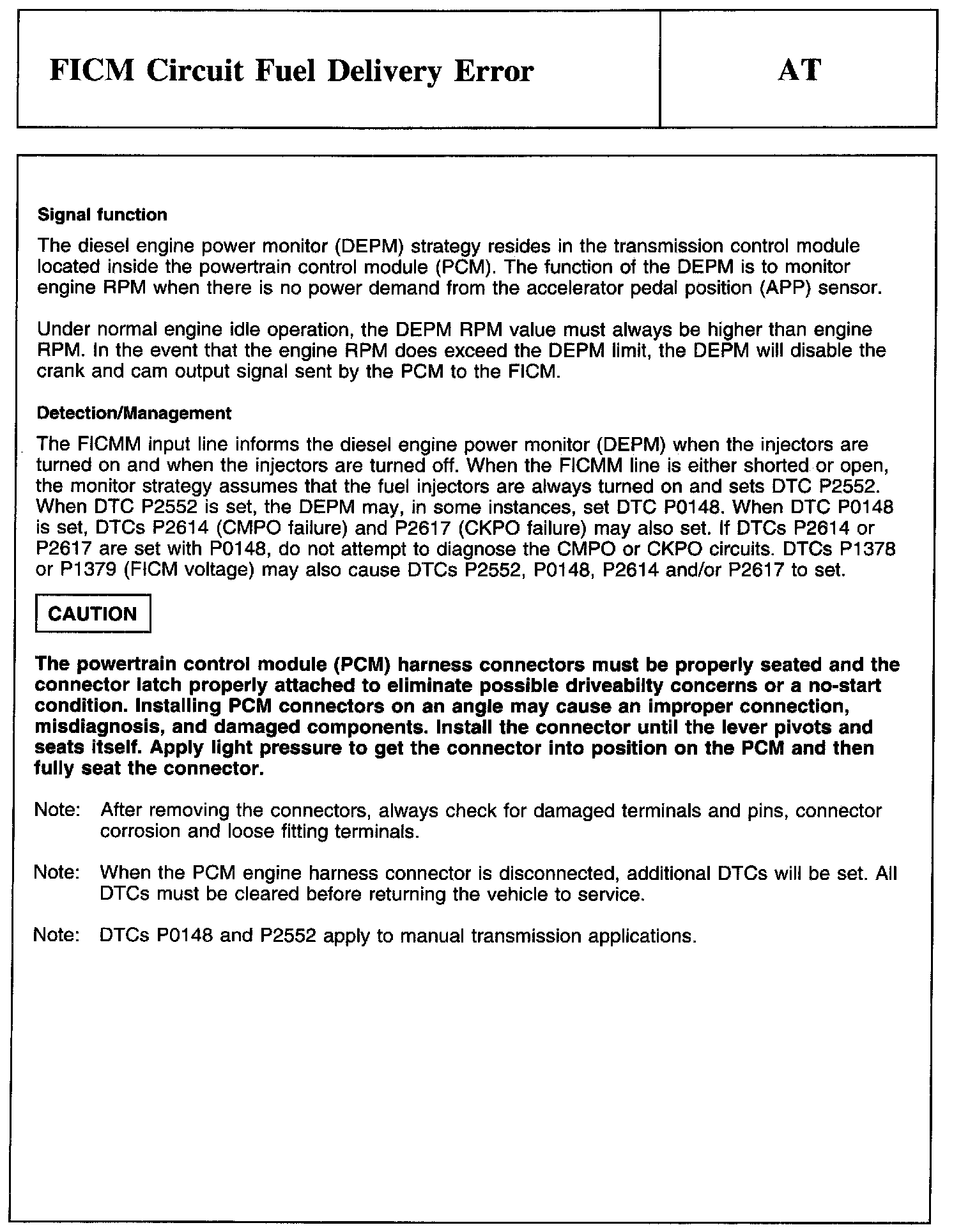

Description, Caution:

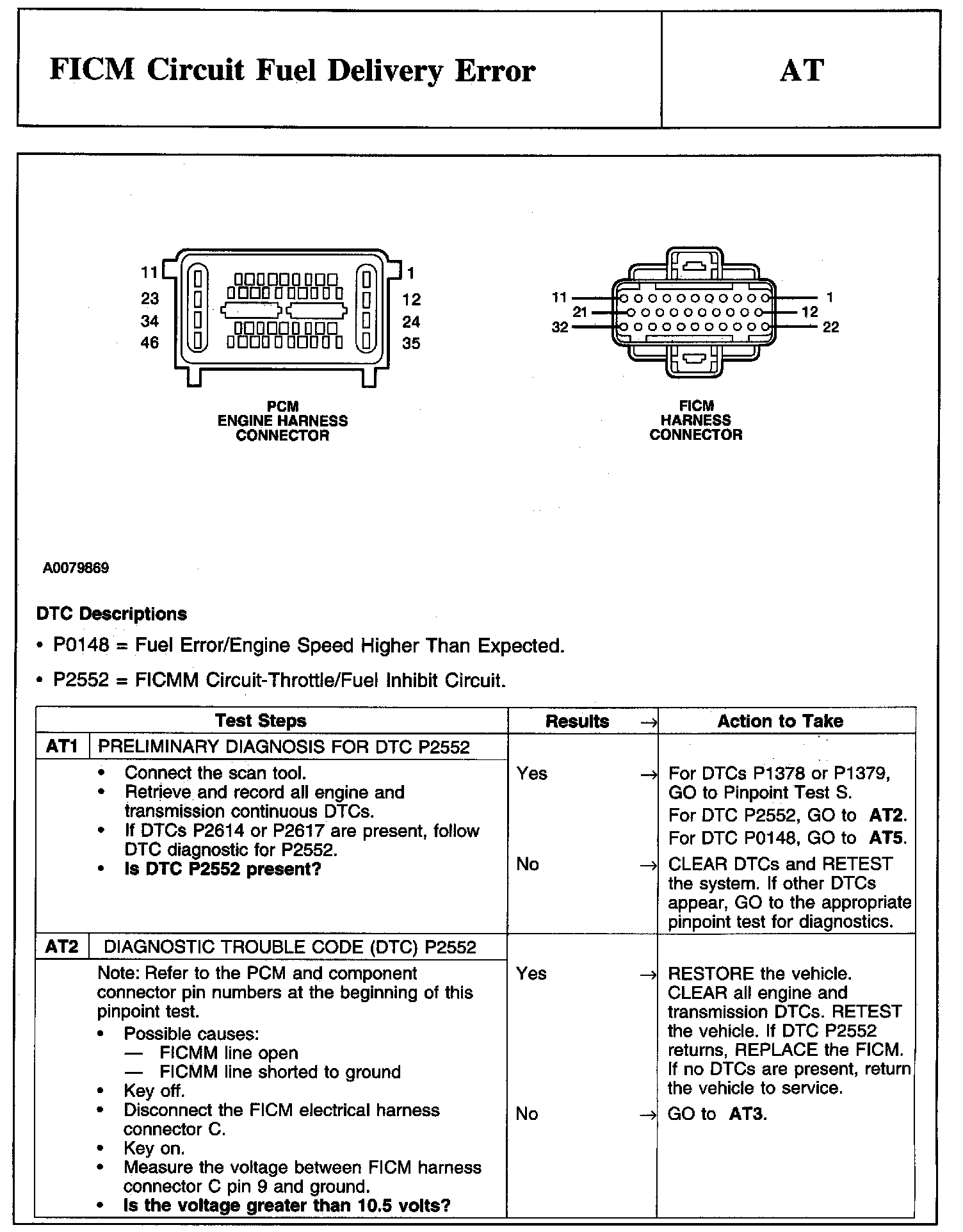

Schematic, Test AT1-AT2:

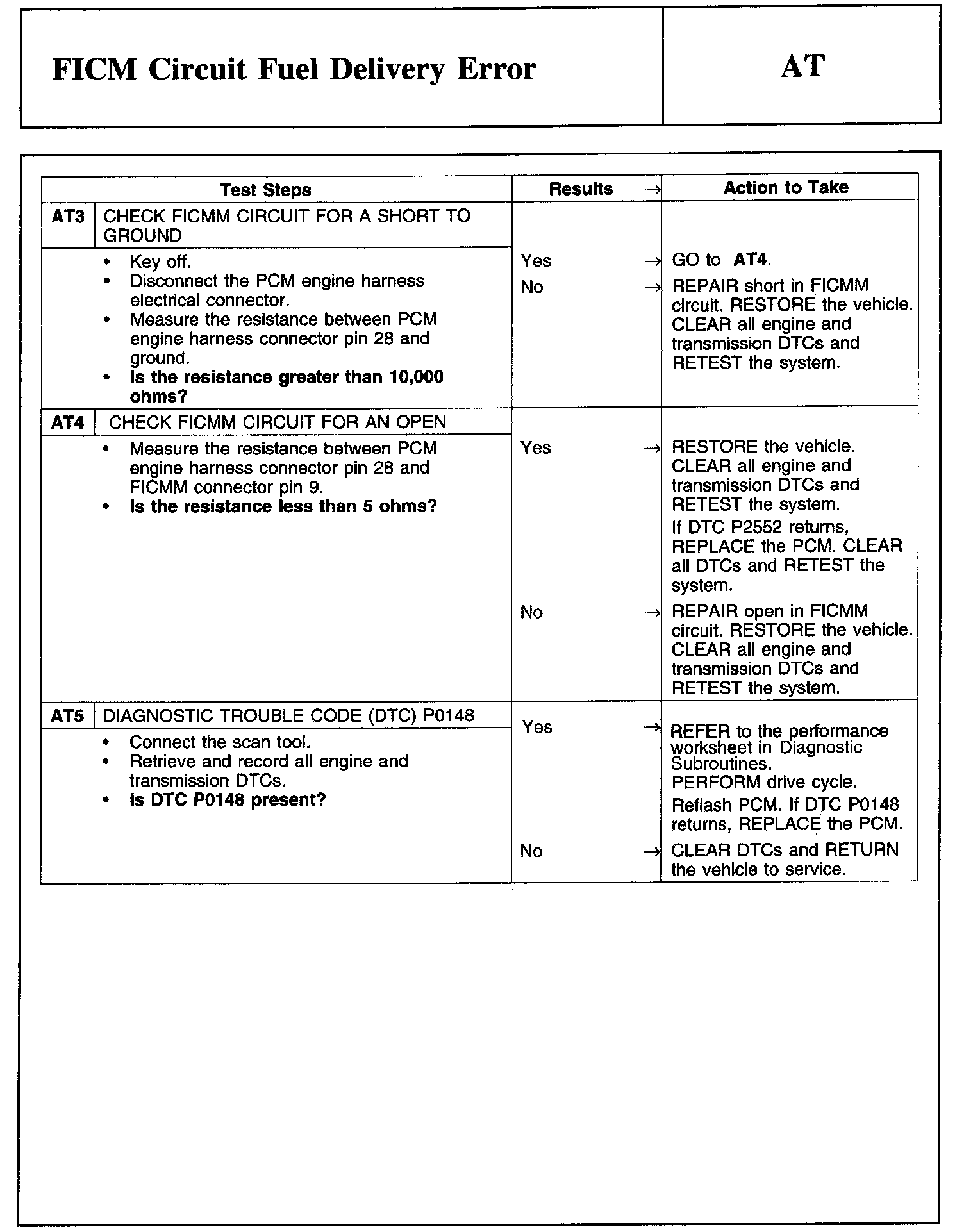

Test AT3-AT5:
