Ignition Lock Cylinder - Functional

IGNITION LOCK CYLINDER - FUNCTIONAL

REMOVAL
1. Disconnect the battery ground cable.







2. Remove the ignition switch lock cylinder.

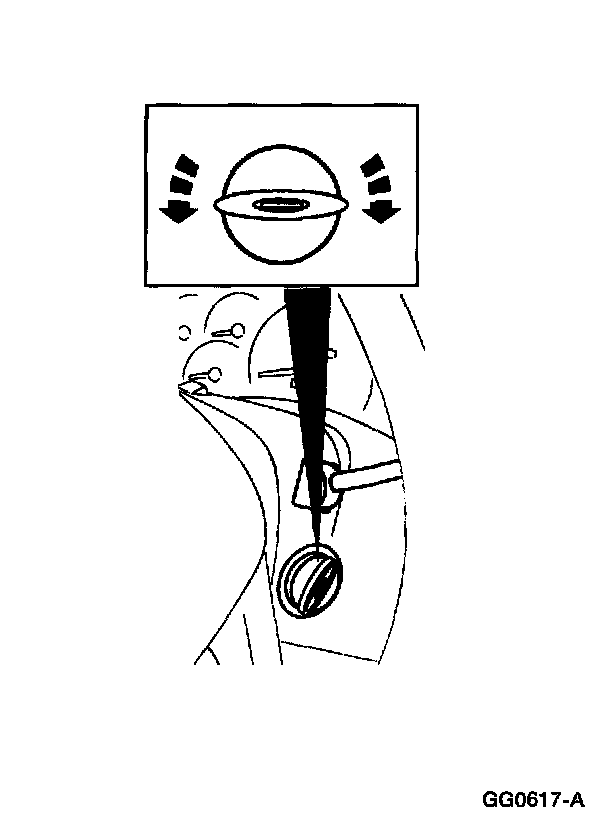

1 Insert the ignition key and turn to the RUN position.
2 Using a 1/8-inch drift, press the ignition switch lock cylinder release pin through the access hole while pulling out the ignition switch lock cylinder.

INSTALLATION







To install, reverse the removal procedure.

Verify ignition switch lock cylinder operation.
