Coolant Control Valve Solenoid C1034

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

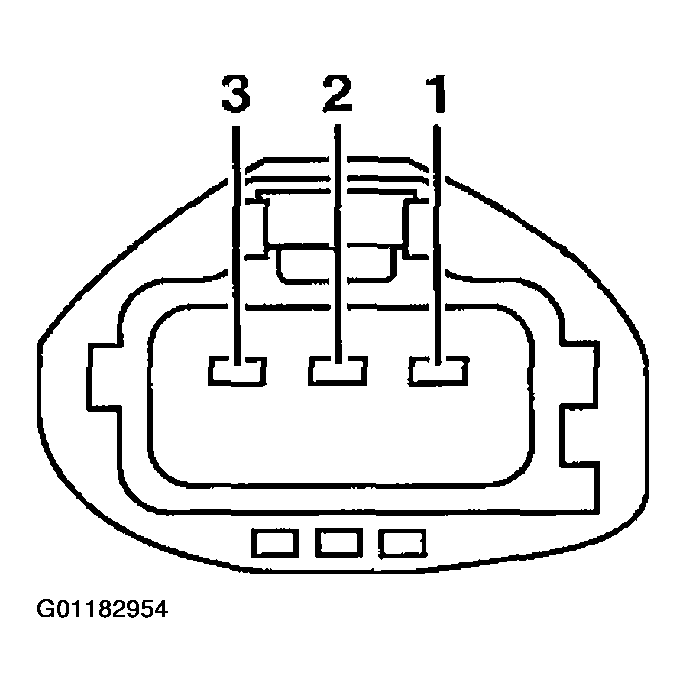

Fig 1: Identifying Coolant Control Valve Solenoid C1034
G01182954Courtesy of FORD MOTOR CO.
Fig 2: Coolant Control Valve Solenoid C1034 Pin Specifications Chart (1 - 3)
G01182955Courtesy of FORD MOTOR CO.
