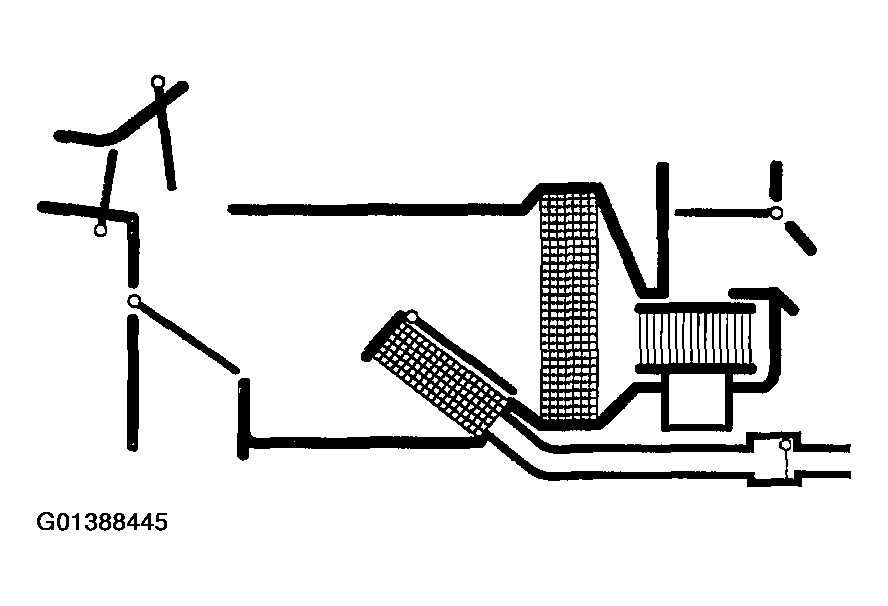

System Air Flow Description: Off
WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
When OFF is selected:
- The air inlet blend door is at full vacuum, closing off outside air and allowing only recirculated air.
- The vent/register blend door is at no vacuum and the defrost, footwell and blend airflow doors are at no vacuum, closing off the passages to the driver, passenger and center registers.
- The blower motor and the A/C compressor are off.
