System Air Flow Description: Panel/Floor

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

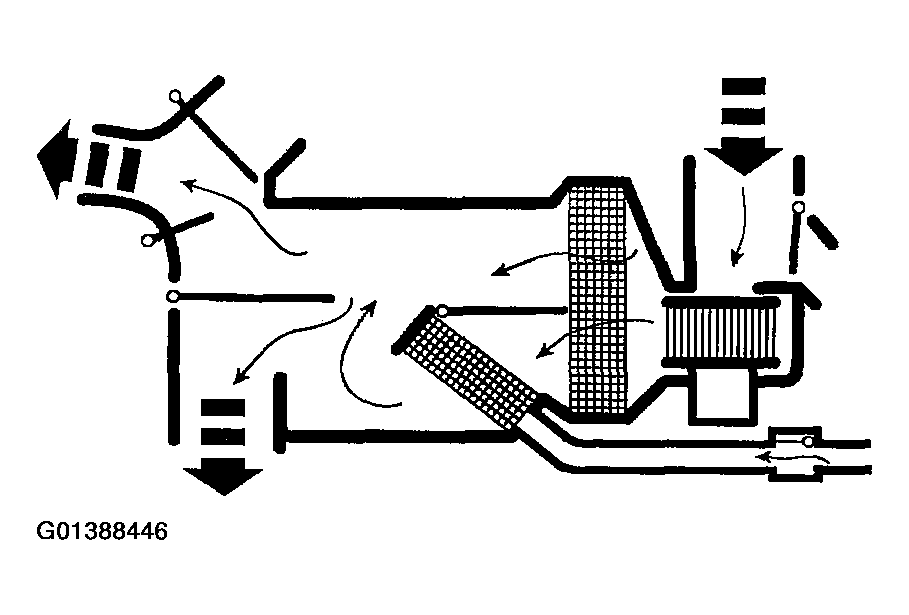

Fig 1: Identifying System Air Flow - Panel/Floor

Courtesy of FORD MOTOR CO.

When PANEL/FLOOR is selected:

The air inlet blend door is set at no vacuum, blocking the recirculation passage and allowing outside air.
The footwell blend door is in the full vacuum position, and the panel airflow door is in the full vacuum position allowing airflow to blend between the panel vents and the footwell ducts.
The defrost airflow door is at full vacuum, closing off airflow to the windshield defroster hose nozzle and directing airflow to the heater outlet footwell duct.
The A/C compressor is enabled when PANEL/FLOOR is selected.
The blower motor is on.
