Spring Lock Coupling: Disconnect

WARNING: This page is about a different car, the 2003 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant. Refer to DISCHARGING AND RECOVERY .
Remove the A/C tube lock coupling clip (19E746).

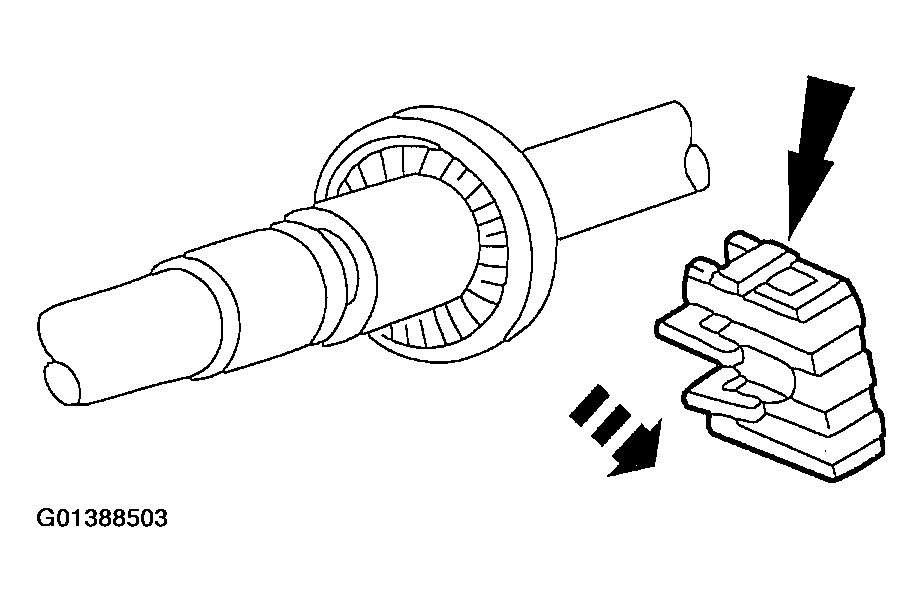

Fig 1: Removing A/C Tube Lock Coupling Clip (19E746)
Courtesy of FORD MOTOR CO.
Using the special tool, disengage the spring lock coupling fittings.

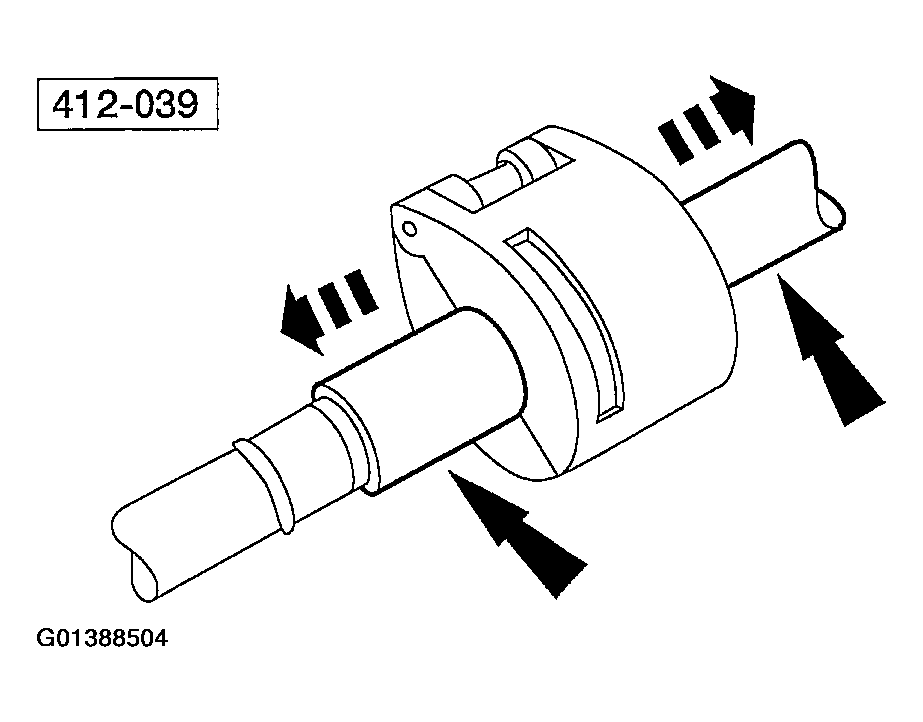

Fig 2: Disengaging Spring Lock Coupling Fittings
Courtesy of FORD MOTOR CO.

CAUTION: Do not use metal tools to remove the O-ring seals. They can cause axial scratches across the O-ring seal grooves resulting in refrigerant leaks.

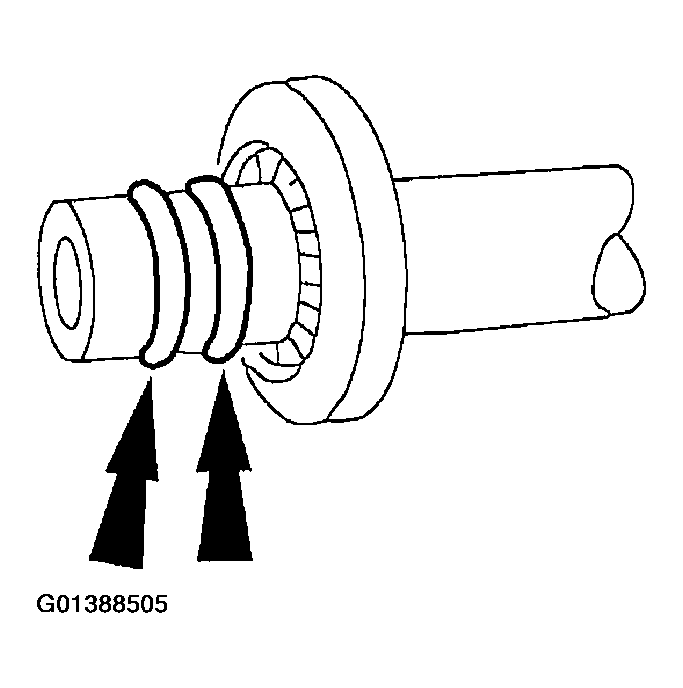

Fig 3: Removing O-Ring Seals With Non-Metallic Tool

Courtesy of FORD MOTOR CO.

Remove the O-ring seals with a non-metallic tool.

CAUTION: Do not use a screwdriver or similar tool to remove the A/C tube lock coupling spring; this can cause axial scratches across the O-ring seal grooves resulting in refrigerant leaks.

Remove the A/C tube lock coupling spring with a small hooked wire.

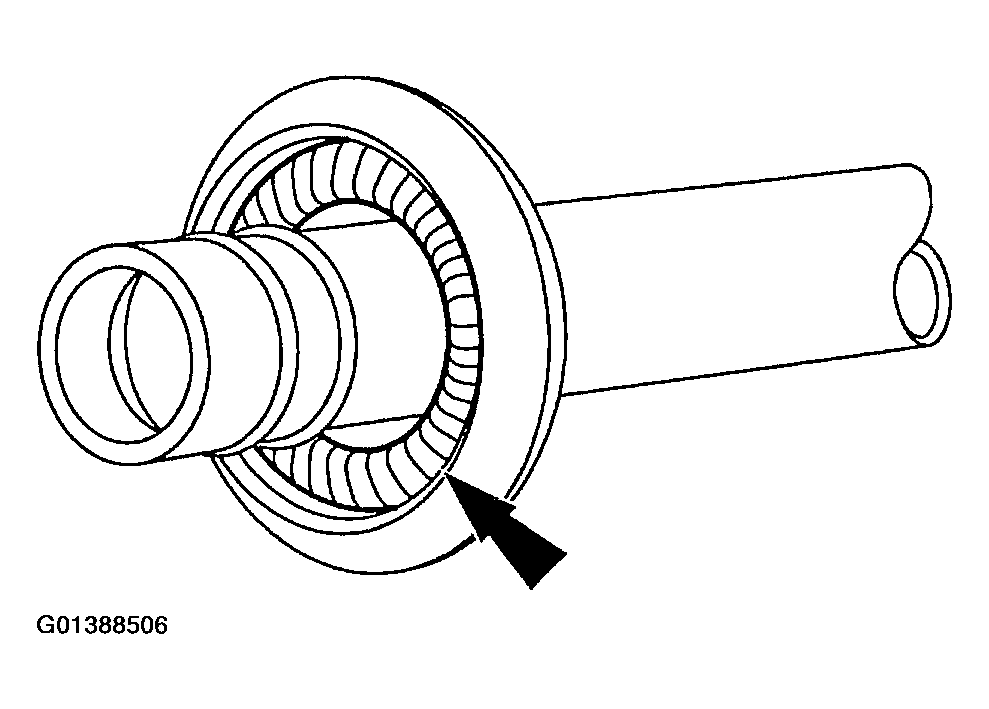

Fig 4: Removing A/C Tube Lock Coupling Spring With Small Hooked Wire

Courtesy of FORD MOTOR CO.
